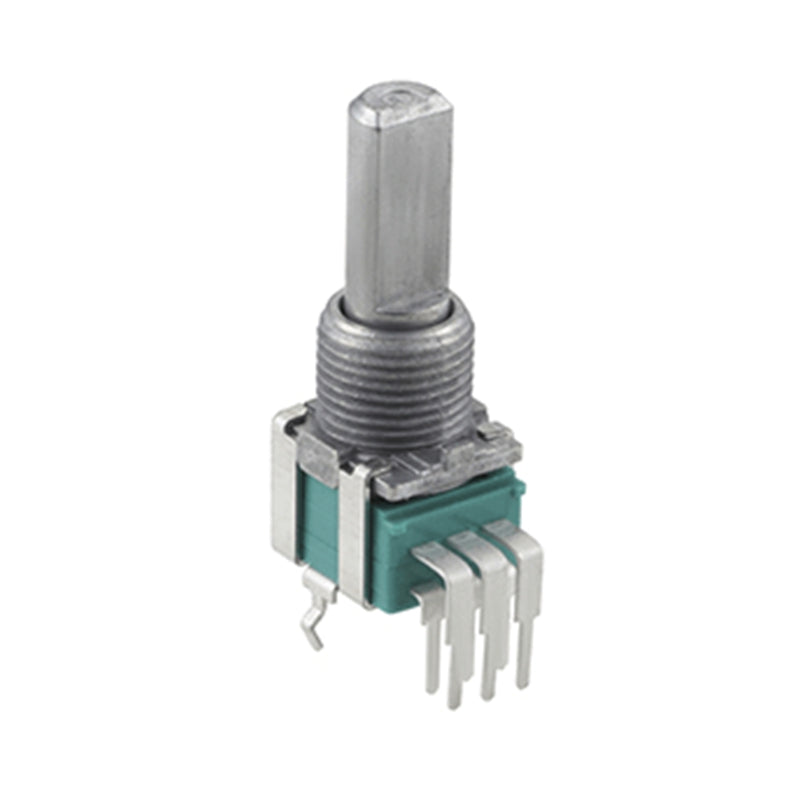

Volume Potentiometer B10K 4pcs Japanese original ALPS 09 Vertical Double with Midpoint  Handle Length 15MM HIFI DIY



Qty:4pcs / lot

Applications

Adjust the volume of audio inputs, the first choice for HIFI amplifier.



Features

ALPS potentiometer left and right consistency is very good, and after long-term used, it is not easy to produce noise, and life is much longer than ordinary cheap commercial potentiometer, prolonged use of performance is very stable. Because sound reproduction is good, it is used for high-end audio amplifier or preamplifier devices.



Product Specifications

1. Resistors: double

2. Install direction: Vertical type

3. The shape of the operation: horizontal axis

4. Length of Operation: 15mm

5. Central location: Yes

6. Total resistance: 10K ohms

7. Resistance taper: 1B

8. Operating temperature range: -10  to + 70 degree Celsius

9. Total resistance allowable error: ± 20%

10. Rated power: 0.05W

11. Maximum operating voltage: 50V AC, 10V DC

12. Residual resistance: 50Ω max.

13. Insulation resistance: 100MΩ min 250V DC.

14. Withstanding Voltage: 300V AC for 1 minute

15. Total rotational angle: 300 ± 5 °

16. Rotational torque: 2 to 25mN • m

17. Terminal stopper strength: 0.5N • m

18. Push-pull strength: 80N max.

19. Vibration-resistant performance: 10 to 55 to 10Hz / min, full amplitude 1.5mm, 3 directions XYZ each 2 hours

20. Hand soldering: 350 degree Celsius max 3s max.

21. Dip soldering: 260 ± 5 degree Celsius, 5 ± 1s

22. Operating life: 15,000 cycles

23. The cold can: -20 ± 2degree Celsius for 96h

24. The heat resistance: 70 ± 2 degree Celsius for 96h

25. Moisture performance: 40 ± 2degree Celsius, 90 to 95% RH for 96h





ALPS 09L
