IWISTAO 3 Way Crossover 1000W 0.8KHZ 3.5KHZ Professional for 12/15-inch Speaker HIFI Audio
88 In stock
HIFI Crossovers Passive
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

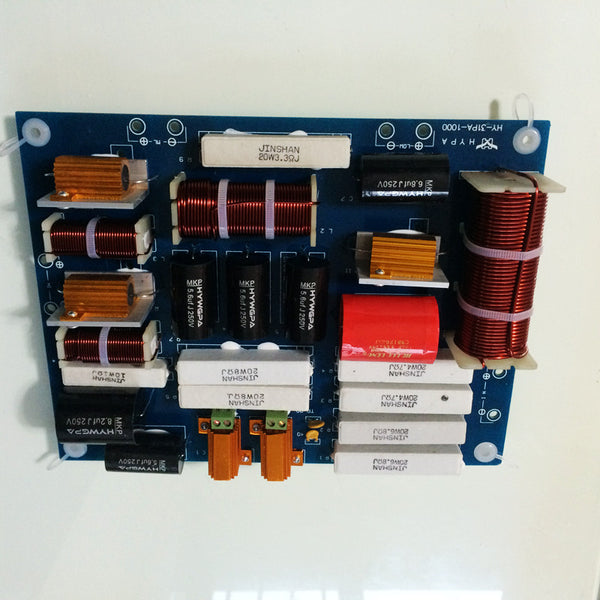

IWISTAO High power Crossover 1000W Professional 3 Way Crossover-point 0.8KHZ 3.5KHZfor 12-15-inch 3-Way Speaker HIFI Audio
Model No: WHF-Cr1100W
It is a high-power crossover of 1000W , its Crossover ponit: 0.8 kHZ 12db / oct for low frequency , 0.8 KHZ-3.5KHZ 12db / oct for midrang, 3.5KHZ 18db / oct for tremble.
For stereo speaker cabinet, you need buy 2 pcs 3-way crossovers.
1. With high quality MKP capacitors.
2. 100% oxygen-free copper inductors and ceramic resistance.
3. Adopted specially designed high-power aluminum resistance resistance, better heat dissipation, make it be longer life.
4. Diameter of bass inductor is 1.5MM, and diameter of treble inductance is 1.2MM, crossover point is accurate.
5. Adopted dual treble protection system.
1. Power: 1000W
2. Applicable Impedance: 4-8 ohms
3. Crossover ponit: 0.8 kHZ 12db / oct for low frequency , 0.8 KHZ-3.5KHZ 12db / oct for midrang, 3.5KHZ 18db / oct for tremble
4. Applicable Speaker: 12-15 inches 3 ways speaker.
5. Connection port definition: IN--input, LOW--bass, ML-- midrang, HI--treble
6. Size: 173mm * 226mm
7. Net weight: 1.1Kg
High Power Crossover 1000W Professional 3Way x 1pc
