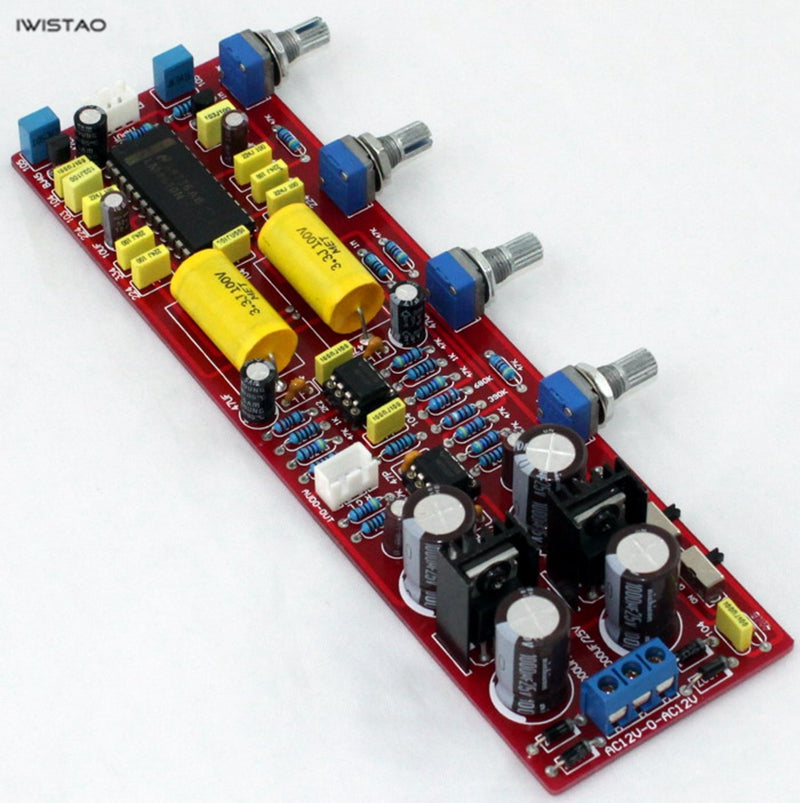

IWISTAO Tone Adjustment Board LM4610 Bass Treble Balance Volume Control Replace LM1036



Model No: WTPA-LM4610



The LM4610 is another HI-FI preamplifier IC introduced by the US NS company after the LM1036. It is an ideal replacement for the LM1036. It also uses DC voltage to adjust the volume, treble, bass and balance of the two channels. The IC also adds 3D sound field stretch adjustment to the LM1036, which also features an equal loudness switch to compensate for the human ear characteristic at low volume.



Features

1. Adopt original LM4610N+NE5532

2. Electrolytic capacitor signal main circuit adopts Taiwan famous brand, main filter capacitor adopts Nikon special electrolytic capacitor capacity 4×10000UF, full-wave bridge rectifier circuit to ensure strong and continuous power support.

3. The five-ring metal resistor is used for the resistor. The main circuit adopts a five-ring metal film resistor with an accuracy of ±1% to ensure a good signal-to-noise ratio.

4. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current. First-class PCB quality.

5. With fully enclosed dustproof potentiometer, the performance is more stable and more durable than ordinary potentiometer!

6. Coupling capacitor with MET 3.3UF/100V

7. Switch S1 is a 3D sound switch and S2 is an equal loudness switch.



WTPA-LM4610(2)l2WTPA-LM4610(2)l3WTPA-LM4610(2)l4



Specifications

1. PCB size: 177*52MM

2. Power supply voltage: AC12V-0-AC12V or AC15V-0-15V

3. Potentiometer distance: left to right 35mm*35mm*35mm

4. Potentiometer function: bass, treble, balance, volume.



Note: we provide you some items and components for your DIY. If you have enough capablities for circuit-reading, electronical components knowledge, assembling, soldering and problem-solving, you can buy them to enjoy DIY. If not, please don't buy them. We only provide limit technology support in this individial items itself.
