IWISTAO HIFI Empty Speaker Cabinet Kits Labyrinth Structure High-density Fibreboard for Full Range

7 In stock

Empty Wooden Cabinets

IWISTAO HIFI Speaker Empty Cabinet Kits Labyrinth Structure with High-density Fibreboard for 2.5—4 Inches Full Range Speaker Unit   Model No: WHFSC-K2T4   The kits require that buyers are able to polish and assemble, and have strong practical ability. Polished and assembled may be more trouble, if you don’t have the abilities...
$78.90 $69.90
Save $9.00
Click to refer to Shipping Rate
+
-
$69.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

IWISTAO HIFI Speaker Empty Cabinet Kits Labyrinth Structure with High-density Fibreboard for 2.5—4 Inches Full Range Speaker Unit



Model No: WHFSC-K2T4



The kits require that buyers are able to polish and assemble, and have strong practical ability. Polished and assembled may be more trouble, if you don’t have the abilities of above and problem-solving, please don’t buy it, thanks!



Speaker cabinet adopt double back guide pipe, its return passage measured 1.6 meters, and sound quality is relatively pure. Its panel can be replaced if you have spares. This speaker cabinet kits support 2.5—4 inches full range speaker.



All kits Material: plate is HDF rather than MDF; fasteners are made of industry 8.8 level black hex bolts, lock nuts are made of Brass, fastening nuts of panel is made of steel-plated color zinc. Accessories excluded terminals and wiring.

WHFSC-K2T4(IL)



Empty cabinet after assembled

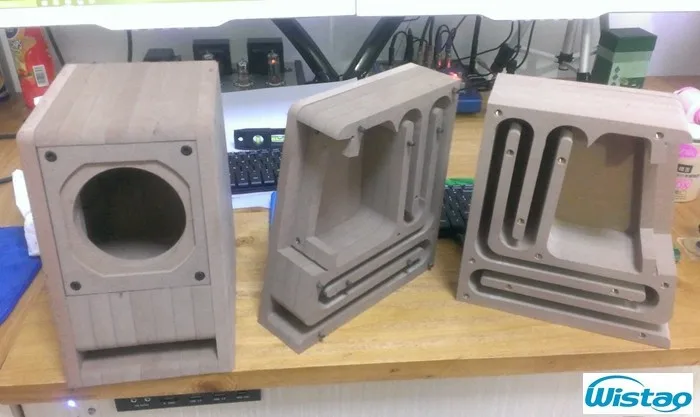

WHFSC-K2T4(I16l)





About cutting-holes



Kit included a pair of panels (include to cut holes, according to buyers’ cutting-hole of speaker parameters; buyers please leave the details for cutting-holes, otherwise as default size of the hole.)



Hole of connecting wire terminal: 8 mm at the back (need to drill holes in the terminal, please leave message also).



Assembly steps

1. Please check if the shipments are completed, and placed separately firstly.



WHFSC-K2T4(PL)



WHFSC-K2T4(p3l)



2. Use a steel saw blade (or a saw) to cut the inner ribs (waste) from the plywood sheet down, or rip them off, then use a chisel, rasp or sanding wood it that left over burrs.

WHFSC-K2T4(pr11l)



WHFSC-K2T4(pr1l)



3. Install the connecting wire terminal (If there are not holes, please drill hole to fit terminals), prepare to soldering cables are not shorter than 55 cm, and soldering it to the terminal with spare.



WHFSC-K2T4(A18L)



4. Start assembling them with. Black hex bolts, lock nuts

WHFSC-K2T4(A4l)

5. After assembled, polish and smooth the external surface.



6. Install the panel, and soldering the cables to speaker units.

WHFSC-K2T4(A21)



Note: The high-density surface is smooth, seamless laminated without glue, glue also has a thickness of multi-layer stack will increase a few millimeters that lead to the panel will become small, screw holes will not be reached. At the same time, please avoid moisture.



Cabinet size (it can be installed 4 inch full-range speaker maximum):

1. Height: 240mm

2. Up depth: 175mm

3. Down deep: 220mm

4. Width of 3 inches speaker unit: 138mm

5. Width of 4 inches speaker unit : 156mm

6. Panel:

a) 3-inch: 108 * 137,

b) 4-inch: 126 * 137, we recommend to buy 4 inches cabinet that  is backward compatible.



Packing list (for example, a pair of 4-inch speaker cabinet attachments,)



1. M5 * 70mm black hex Bolts: 48pcs

2. M5 * 30 panel hexagon bolts: 8pcs,

3. Internal splint: 8pcs (according to cabinet’s size).

4. Lock Board: 2pcs (embedded copper nut 24),

5. Side board 1: 4 pcs (inline eight steel nuts),

6. Side board 2: 4 pcs

7. Panel: 2pcs (according to the buyer speaker parameters to cut holes, buyers please leave the details for cutting-holes, otherwise as default size of the hole.)



WHFSC-K2T4(p3l)



Applications by DIY



WHFSC-K2T4(A01l)

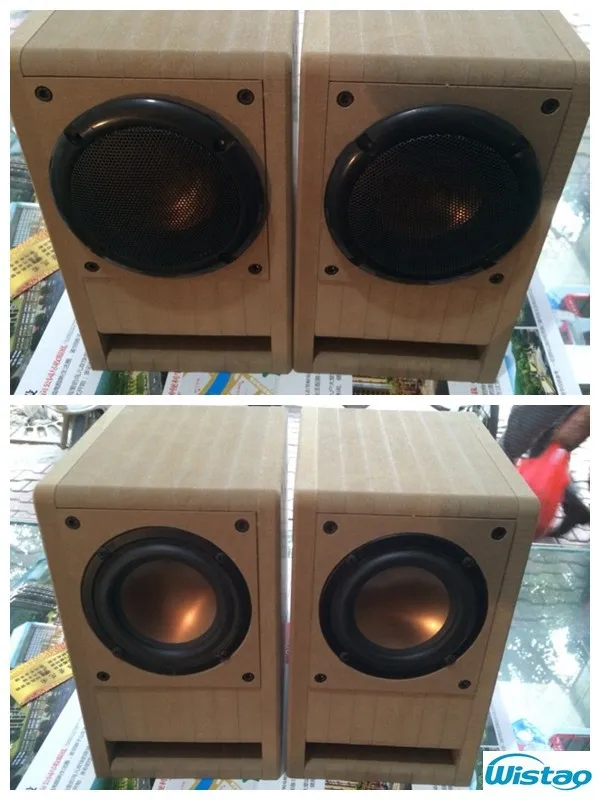

WHFSC-K2T4(A6L)

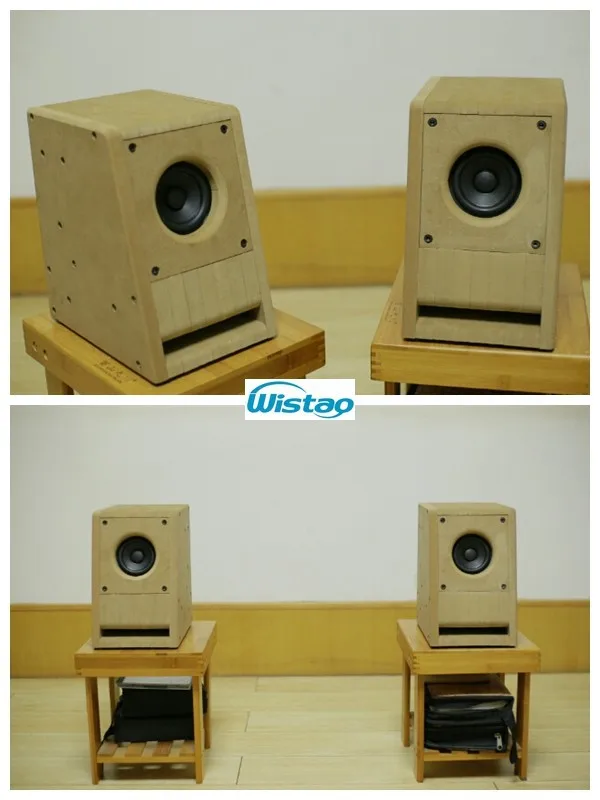

WHFSC-K2T4(A8L)



WHFSC-K2T4(A24L)

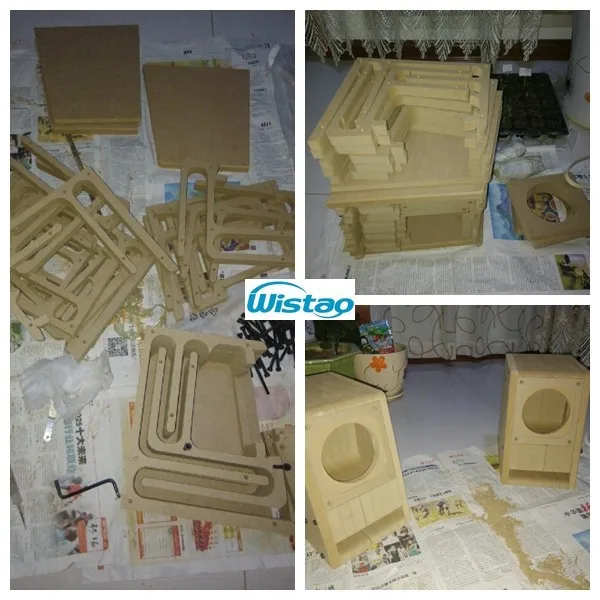

WHFSC-K2T4(A28L)



WHFSC-K2T4(A364L)

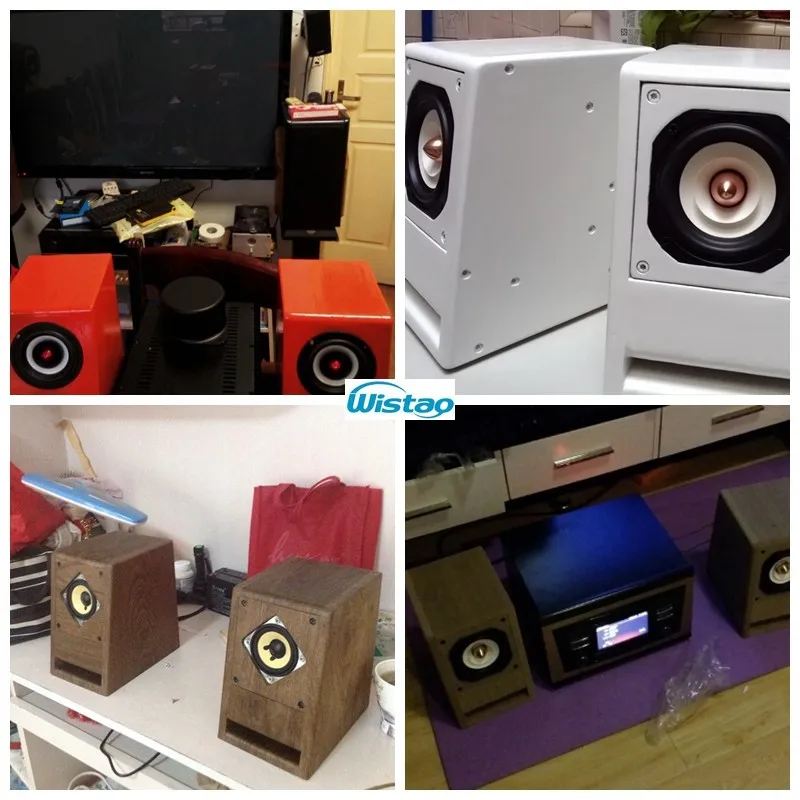

WHFSC-K2T4(A381L)



WHFSC-K2T4
