IWISTAO HIFI Bluetooth Power Amplifier 2x25W Class D Bluetooth 4.0 CSR8635 CD Level Music

100 In stock

HIFI Bluetooth Audio Amplifier

IWISTAOHIFI Bluetooth Digital Power Amplifier Wireless 2 x 25W Class D Bluetooth 4.0EDR RCA Aluminum Casing (Model No: WPAM2201) Features 1. 2 * 25W stereo circuit design; advanced aluminum enclosure, matte oxidation process; 2. Adopt customized advance air core inductors to improve the LC filter of digital amplifier, which is...
$108.00 $89.00
Save $19.00
Click to refer to Shipping Rate
+
-
$89.00
Wishlist

To add this product to your wish list you must Sign In or Create an account

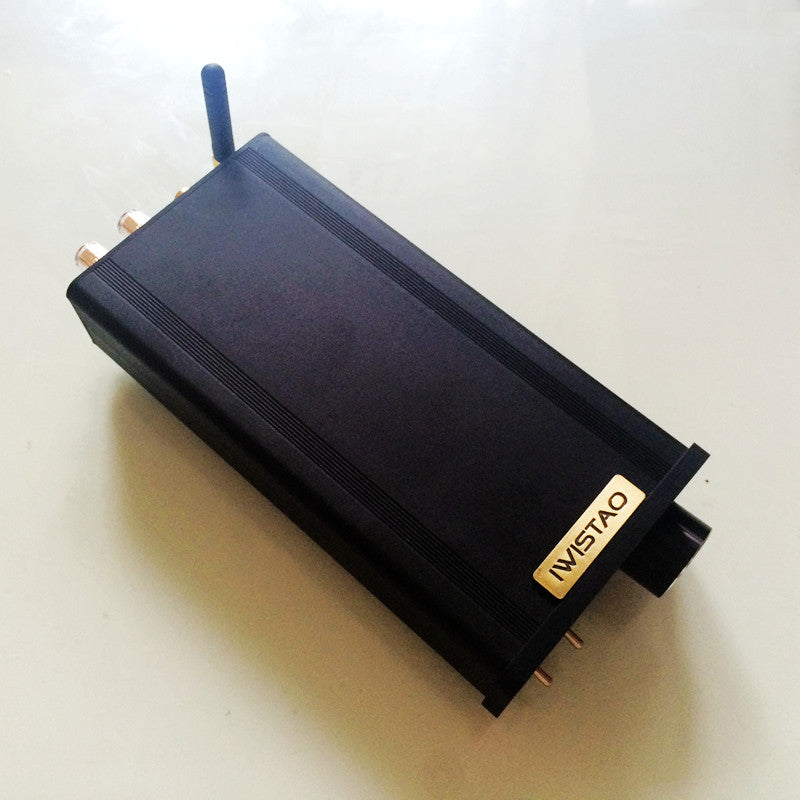

IWISTAOHIFI Bluetooth Digital Power Amplifier Wireless 2 x 25W Class D Bluetooth 4.0EDR RCA Aluminum Casing (Model No: WPAM2201)




Features

1. 2 * 25W stereo circuit design; advanced aluminum enclosure, matte oxidation process;

2. Adopt customized advance air core inductors to improve the LC filter of digital amplifier, which is the most important aspects for digital amplifier;

3. Adopt 3300uf BC-048 filter capacitor as a reservoir with internal shun in order to meet the power needs bursting to solve problem of partial handsome voice for switching power supply;

4. Built-in CSR8635 Bluetooth module, that adoptBluetoth 4.0 technology. And you can enjoy CD level music once connected with you smart phone and play lossless traces, like as WAV, FLAC, AFAC, APE format music...

5. Built-in speaker protection and power-delay circuit, so there was no impact sound switch and protect your valuable speakers;

6. Start indicator is displayed; truly full of HIFI, PCBA with STM processing, and adopt excellent parts and components.



IWISTAO HIFI Bluetooth Power Amplifier 2x25W Class D Bluetooth 4.0 CSR8635 CD Level Music from IWISTAO HIFI AUDIO on Vimeo.





Product Specifications

HIFI Bluetooth digital power amplifier

1. Signal input: Bluetooth 4.0 + EDR; RCA line input
2. Work type of amplifier: Class D
3. Working efficiency: about 88%
4. Quiescent current: 50mA
5. Rated output power: 2 * 25W
6. Frequency response: 20Hz to 20KHz
7. THD: 0.09% (@ 1W)
8. Output impedance: 4 / 8Ω
9. Working voltage: DC9V to DC15V
10. Recommended supply voltage: DC15V
11. Size (L * W * H): 178mm * 88mm * 38mm
12. Net weight: 0.4kg
13. Gross weight: 1.2kg (including power adapter)

Power Adapter

1. Input: AC 100V ~ 240V 1.5A / 50—60Hz
2. Output: DC 14.5V 4.5A

Package List

1pc x HIFI Bluetooth Power Amplifier
1pc x Power adapter
1pc x Antenna
