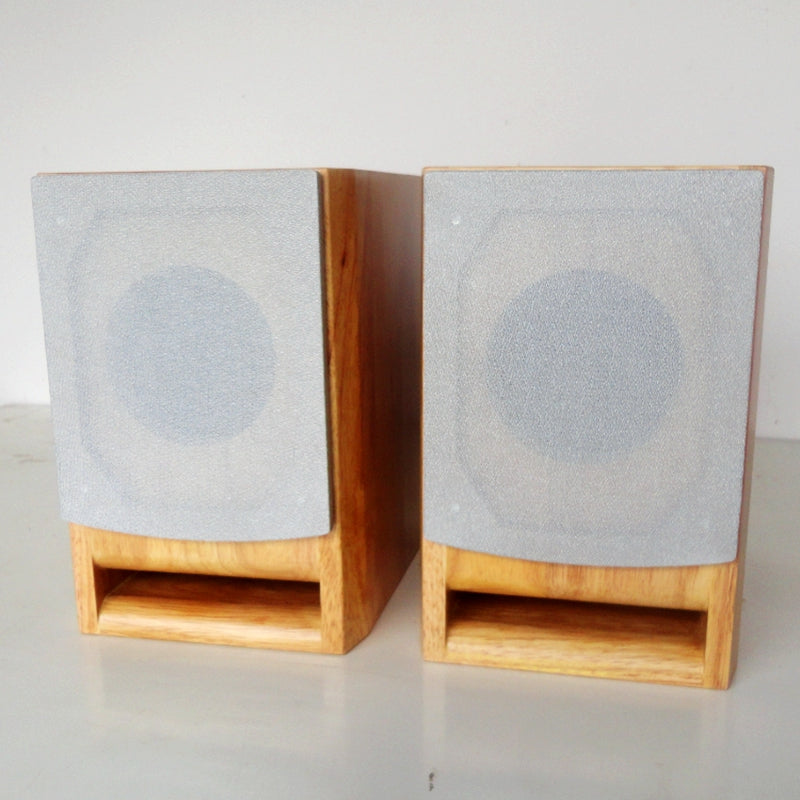

IWISTAO HIFI 3 to 6.5 inch Full Range Speaker Empty Cabinet 1 Pair Solid Wooden Front Labyrinth Guide Hole DIY Audio

Model No: WHFSC-FR326C

Please note: the color of grill cloth is brown now.

It is a labyrinth finished full-range empty speaker enclosure by handmade that made of rubber solid wood. As the rubber wood plate is hard, and. Please be sure to drill the screw before drilling when the speaker unit is installed, generally you can drill the guide hole from M2.5 to M3.

Features

1. Material: rubber wood fingerboard, coated Nippon Environmental Protection PU transparent paint, matt effect.

2. The overall structure of the external enclosure is adopted and the dovetail bolting process is adopted.

3. Color: natural wood color, transparent varnish original wood color. (About the color difference: The original plate itself will have a color difference, the display and the brightness of the picture will have a little color difference, if you mind it, please do not buy)

Specifications

1. The back of the hole: 75mm * 55mm square junction box.

2. Through hole cut in the front:

a) 3-3.5 inch enclosure: diameter 72mm
b) 4 inch enclosure: 94mm diameter
c) 5 inch enclosure: diameter 122mm
d) 6.5 inch enclosure: 144mm (through hole), 168mm (countersunk), 4mm (countersunk depth)

3. Enclosure size

a) 3-3.5 inch enclosure (W*H*D): 142mm*210mm*180mm, board thickness 16mm, panel width 132mm
b) 4 inch enclosure (W*H*D): 166mm*250mm*220mm, plate thickness 18mm, panel width 152mm
c) 5 inch enclosure (W*H*D): 192mm*270mm*220mm, board thickness 18mm, panel width 175mm
d) 6.5 inch enclosure (W*H*D): 222mm*300mm*270mm, plate thickness 18mm, panel width 205mm

Note: If you need to change the countersunk of front panel , please provide drawings, and its cost 5 US dollars and add the button of "cut countersunk cost" to the cart with the item, then pay them.

Applications
