IWISTAO Car HIFI 3 Way Crossover Max 200W Crossover-point 500 Hz/3.5 KHz 4-8Ω Speaker Unit
298 In stock
HIFI Passive Crossover
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

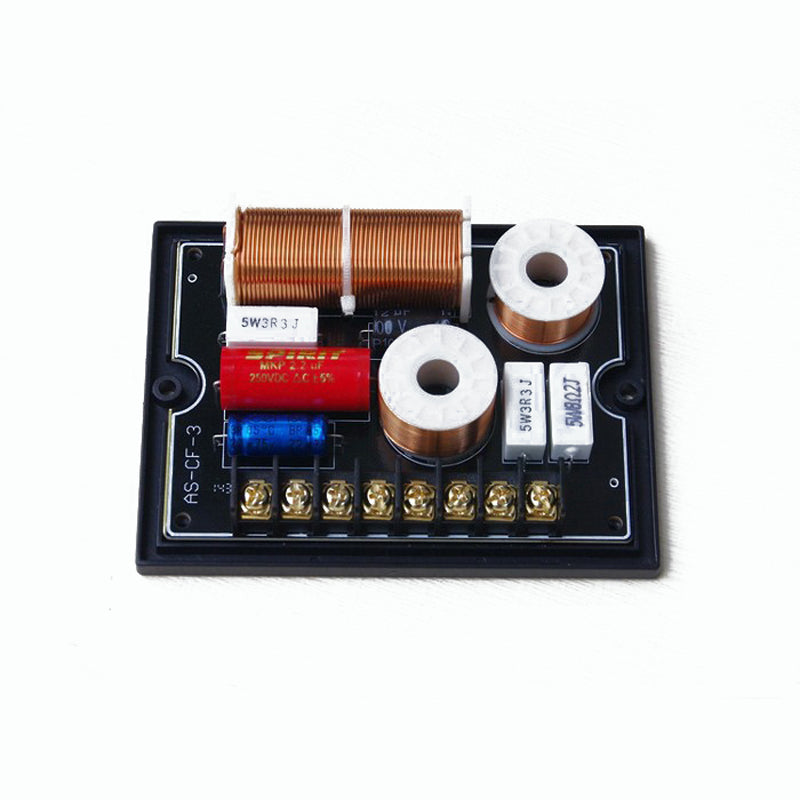

IWISTAO Car HIFI Three Way Crossover Max Power 200W Crossover-point 500 Hz/ 3.5 KHz 4-8ohm Speakers Unit
Model No: WHF-3Cr3500
This is a HIFI 3 way crossover for upgrading car audio or DIY your speaker cabinet. Its inductors mining is 5N copper wire wound with low resistance and low copper loss. Resistor adopt high-frequency magnetic cement one, which can eliminate high attenuation by the crossover, also high frequency capacitor all use MKP metal film one.
Those persons think about how to install 3 way crossovers into a car, we believe that they are more persistent for music. The crossover is designed and developed in accordance with this concept. For how to arrange three-way speaker, we also had done a lot of experiments and share you some experience.
Recommendations are as follows:
1. It is better that tweeters is installed in front of glass of the car or below the A-pillar.
2. Diameter of middle frequency speaker is not too big, 2-inch or 3-inch one is enough, but sound pressure of 4-inch speaker is too large and will suppress the effect of bass speaker, unless you install a large subwoofer. Middle frequency speaker cannot be installed in the back of car, but it can only be installed in the front or side of car, otherwise its sound will be strange.
3. Bass is no phase sense, it can be installed anywhere, the position is not important, it is ok if the effect is good.
PS: 1pc crossover for 1pc HIFI 3-way speaker cabinet.
Connection Wire Diagram with Amplifier and Speaker Unit
(Please solder the wire with correct polarity)
+ IN: Amplifier Positive
- IN: Amplifier Negtive
+W: Woofer Positive
- W: Woofer Negtive
+M: Middle Frequency Speaker Positive
-M: Middle Frequency Speaker Negtive
+T: Tremble Positive
-T: Tremble Negtive
Product Specifications
1. Maximum Power: 200W
2. Suitable impedance of speaker unit: 4-8 Ω
3. Filter characteristics: 12 dB / otc
4. Crossover point: 500Hz / 3.5 KHz
5. Dimensions (L * W * H): 125mm * 95mm * 35mm
6. Net Weight: 0.4 KG
