IWISTAO 6N3 Vacuum Tube Preamplifier Finished Board 6Z4 Pure Tube Rectifier IHIF Including Toroidal Transformer DIY



Model No: WVA-PA6N35560



This is a finished vacuum tube preamplifier board with standard SRPP circuit. The preamplifier tube uses 6N3, and the rectifier uses 6Z4 tube rectifier. The background noise is better controlled, making sound better. The board is debugging-free, simple to make and design is reasonable, the noise is relatively low, also there is no impulse current at startup, and a speaker protection circuit is added.



1. Finished Board

1WVA-PAB6N35560(1)1l11WVA-PAB6N35560(1)1l31WVA-PAB6N35560(1)1l5

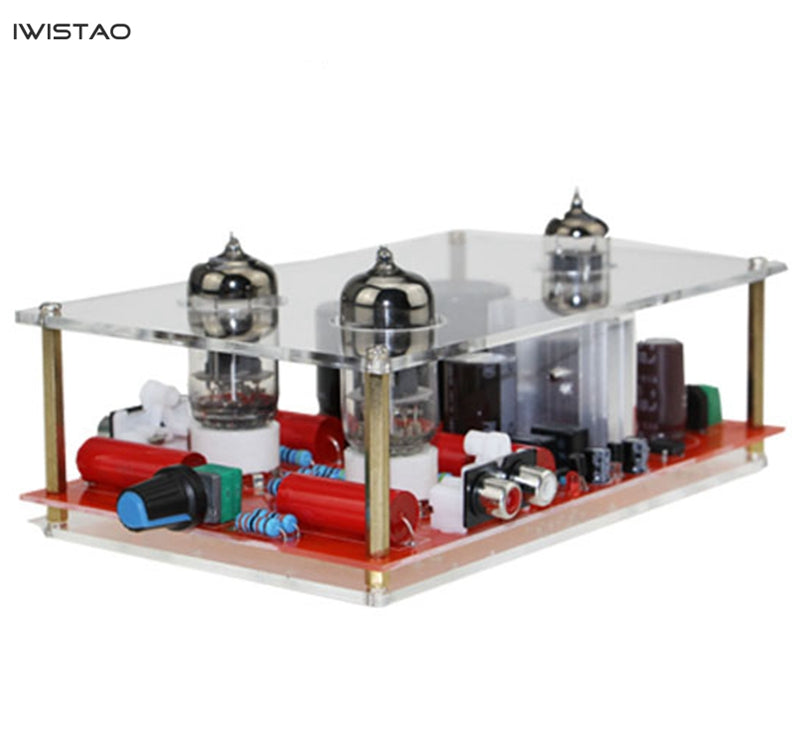

2. With Acrylic Plates

1WVA-PAB6N35560(1)1l2



Due to the high input impedance of vacuum tube, it is necessary that to install it in a metal casing and grounded . This can shield unnecessary interference noises. You can simply take an iron casing or something; or connect a wire to the potentiometer handle and grounded.



Sound of the board is warm and smooth, high frequency is soft and not harsh, and human voice is intimate, sweet and smooth. The female voice is sweet, delicate, and high sound resolution.



Specification

1. Working voltage: AC220V/50~60Hz

2. Size (W * H * D): 168mm * 108mm * 72mm (including tube height)

3. Weight: about 2KG,

4. Packing list

a. Finished board x1,

b. Vacuum tube 6N3x2 (6N3 can be directly replaced by 5570 and 6H3N)

c. Vacuum Tube 6Z4x1

d. 40W toroidal transformer x1

e. Power cord x1



1WVA-PAB6N35560(1)1l

1WVA-PAB6N35560(1)1l4

Note:

1. We provide you some items and components for your DIY. If you have enough capablities for circuit-reading, electronical components knowledge, assembling, soldering and problem-solving, you can buy them to enjoy DIY. If not, please don\'t buy them. We only provide limit technology support in this individial items itself.

2. The capacitances of the PCBA board may be slightly different due to lot by lot incoming, however, we can guarantee that the sound quality will not be affected. All pictures are for reference only. If you mind the term above, please don’t buy it. And if you buy, it means you accept the term above.
