Tube Amplifier Output Transformer

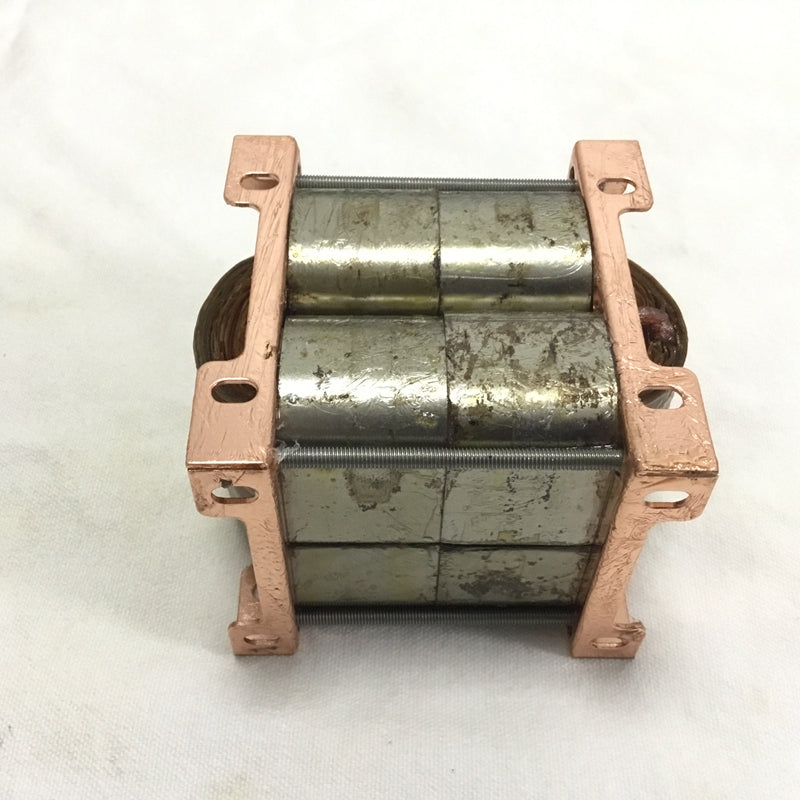

300B Output Transformer C Type Single-ended British Amorphous 8C Advanced Core Pr 3.5K Se 0-4-8 ohms
Model No: WVTR-OT300B(8C)
This 300B single-ended output transformer uses British amorphous high-grade C-type iron core that has a unique advantage, especially when he static operating point is 80ma or below , it can give full play to the advantages of the output transformer. After actual measurement and listening, the voice is very vivid, clear, low-frequency tension is very balanced in three bands, excellent permeability and atmosphere feeling
Using high-quality enameled wire, lamination process, CNC drying, vacuum impregnation, well-designed 8C structure, to design to a perfect coefficient.
It is a better choice to tube amplifier audiophiles.
PS: A stereo tube amplifier need 2 pcs output transformers.
1. Power: 8W
2. Material: British amorphous 8C advanced core
3. Primary impedance: 3.5k ohms (80-100ma)
4. Secondary impedance: 0-4-8 ohms (16 ohm output can be ordered)
5 Inductance: 16-17H
6. Bandwidth: 20HZ- 35KHZ(-1DB)
7. Size(W*H*D): 86*88*75mm
8. Weight: 1.9kg/pc
Application with the output transformer
