Vacuum Tube FU50 1pc Inventory Product Small 300B for Tube Amplifier high Reliability

198 In stock

Tube

To add this product to your wish list you must Sign In or Create an account

Vacuum Tube FU50 1pc Inventory Product Small 300B for Tube Amplifier Headphone Amp High Reliability      Model No: FU50     Pins diagram   Type: Parathermal cathode beam pentode   Main use: for high frequency oscillation and power amplification (Basic data) Filament voltage (Uf) = 12.6V; Filament current (If)...
$11.90
Click to refer to Shipping Rate
+
-
$11.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

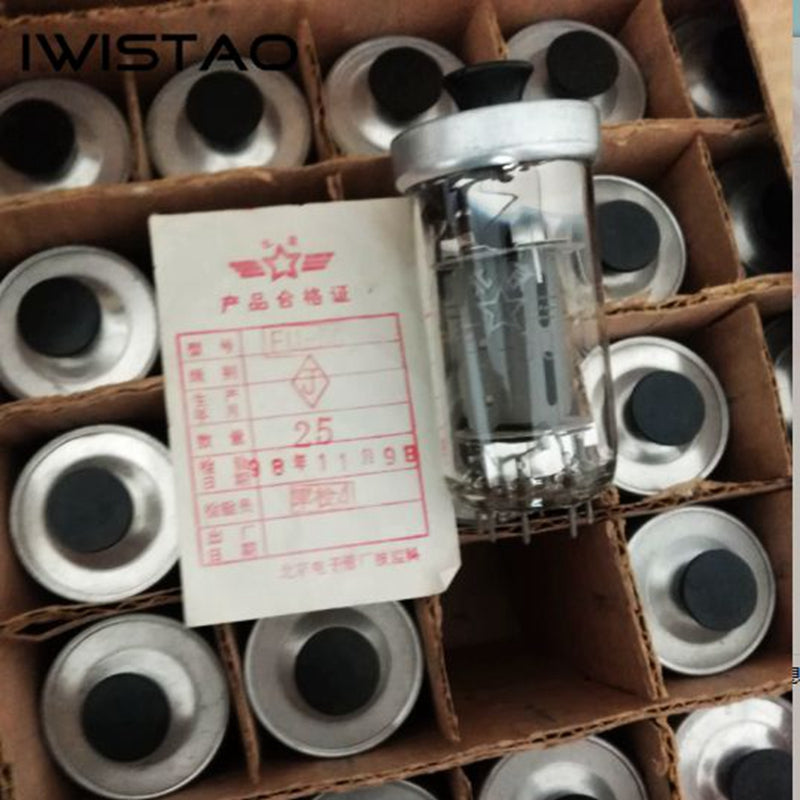

Vacuum Tube FU50 1pc Inventory Product Small 300B for Tube Amplifier Headphone Amp High Reliability





Model No: FU50



FU50(a1)l



fu50

Pins diagram



fu50p

Type: Parathermal cathode beam pentode



Main use: for high frequency oscillation and power amplification

(Basic data)


Filament voltage (Uf) = 12.6V;
Filament current (If) = 0.6 ~ 0.8A;
Anode voltage (Ua) = 800V;
Second gate voltage (Ug2) = 250V;
The third gate voltage (Ug3) = 0V;
The first gate operation accounts for a bias voltage of 1 (Ug1) - 55 ~ -25V;
The first gate reverse current 2 (-Ig1) ≤ 15μA;
The third gate reverse current 2 (-Ig3) ≤ 50 μA;
Transconductance 3 (S) = 3 ~ 5.2 mA / V;
Leakage current between the filament and the cathode 4 (Ifk) ≤ 100μA;
The second gate current 5 (Ig2) ≤ 7 mA;
Output power 6 (Po) ≥ 50W;
Output power 6 ≥ 40W when the filament voltage is 10.8V;
Life time 7 (T) ≥ 500h. (Life boundary conditions) output power (Po) ≥ 40W;
Maximum height (excluding the insertion and removal handle) (Hmax) = 93.5mm;
The maximum diameter (Dmax) = 45.3mm;
Maximum weight (Gmax) = 100g.
Note:
1Ia=50mA;
2Uf=14.5V, Ug3=-200V, Rt=350Ω, Rg1≤0.1MΩ, when Ig2=15mA, 3Ia=50mA, △Ug1=5V;
4Uf=14.5V, Ufk=±200 hours;
5Ia=50mA, the second point voltage on g2 is 150V;
6Ug1=-100V, Ia≤150mA, Ig1≤8.5mA, Ig2≤20mA, Ug1~=135V;
7Ia=130mA, Ufk=200V, Ig1≤9mA.



(Electrode Capacitance)


Input capacitance (Cin) = 13 ~ 15pF;
Output capacitance (Cout) = 8 ~ 11pF;
The transition capacitance (Cag) ≤ 0.1pF.

(Limit Use Data)


Maximum filament voltage (Ufmax) = 13.9V;
Minimum filament voltage (Ufmin) = 11.3V;
Maximum anode voltage (Uamax) = 1kV;
Maximum second gate voltage (Ug2max) = 250V;
Maximum anode dissipation power (Pamax) = 40W;
Maximum second gate dissipation power (Pg2max) = 5W;
Maximum first gate dissipation power (Pg1max) = 1W;
Maximum cathode current (Ikmax) = 230 mA;
