Vacuum Tube FU-5 805 Shuguang Replace GL805 High Reliability Precise HIFI Audio



Model No: FU-15

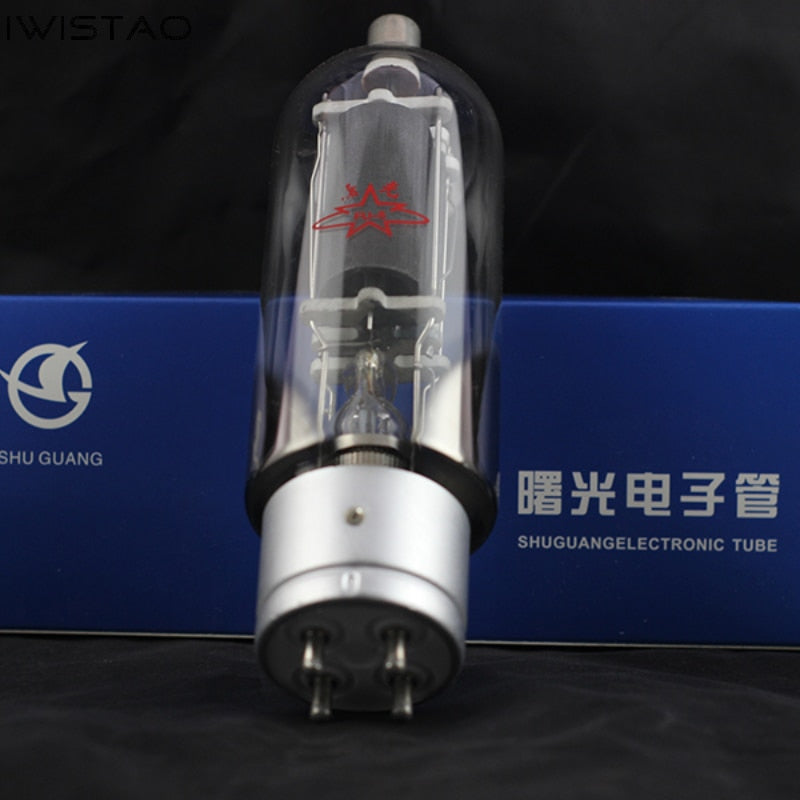

Vacuum tube FU-5 (805) is a direct-heated thorium-tungsten cathode triode, it can be used for class B, A-F, R-F power amplification, class C R-F power amplification and high-frequency oscillation.





FU-15(805) is similar to GL-805 and can be used interchangeably.









Filament heating





Uf ……………………10 V

If………………………… 3.25 A



Interelectrode capacitance

Input capacitance……………………8.5 PF

Output capacitance……………………10.5 PF

Trans-circuit capacitance……………………6.5 PF





Limit rating





Anode voltage……………………1500 V

Anode dissipation power………………125 W

Operating frequency and anode voltage

When the working frequency is above 30MC, the anode voltage and anode input power will be adjusted down according to the following table in due course:



Frequency (MC) Anode voltage and anode input power



B pole electrode C class telephone anode modulation telegraph

30 100% 100%

45 90% 82%

80 71% 55%





Recommended working status (reference value)





Class B A-F power amplifier (two tubes) limit value

Ua……………………1250 1500 1500 V

Ia(max.sig.per tube)……………210 mA

Pa(in)(max.sig.per tube) z……315 W

Pa (per tube) …………………… 125 W

Ug………………………………16 V

üg(pk)……………………235 280 V

Ia(0)……………………148 84 mA

Ia(max.sig)……………500 600 mA

Pd……………………6 7 W

RL(a-a)……………………6.7 8.2 kΩ

Pout(max.sig)…………300 370 W





Class B R-F power amplifier





(The maximum modulation coefficient of each tube is 1.0 under the carrier condition)

Limit value

Ua………………1250 1500 1500 V

Ug…………………………-10 V

Ia………………135 115 150 mA

Pa(in)………………………………185 W

üg(pk)…………70 70 V

Ig………………15 15 mA

Pd………………11 7.5 W

Pout………………55 57.5 W





Class C R-F power amplification and oscillation (anode modulation)





(The maximum modulation coefficient of each tube is 1.0 under the carrier condition)

Limit value

Ua………………1000 1250 1250 V

Ug………………-155 -160 -500 V

Ia………………160 160 175 mA

Ig………………60 60 70 mA

Pa(in)………………………………220 W

Pa………………………………85 W

üg(pk)…………295 300 V

Pd………………16 16 W

Pout………………110 140 W





Class C R-F power amplification and oscillation (anode modulation) (if there is no modulation for each tube under keying conditions) limit value





Ua………………1000 1250 1500 1500 V

Ug………………-95 -100 -105 -500 V

Ia………………200 200 200 210 mA

Ig………………40 40 40 70 mA

Pa(in)…………………………………………315 W

Pa………………………………………… 125 W

üg(pk)…………225 230 235 V

Pd………………8.5 8.5 8.5 W

Pout………………130 170 215 W
