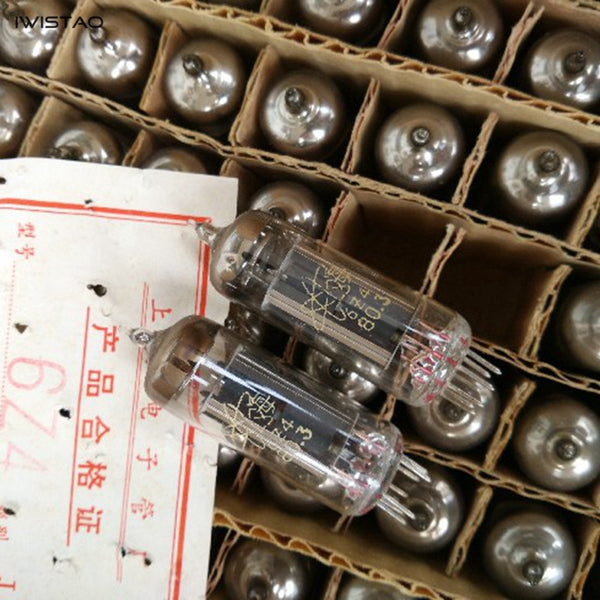

Vacuum Tube 6CZ4 Rectifier Military Grade for Tube FM Radio Tuner Inventory Product High Reliability
Model No: 6Z4
Type: Side-heating cathode double anode rectifier diode
Application: full wave rectification
Filament voltage (Uf) = 6.3V;
Filament current (If) = 0.6A;
Average rectified current (Icp) ≥ 72mA;
The secondary voltage of the transformer secondary voltage rms (Urms) = 2 × 350V;
Load resistance (Rz) = 5.2kΩ;
Filter capacitor (C) = 16μF.
(limit use data)
Maximum filament voltage (Ufmax) = 7V;
Minimum filament voltage (Ufmin) = 5.7V;
Maximum anode reverse voltage peak (Upmax) = 1kV;
Maximum filament to cathode voltage (Ufkmax) = +100-400V;
Maximum current (Ikmax) = 75mA.
