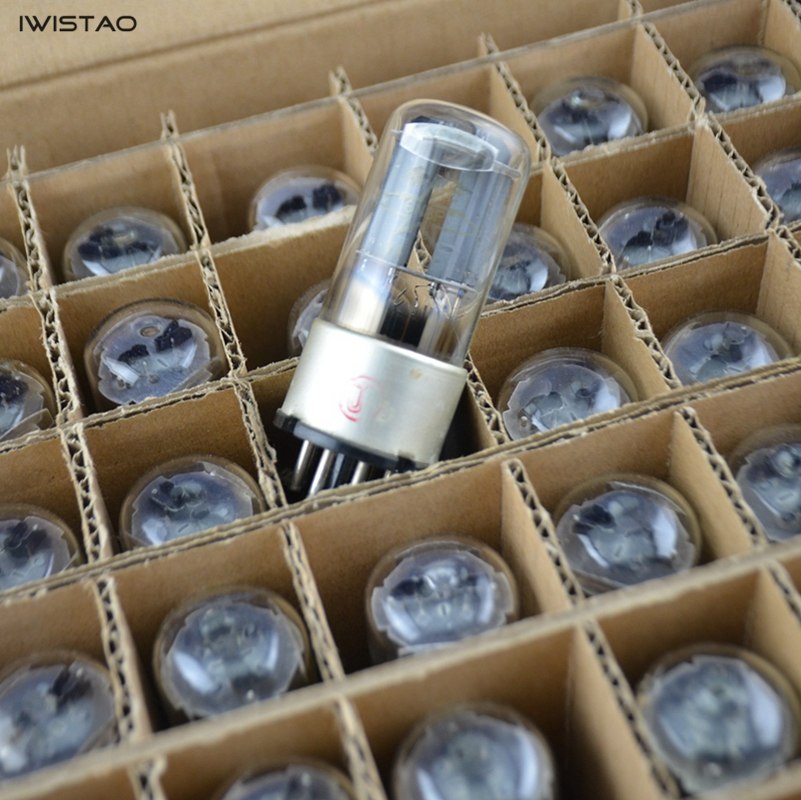

Vacuum Tube 6N8P 1pc Inventory Product for Tube Amplifier Replacement 6SN7 6H8C High Reliability
Replace tube 6SN7, 6H8C
Application: Parathermal cathode dual triode / low frequency power amplification
1.(single triode) filament voltage (Uf) = 6.3V;
2. Filament current (If) = 0.6 ± 0.05A;
3. Anode voltage (Ua) = 250V;
4. Gate voltage (Ug) = -8V;
5. Anode current (Ia) = 9 ± 3.5 mA;
6. Transconductance (S) = 2.6 ± 0.52 mA / V;
7. Magnification factor (μ) = 18 ~ 23. (interelectrode capacitance)
8. Input capacitance (Cin) = 2 ~ 4pF;
9. Output capacitance (Cout) = 0.3 ~ 1.6pF;
10. Transition capacitance (Cag) 3 ~ 5.8pF. (limit application data)
11. Maximum filament voltage (UFMax) = 6.9V;
12. Minimum filament voltage (Ufmin) = 5.7V;
13. Maximum anode voltage (Uamax) = 330V;
14. Maximum filament to cathode voltage (Ufkmax) = 100V;
15. Maximum cathode current (Ikmax) = 20mA;
16. Maximum anode dissipation power (Pamax) = 2.75W;
17. Maximum gate resistance (Rgmax) = 0.5MΩ.
