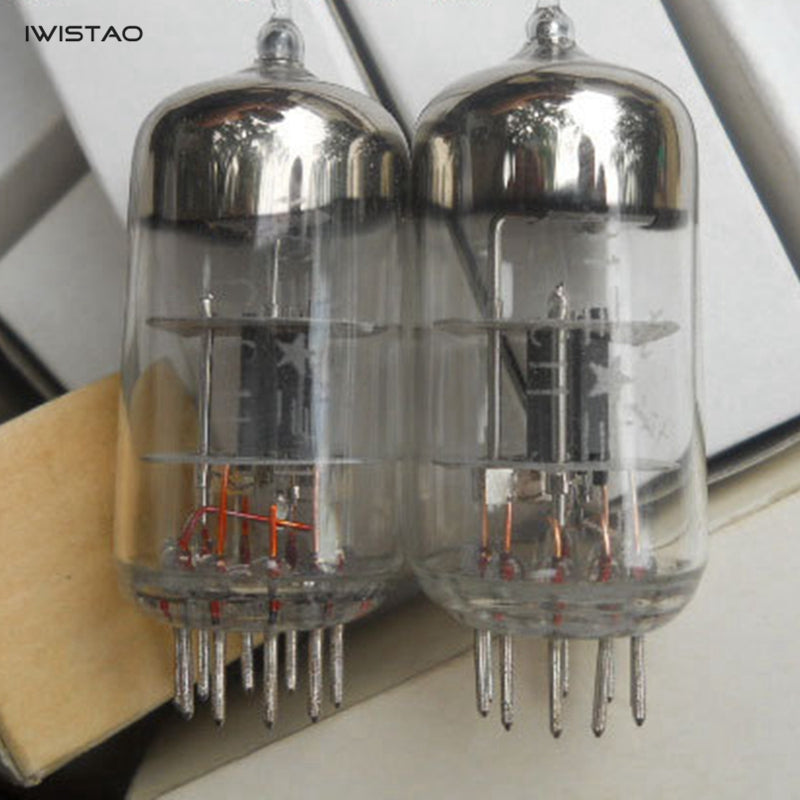

Vacuum Tube 6C11 Military Grade for Tube FM Radio Tuner Inventory Product High Reliability
Model No: 6C11
Application: Parathermal cathode triode / UHF oscillation
Filament voltage (Uf) = 6.3V;
Filament current (If) = 0.17A;
Anode voltage (Ua) = 120V;
Anode current (Ia) = 20mA;
Transconductance (S) = 4.5 mA / V;
Magnification factor (μ) = 16.
Input capacitance (Cin) = 1.8 ± 0.4pF;
Output capacitance (Cout) = 0.7 ± 0.3pF;
Transition capacitance (Cag) = 1.6 ± 0.3pF;
Filament to cathode capacitance (Cfk) = 2.5pF.
(limit use data)
Maximum filament voltage (UFMax) = 6.9V;
Minimum filament voltage (Ufmin) = 5.7V;
Maximum anode voltage (Uamax) = 275V;
Maximum filament to cathode voltage (Ufkmax) = ± 100V;
Maximum anode dissipation power (Pamax) = 3.5W;
Maximum gate resistance (Rgmax) = 1MΩ.
