Tube Preamplifier Kondo-M7 Finished Board 6X4/EZ90 12AY7/6072WA No Including Tubes Tansforemer HIFI

45 In stock

Finished PCBA Amplifier Board

To add this product to your wish list you must Sign In or Create an account

Tube Preamplifier Kit Finished PCBA Board Kondo-M76X4/EZ90 12AY7 / 6072WA No Including Tubes Tansforemer HIFI Audio DIY   Model No: WHFTA-PAM7   The circuit diagram of this PCBA finished board sources from kondo ksl-m77 that is worth 80 thousand , and soldered HIFI resistance koa precision one(Koa is kondo (audionote), which...
$139.90
Click to refer to Shipping Rate
Type
+
-
$139.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

Tube Preamplifier Kit Finished PCBA Board Kondo-M76X4/EZ90 12AY7 / 6072WA No Including Tubes Tansforemer HIFI Audio DIY



Model No: WHFTA-PAM7



The circuit diagram of this PCBA finished board sources from kondo ksl-m77 that is worth 80 thousand , and soldered HIFI resistance koa precision one(Koa is kondo (audionote), which used in M7 original unit), Riken and other antiques resistance.



The video demo is only for you information below.

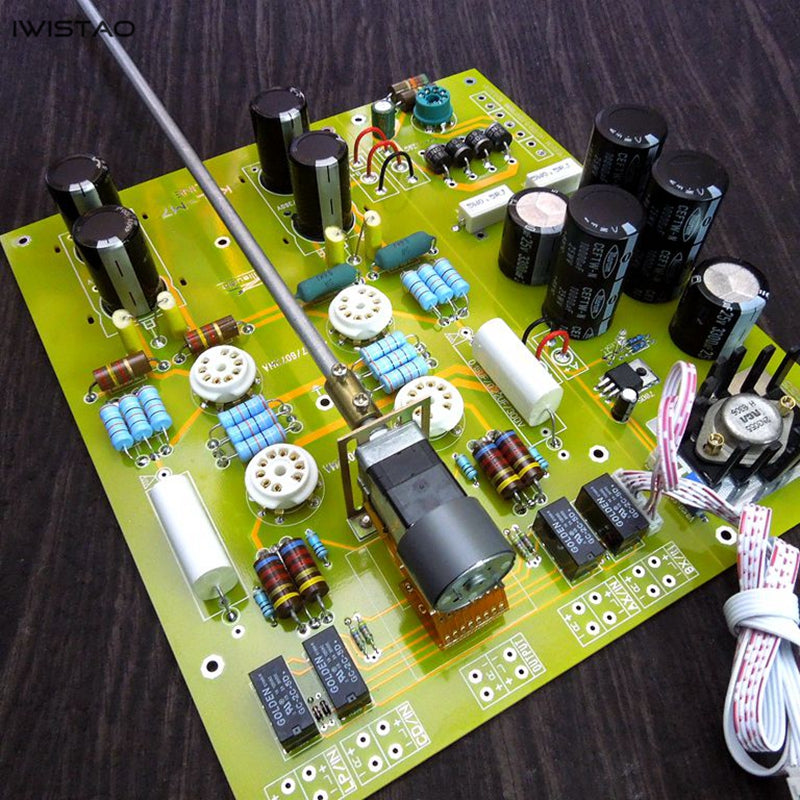

The commodity doesn't include tubes, transformers. Photo as below showed is finished PCBA board after soldering and testing for sold.



The current version



WHFTA-PAM7(1)l1WHFTA-PAM7(1)lWHFTA-PAM7(1)2





These are two options



1. DIY Kit Only Version



2. Finished Board



Specifications

1.     PCB size: 225mm x 250mm, wherein the power plate width 75MM

2.     Requirements of secondary voltage of power transformer is:

a)       AC 230-0-230Vgroup x 1 , current is greater than 50mA;

b)       AC12.6V x 1, current greater than 3A,

c)       AC 6.3V group x 1, current greater than 2A,

3. Tube model requirements (THIS KIT don’t include any tubes)

a) 6X4 / EZ90 x 1

b) 12AY7 / 6072WA x 4. (12ay7 emergency alternative models 12AT7,12AX7,5751)

4. Circuit Diagram



WHFTA-PKM7(cdl)
