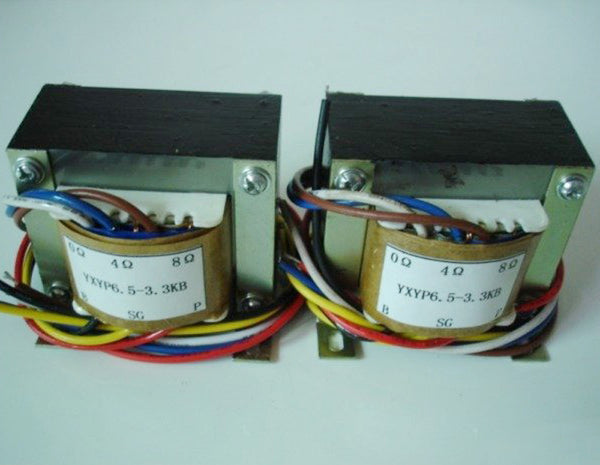

Tube Amplifier Output Transformer
IWISTAO Output Transformer Tube Amplifier Single-ended Primary Impedance 3.3K 6.5W for Tubes EL34 FU7 KT88 KT100 6N5P 2A3
Model No: WVOT-6.5W
1. Used cold-rolled non-oriented high silicon (H10/0.35EI) dedicated audio chip by Nippon Steel Company.
2. High-quality oxygen-free copper wire wrap wire, layered segments, each insulated with insulating paper, carefully wound.
3. Used advanced dipping process, so that the transformer has good insulation and moisture resistance.
4. Wiring using 30cm long leads, more convenient to use.
5. Sound transparent innocence, sweet tone warm and rich, an excellent solution clarity intensity.
1. Primary impedance (ohms):
a) 3.3K with a super-linear fitting (SG)
b) Primary Inductance: 15H
2. Secondary (ohms): 4, 8
3. Frequency: 20-35K HZ (-2dB)
4. Core (mm) width × stacked thick tongue: 22 × 30 (EI66 tablets)
5. Output Power: 6.5W
6. Weight (kg): 0.91kg /pc
7. Dimensions (Lx W x H): 66mm × 62mm × 55mm
8. Applicable tubes: 6P3P, EL34, FU7, KT66, KT88, KT100, 6N5P, 2A3, etc.
1 pair 6.5W Tube Amplifier Output Transformer
