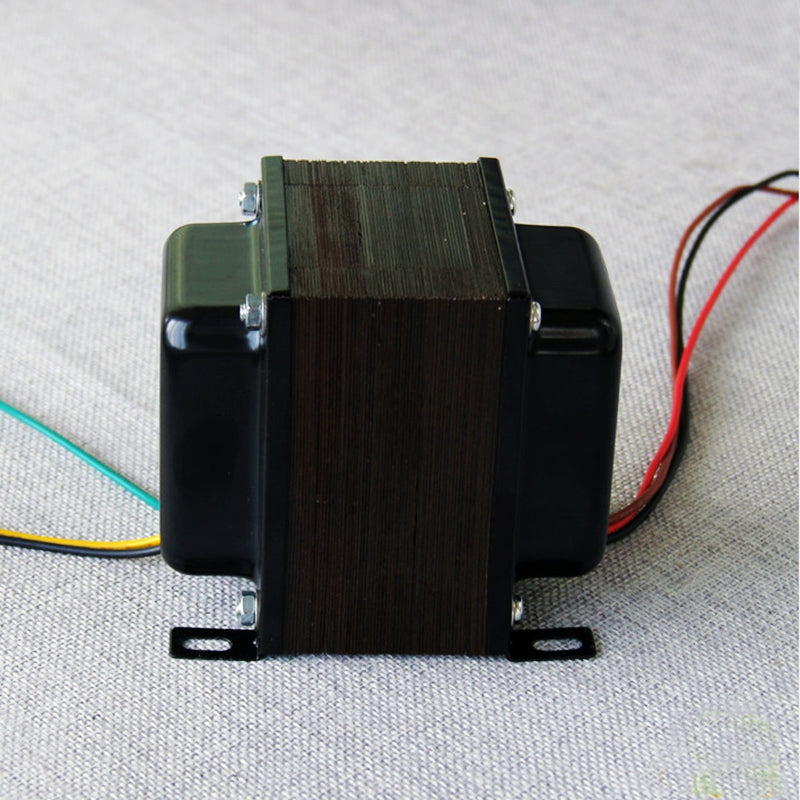

Tube Amplifier Output Transformer
IWISTAO Tube Amplifier Output Transformer Pull-Push Z11 Silicon Steel EI For Pull-push Tube Amp Power 50W Audio HIFI DIY
Model No: WVTRPP-50W
Adopt Z11 silicon annealing 0.35EI dedicated audio chips.
1. High quality thick nylon frame and high quality Japan Z11 annealed silicon steel
2. Effectively isolated electromagnetic interference with iron paint shell.
- Core Size: 28MM * 50MM
- Winding way: 3 folder 2 fragment woun
- Primary Impedance: 5K ohm
- Secondary Impedance: 0-4-8 ohm
- Installation Center Pitch: wide pitch 60MM, 78MM deep distance
- Dimensions: width 72 * high 86 * thick 95MM
- Insulation treatment: immersion insulating paint
- Core material: Imported Japan Z11 0.35MM thick insulation annealed sheet stack thickness 50MM, outsourcing black Mara plastic
- Shielding way: side cover shield
- Weight: 2.35KG
