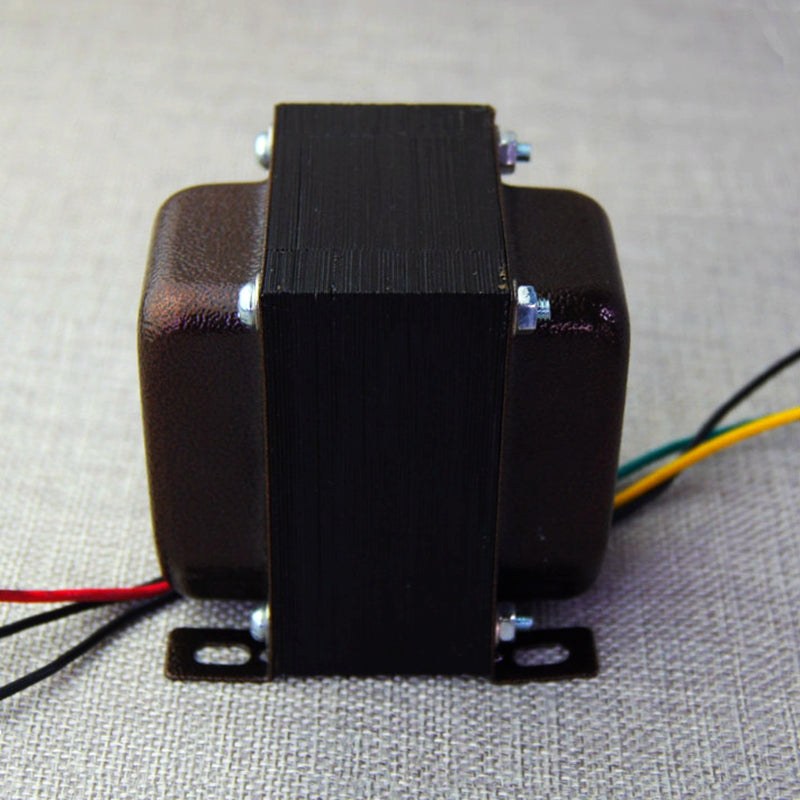

IWISTAO Tube Amplifier Output Transformer 30W Pull-Push Z11 EI For Pull-push Tube Amp No Linear Tap
96 In stock
Tube Amplifier Output Transformer
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).
IWISTAO Tube Amplifier Output Transformer Pull-Push Z11 Silicon Steel EI For Pull-push Tube Amp Power 30W No Linear Tap Audio HIFI DIY
Model No: WVTRPP-30W
Adopt Z11 silicon annealing 0.35EI dedicated audio chips.
1. High quality thick nylon frame and high quality Japan Z11 annealed silicon steel.
2. Effectively isolated electromagnetic interference with iron paint shell.
- Core Size: 25.3MM * 45MM
- Winding way: 3 folder 2 fragment wound
- Frequency response: 30HZ -20KHZ
- Inductance (P1-P2): L> = 40H @ 500H
- Primary Impedance: 8K ohm
- Secondary Impedance: 0-4-8 ohm
- Installation Center Pitch: wide pitch 67MM, 51MM deep distance
- Dimensions: width 64 * high 77 * thick 77MM
- Insulation treatment: immersion insulating paint
- Core material: Imported Japan Z11 0.35MM thick insulation annealed sheet stack thickness 35MM, outsourcing black Mara plastic
- Shielding way: side cover shield
- Weight: 1.3KG
