Out of stock

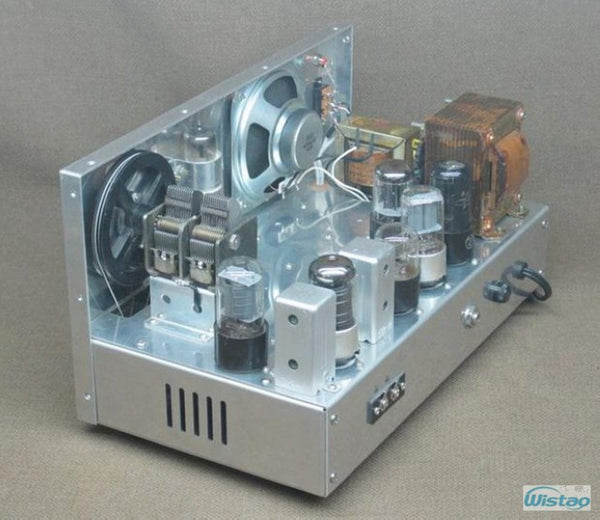

Tube FM radio tuner
Tube AM/SW Radio Pure 7 Tubes 3 Bands Radio AM 535-1605 KHZ Shortwave 2.3-7 MHZ 6-18 MHZ Amplifier Metal Casing Bass Tremble 4-inch Speaker
Model No: WVT-RSD02
This is a pure tube 3-band radio, it can receive a medium wave and two band shortwave signal. Tube radio is built in 4-inch small speakers, which can meet listening need for 15 square rooms. If you connect an external 6-8 inch full-range speaker, then there will be a leap in sound volume.
But, please note, this radio is only for those electronics fans have the knowledge and experience of tube radios to buy. If you don’t have them, please DO NOT buy it. If you don't have problem-solving capability for tube radio, please don't buy it.And this tube radio was made of seceondhand tubes and components as below. If you buy it, it means you accept these terms.
AM / 3-band frequency range
1. AM: 535-1605 KHZ,
2. Shortwave 1: 2.3-7 MHZ,
3. Shortwave 2: 6-18 MHZ
1. Outdoor antenna is connected to the fifth floor, which is a about 10 meters aluminum wire with plastic cover for drying clothes, and connected with an ordinary wire led to the second floor studio listening, there is no ground wire.
a) During daytime and it can receive 5 MW stations, in the evening receive more than 10 one. Good listening experience.
b) Short-wave 1: 2.3-7MHZ. receives 2-3 stations in daytime, receives more than 10 stations in evening, the effect can still listen.
c) Short-wave 2: 6-18MHZ. receives more than 10 stations in daytime, receives more than 30 stations in evening, good listening experience.
2. If indoor antenna with ordinary wire 2 meters, listening effect is ordinay.
In order to ensure that the tube radio is original taste and flavor, the old components is used, most of them are 7-80's new producing, and only very few one are disassemble (tested and performance is intact) , power transformers is DB -50-300 inventory produced in the 1980s, and output transformer is model CB-3.5W-80, they are produced by Shanghai radio No 27 factory all, its appearance looks like a little rust, after decades of inventory. dial has not improve, and this depends on you and the buyer's hands capability.
1. Equipped with seven tubes: 6A7PJ, 6K3PJ, 6N9PJ, 6H6PJ, 6P6PJ, 6Z5PJ, 6E2M (all new)
2. Bass / tremble control
3. Built-in Radio / record player (CD player) switch
4. Built-in a RCA input terminal for external FM tuner
5. Built-in a switch jack between radio speaker and outside speaker.
6. Aluminum chassis Dimensions (L * D * H) 370mm X 200mm X 180mm.
7. Working voltage: 220V / 50Hz
7. Net weighs 5.2KG,
8. Packaging weight: 8.7KG.
