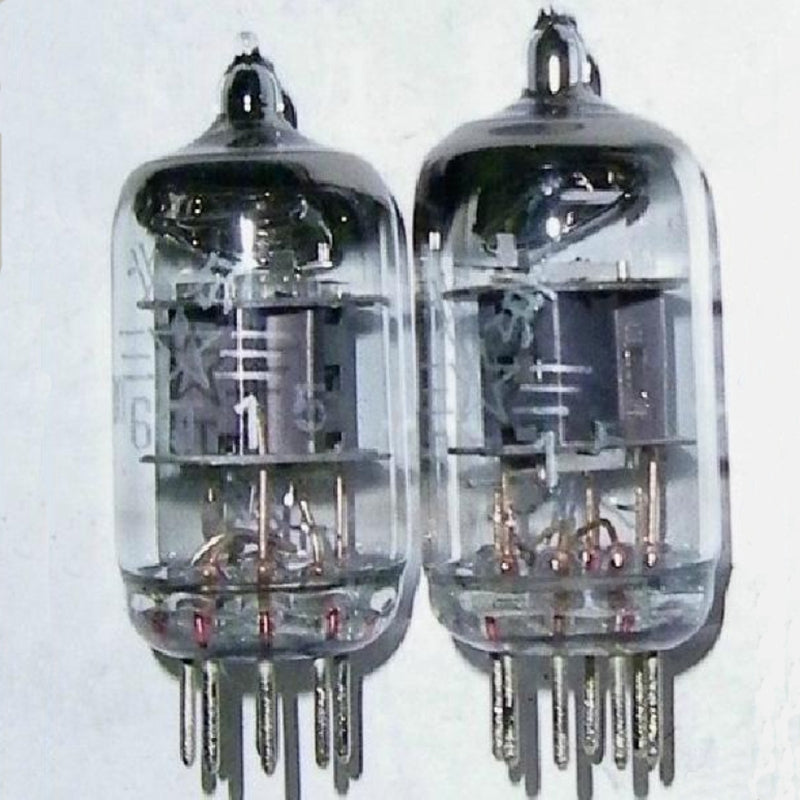

Tube 6J1 (J ) Military Grade for HIFI Tube Amplifier Model WVT2103 Replac EF95 6AK5 High Reliability
6J1 tube is sharp cutoff pentode; apply hifi pre-amplifier stage.Replace EF95, 6AK5 tube.
Main application: Wideband Frequency Voltage Amplification.
Filament voltage (Uf) = 6.3V;
Filament current (I.f) = 0.17A;
Anode voltage (Ua) = 120V;
Anode current (Ia) 4.5 ~ 12mA;
A second gate voltage (Ug2) = 120V;
The second gate current (Ig2) 3.2mA;
Transconductance (S) = 5.2 1.4mA / V.
Input capacitor (Cin) = 4.3pF;
Output capacitor (Cout) = 2.35pF;
Transition capacitance (Cag) 0.02pF;
Between the filament and the cathode capacitance (Cfk) = 4.65pF
Limit the use of data
Maximum filament voltage (Ufmax) = 7V;
Minimum filament voltage (Ufmin) = 5.7V;
Maximum anode voltage (Uamax) = 200V;
Maximum voltage of the second gate (Ug2maxp) = 150V;
Maximum voltage between the filament and the cathode (Ufkmax) 120V;
Maximum cathode current (Ikmax) = 20mA;
Maximum anode dissipation power (Pamax) = 1.8W;
Maximum power dissipation of the second gate (Pg2max) = 0.55W;
Maximum of the first gate resistance (Rgmax) = 1M.
