TB-W3-2141 HIFI 3 Inch Full Range Speaker Unit 1 Piece 75-20K Hz Power 12-25W Neodymium Bamboo Fiber Paper Cone HIFI DIY

90 In stock

HIFI Speaker Unit

To add this product to your wish list you must Sign In or Create an account

TB-W3-2141 HIFI 3 Inch Full Range Speaker Unit 1 Piece 75-20K Hz Power 12-25W Neodymium Bamboo Fiber Paper Cone HIFI DIY     Model No: WHFRSU-TB32141     The TB-W3-2141 full-frequency unit has no crossover loss and phase distortion due to its full-frequency design, which can reproduce the original and...
$59.90
Click to refer to Shipping Rate
+
-
$59.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

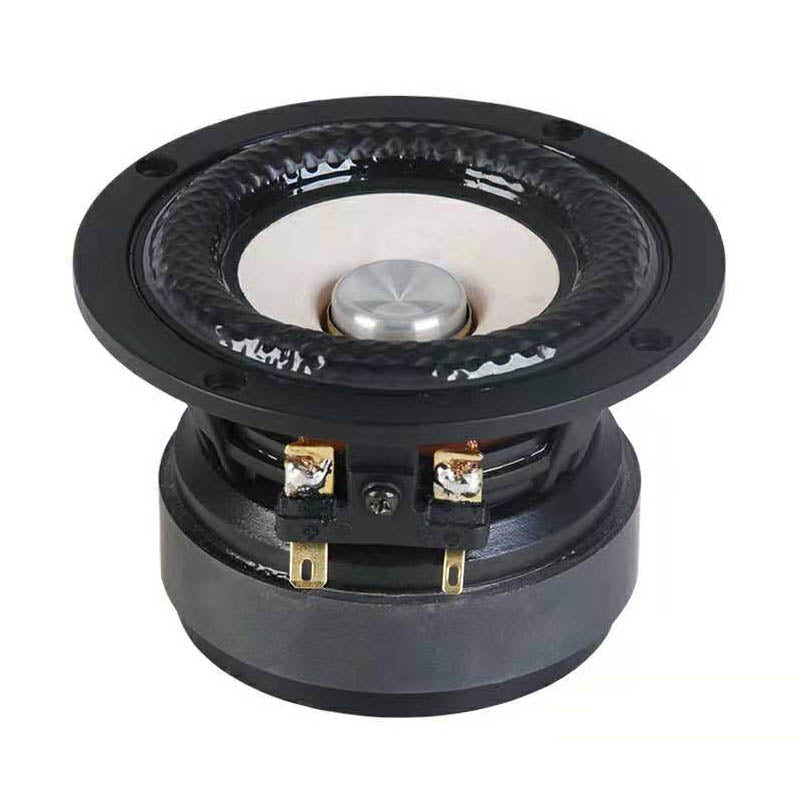

TB-W3-2141 HIFI 3 Inch Full Range Speaker Unit 1 Piece 75-20K Hz Power 12-25W Neodymium Bamboo Fiber Paper Cone HIFI DIY






Model No: WHFRSU-TB32141






The TB-W3-2141 full-frequency unit has no crossover loss and phase distortion due to its full-frequency design, which can reproduce the original and pure sound quality. W3 uses bamboo fiber paper diaphragm and special pattern folding ring. The unique phase plug minimizes the second and third harmonic distortion and phase distortion. TB units mostly use thickened sliders, short voice coil and long magnetic gap Underhung magnetic circuit design to ensure stable and uniform magnetic field distribution throughout the piston movement to obtain excellent frequency response.








Features

  1. Full-range design Underhung & ferrite magnetic return system.

  2. XmaxX=1.6mm, extremely low THD (second and third harmonic distortion).

  3. Using a unique phase plug to produce better diffusion effect, bamboo fiber paper cone matching structure

  4. Diaphragm material: Paper.

  5. Suspension material: Structured Santoprene.

Specifications
  1. Size: 3"

  2. Rated power: 12 W

  3. Maximum power: 25 W

  4. Rated impedance: 8Ω(DC impedance: 6.5Ω)

  5. Efficiency (1W/1m): 87 dB.

  6. Frequency: 75 -20K Hz

  7. Natural resonance point: 75 Hz,

  8. Volume (Vas): 3.30 Litr

  9. weight: 0.6 kg

  10. Qty: 1 piece
