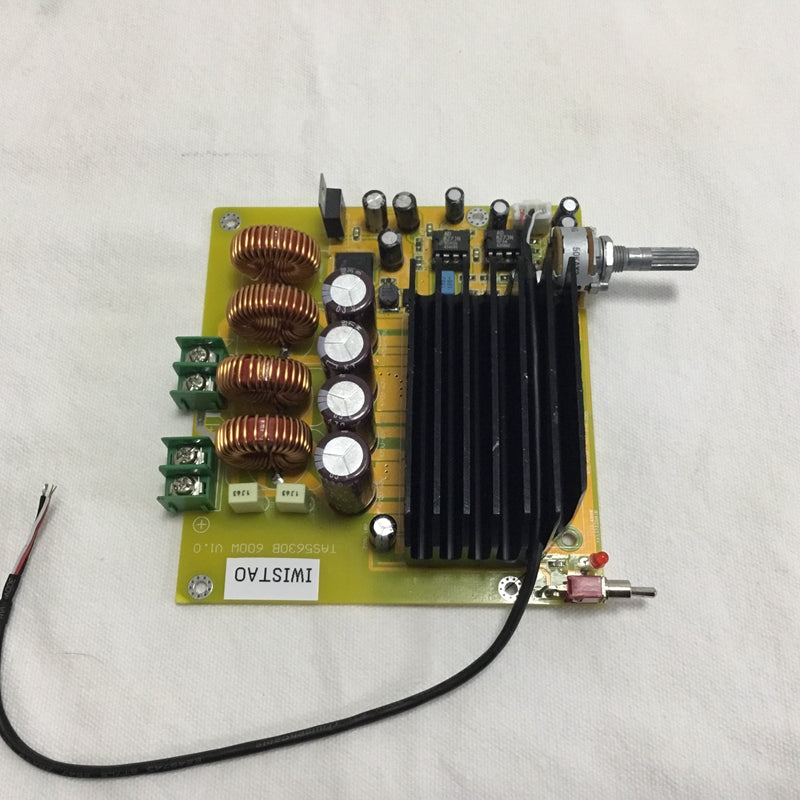

IWISTAO TAS5630 Amplifier Class D High-power Finished Board Mono 600W Subwoofer Full Range DIY

196 In stock

Finished PCBA Amplifier Board

IWISTAO TAS5630 Amplifier Class D Board High-power Finished Boards Mono 600w for Subwoofer or Full Range      Model No: WHFAB-TAS5630   The output power of TAS5630 class D amplifier can be up to 600W under derived by DC48V and 2 ohm load,  it can provide 350W output power if 4...
$50.90
Type
+
-
$50.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

IWISTAO TAS5630 Amplifier Class D Board High-power Finished Boards Mono 600w for Subwoofer or Full Range





Model No: WHFAB-TAS5630



The output power of TAS5630 class D amplifier can be up to 600W under derived by DC48V and 2 ohm load,  it can provide 350W output power if 4 ohms load. They use PurePath ™ HD technology and TI's advanced closed-loop architecture for high-definition media playback and ultra-low distortion for next-generation Blu-ray home theater systems, stand-alone home theaters, and professional audio systems. It is the top of the digital amplifier. This is the flagship of the digital amplifier, analysis and details are the ultimate, very powerful driving force, power consumption is also very low



Input DC voltage is DC 18V to DC 50 for this amplifier board, the proposed range is the best 24-45V, current 6A or more (the bigger the better). You need use the rectifier bridge and filter if the transformer voltage range from AC 15V to AC 33V is available. Selecting of the amplifier board component and parts is very professional as below the low loss red ring and HIFI inductances, Japan ALPS16 potentiometer, large aluminum alloy cooling system, the Japanese Chemical Black King decoupling capacitors, etc.





Details



Signal Input can use left or right 2-channel inputs, or can only take only mono input.



There are 2 versions,

1. Subwoofer version -- 60Hz is default frequency, and we can be customized it according to customer requirements, please leave the seller message.

2. Full range version – the frequency of amplifier is 20 – 20k Hz



Specification:



1. DC = 50V,

R = 2Ω, THD + N = 10%, P = 600W

R = 4Ω, THD + N = 10%, P = 350W

DC = 50V, R = 6Ω, THD + N = 10%, P = 250W

DC = 50V, R = 8Ω, THD + N = 10%, P = 200W

2. Total harmonic distortion (THD + N): <0.1%

3. Signal to noise ratio (SNR):> 100dB

4. Input impedance: 20KΩ

5. Output offset voltage: <150mV

6. Voltage gain: adjustable

7. Conversion rate (SR): 50V / us

8. Frequency response range: 20Hz - 20kHz

9. Power supply range: DC20 - DC50V

10. PCB size: 111.6mm * 103.5mm

11. Crossover frequency: 60HZ (60HZ is default frequency, and we can be customized it according to customer requirements, please leave the seller message)



WHFAB-TAS5630(SUB1 l)



Caution:

1. The amplifier board using DC power supply, can not be directly input AC; To use AC power supply, please use the AC adapter, plug a rectifier bridge and filter capacitor can be.

2. Output power and power a relationship, 50V than 20V when the power of 4 times more.
