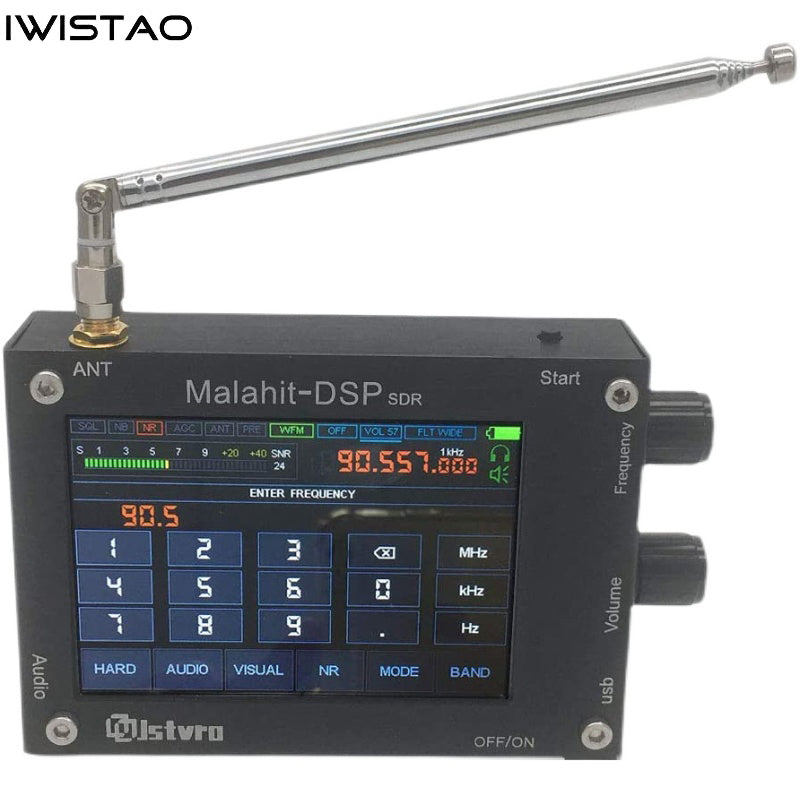

Malahit DSP SDR Radio 1.10C Software Defined Radio Receiver
Model No: WSDR-R002
This portable SDR radio adopts a 3.5-inch capacitive screen and a four-layer board structure with higher performance. The sound system uses a sound unit, 2 vibration chambers, and the speaker comes with a sound chamber, and the bass sound quality is very full.
1. DSP SDR receiver for Malahit
2. Stlink V2 system
3. Default frequency range: 50KHZ-2.0GHz
4. Demodulation mode: AM, LSB, AM, NFM, WFM (continuous wave, minimum signal-to-noise ratio)
1) The radio is based on the SDR principle, and the function is determined by the loaded software.
2) Frequency range: from 50 kHz to 2.0GHz (registered version)
3) All types of analog modulation: AM, LSB, NFM, WFM: (CW, minimum SNR)
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor for noise suppression, AGC, equalizer.
5) Full-featured chip msio01.
6) Using a powerful stm32H743VIT6 clocked at 480 MHZ:
7) 3.5-inch touch screen display.
8) Controls: 2; encoder with buttons and touch screen.
9) Powered by external Type-C interface or battery (built-in battery 3.7V 3800ma), can be charged by Type-C.
10) Power consumption: 300mA when listening to headphones.
11) Reception on the built-in telescope or external antenna In order to improve the high frequency reception on the telescope antenna, a board with an active follower has also been developed. The board will be built into standard receiver designs.
12) Connect to computer via USB, can transmit CAT, IQ and audio.
13) 160kHZ span, scalable.
14) Due to the characteristics of the msi001 chip, the dynamic blocking range is about 85dB.
15) With backlight control.
16) SMA female antenna socket.
17) Motherboard size: 112 × 70mm (without the sizes of connectors).
