LC Loudness Volume Potentiometer Circuit Boards Japan ALPS27 type 100K
LC loudness control circuit means loudness by L (inductance) and C (capacitance) components and the composition of the volume potentiometer control circuit, its layout is simple and well. More than a dozen years ago, this recorder and hi-fi system used loudness control circuit in common, which is in a normal volume potentiometer fitted on the intermediate frequency LC resonant circuit.
1. Two-channel, red PCB and size is 43mm × 35mm.
2. Exquisite double-sided FR4 fiberglass plates, gold high quality thickness is 2mm.

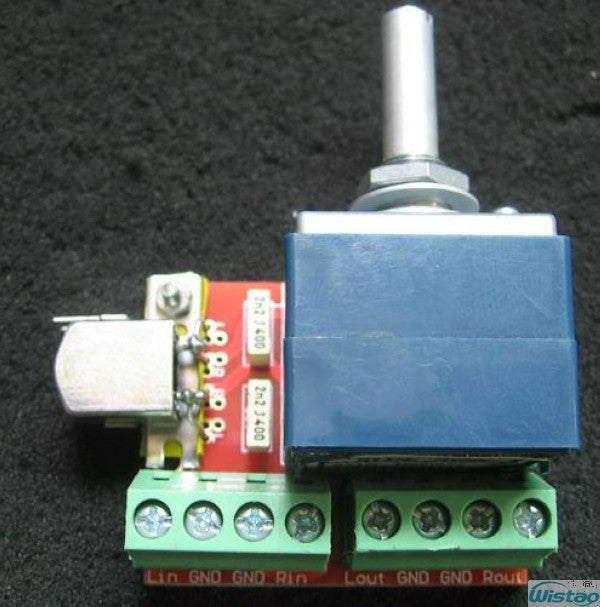

3. PCB board assembled with 1pc Japanese ALPS 27 Type 100K volume potentiometer, 2pcs capacitors, 1pc upscale DM62 stereo head, 2pcs three-pins terminals.
4. Marked convenient input, output, ground (two ground, two input lines, and two output lines) installed connections. With matching pin board, firmly positioning potentiometer fillet weld assembly becomes simple and easy to protect expensive potentiometer.
Note: The potentiometer and circuit boards do not be soldered backwards! Due to different batches components and parts for assembly, it may be a little different.
Potentiometer Size and Mounting Surface
