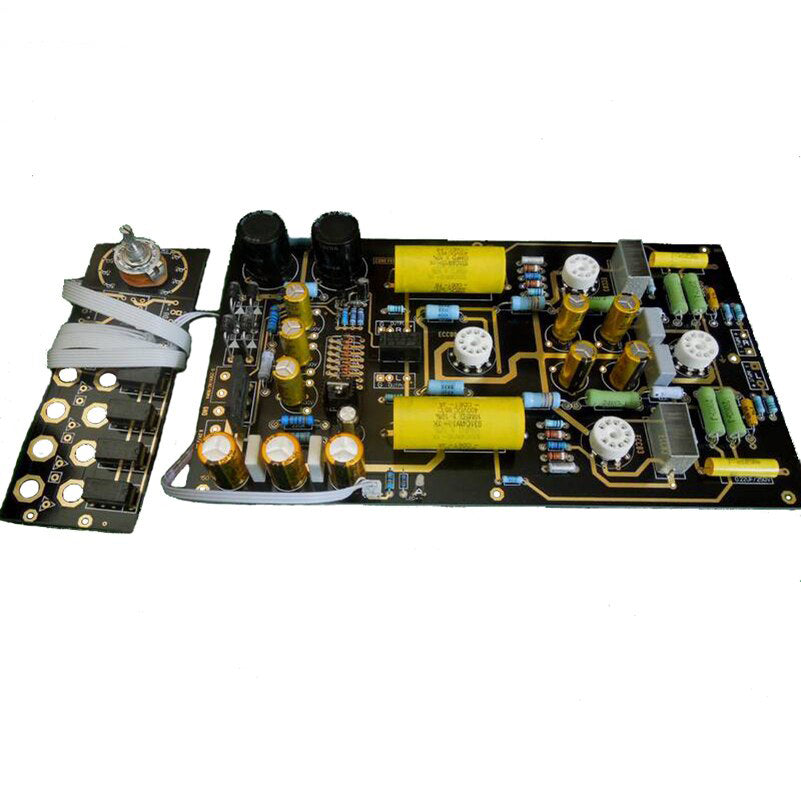

IWISTAO Vacuum Tube Preamplifier Finished Board DIY kit CAT SL-1 Circuit Diagram
Model NO: WHF-PRATUBE-SL
The circuit is large dynamic, accurate in positioning, and mellow in the intermediate frequency. It can be called the most perfect design of the tube pre-amplifier.
1. Power supply voltage requirements:
1). High voltage can range from AC230V to 280,V and the current is greater than 50ma.
2). The filament voltage is 6.3v/2.5A.
2. Its magnification of the circuit is 15 times.
3. Tube configuration (not including any tubes)
1.In response to the requirement that some players may replace higher-level relays, the relays and selector switches of the sub-board are spare parts and are not shipped by welding.
2. we provide you some items and components for your DIY. If you have enough capabilities for circuit-reading, electronica components knowledge, assembling, soldering and problem-solving, you can buy them to enjoy DIY. If not, please don't buy them. We only provide limit technology support in this individual items itself.
