IWISTAO Vacuum Tube Preamplifier 2x6J1 Finished PCBA Horizontal Installation AC12V DIY

198 In stock

Finished PCBA Amplifier Board

IWISTAO Vacuum Tube Preamplifier 2x6J1 Finished PCBA Horizontal Installation AC12V DIY Model No: WVT-PABH6J1   This is a tube preamplifier finished board with 6J1 tubes. The 6J1 tubes are horizontally mounted, and the entire PCB board is luxurious, its layout is reasonable, beautiful, and can be easily installed in the...
$33.90 $27.90
Save $6.00
Click to refer to Shipping Rate
+
-
$27.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

IWISTAO Vacuum Tube Preamplifier 2x6J1 Finished PCBA Horizontal Installation AC12V DIY


Model No: WVT-PABH6J1

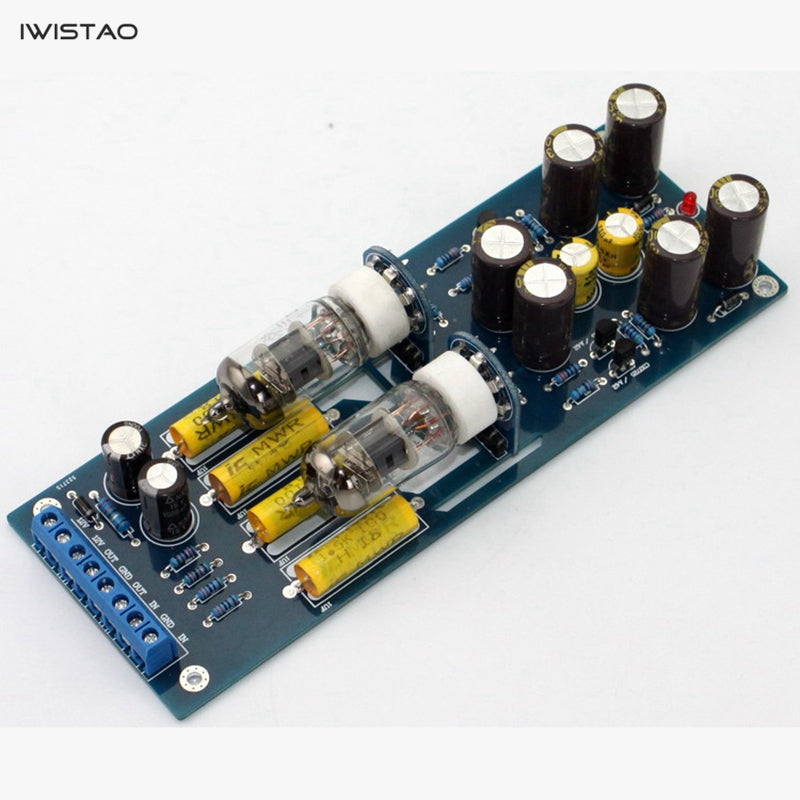

This is a tube preamplifier finished board with 6J1 tubes. The 6J1 tubes are horizontally mounted, and the entire PCB board is luxurious, its layout is reasonable, beautiful, and can be easily installed in the chassis.



WVT-PABH6J1(1)lWVT-PABH6J1(1)l1WVT-PABH6J1(1)l2WVT-PABH6J1(1)l3



Features

1. Use original 6J1 tube.



2. The main filter capacitor is 1000UF/35V imported, and the coupling capacitor is 1UF.



3. The resistor uses a five-ring 1% metal resistor to ensure a good signal-to-noise ratio.



4. First-class PCB quality. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current.



5. Add a green background LED, very beautiful.

WVT-PABH6J1(1)l4



Specifications



1. Power transformer voltage requested: AC12V (15W)

2. Finished board size (L*W*H): 165mm * 62mm * 32mm

3. Tube: 6J1 x 2



Note: we provide you some items and components for your DIY. If you have enough capablities for circuit-reading, electronical components knowledge, assembling, soldering and problem-solving, you can buy them to enjoy DIY. If not, please don't buy them. We only provide limit technology support in this individial items itself.
