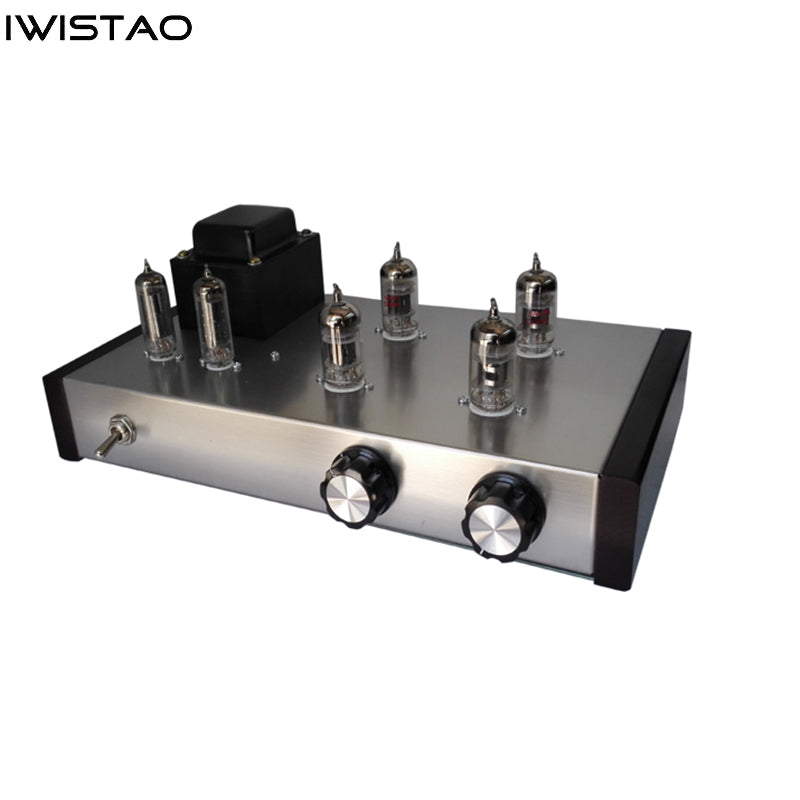

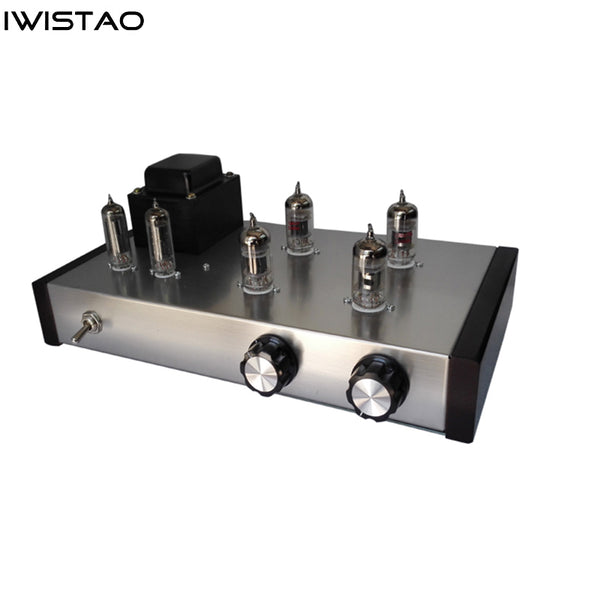

IWISTAO Vacuum Tube HIFI Preamplifier Featuring the Improved Shigeru Wada Amplifier Circuit
Model No: WVTPA-ShigeruWada
The Shigeru Wada electronic tube preamplifier is designed specifically to connect with a power amplifier. And the finished tube amplifier adopted PCB soldering.
Since its launch in the market, the Shigeru Wada finished preamplifier has received considerable attention and has undergone discussions and modifications over the past year. The circuit has been thoroughly tested and refined through multiple auditions and meticulous hand-welding.
For enthusiasts familiar with tube preamps, two renowned models stand out: the Shigeru Wada and the Malanshi-7. After careful evaluation, it becomes evident that the Shigeru Wada preamplifier offers impressive performance and sound quality. It not only upholds the full-bodied and musical characteristics of the Marantz7, but also surpasses it in terms of dynamics, transient response, high and low-frequency reproduction, and analytical power.
A closer examination of the Shigeru Wada circuit reveals its inherent excellence. The pre-stage comprises a two-stage voltage amplification section utilizing a highly stable dual triode tube, delivering a roughly 10-fold signal amplification with high sensitivity. The subsequent stage, known as an emitter follower, employs a superior dual triode 12AU7 tube. While this stage does not focus on voltage amplification, it significantly enhances current amplification. This well-designed pre-stage ensures not only high sensitivity, but also excellent load capacity, enabling seamless compatibility with a wide range of post-stage configurations.
Enthusiasts familiar with Shigeru Wada's preamplifiers recognize their distinctive characteristic of producing lifelike vocals and exceptional performance in the alto range. This attribute is attributed to the deliberate incorporation of even-order harmonic distortion generated by the working electronic tubes. Unlike odd-order harmonic distortion, which can adversely affect the listening experience, even-order harmonic distortion adds a captivating element, enhancing the nuances and emotional expressiveness of human voices. Moreover, it imbues instrumental music, such as indoor-recorded violin, saxophone, and jazz, with a unique and rich tonal quality.
If you don't need 6 tubes, please select the options for without tubes accordingly.
1. Circuit: Features the improved circuit based on Shigeru Wada's original design, employing a well-structured and 2. symmetrical device layout with meticulous attention to grounding wiring.
2. Power Transformer: Equipped with a 76*40 H250 0.35 power transformer.
3. Potentiometer: Utilizes a high-quality potentiometer, such as the Japanese original ALPS 16 type A special audio potentiometer.
4. Electronic Tubes used Noble Voice ECC832, ECC822, and 6Z4*2 early Shuguang stock tubes.
1. Input Sensitivity: 400mV
2. Output Voltage: 2V (RMS THD < 0.03%)
3. Signal-to-Noise Ratio: 94dB
4. Frequency Response: 12Hz-50kHz (-0.5dB)
5. Input Impedance: 200kohm
6. Output Impedance: 600ohm
7. Input Voltage (AC Input): 220V (optional 100V, 110V, 230V, 240V, etc.)
8. Power Consumption: 30W
9. Dimensions (W*D*H): 320mm*170mm*120mm
10. Weight: 4kg
11. Accessories: power cord x 1
