Finished PCBA Amplifier Board
IWISTAO Tube Tone Adjustment Preamplifier Finished Board 6N1 Bass Treble Volume Control Horizontal installation DIY
Model No: WVT-TPAH6N1
This a tube 6N1 tone adjustment board as horizontal installation, has the functions for treble, Bass control, which is good workmanship and high cost effective.
1. Using original 6N1 tubes
2. The Electrolytic capacitors are imported from Nikon and South Korea's Sanying Electrolysis, the coupling capacitor is Siemens, and the output is SPIRIT 2.7UF, ensuring strong and continuous power support.
3. The resistor uses a four-ring 1% metal resistor to ensure a good signal-to-noise ratio.
4. First-class PCB quality. PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current.
5. The board layout is reasonable, beautiful.

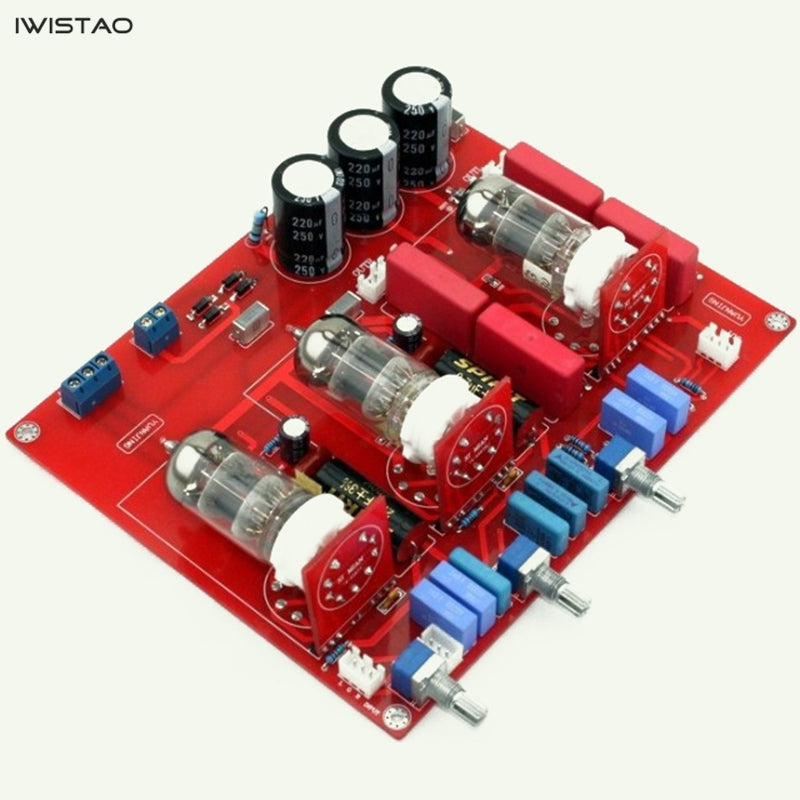

Potentiometer function from left to right as below photo: 1. volume 2. treble 3. bass
1. Size of the finished board(L*W*H): 139mm * 170mm *43mm
2. Transformer voltagfe requirements:
a) 0-AC160V / 15W（2 groups）
b) AC6.3V or Dual AC3.15V / 20W
