Finished PCBA Amplifier Board

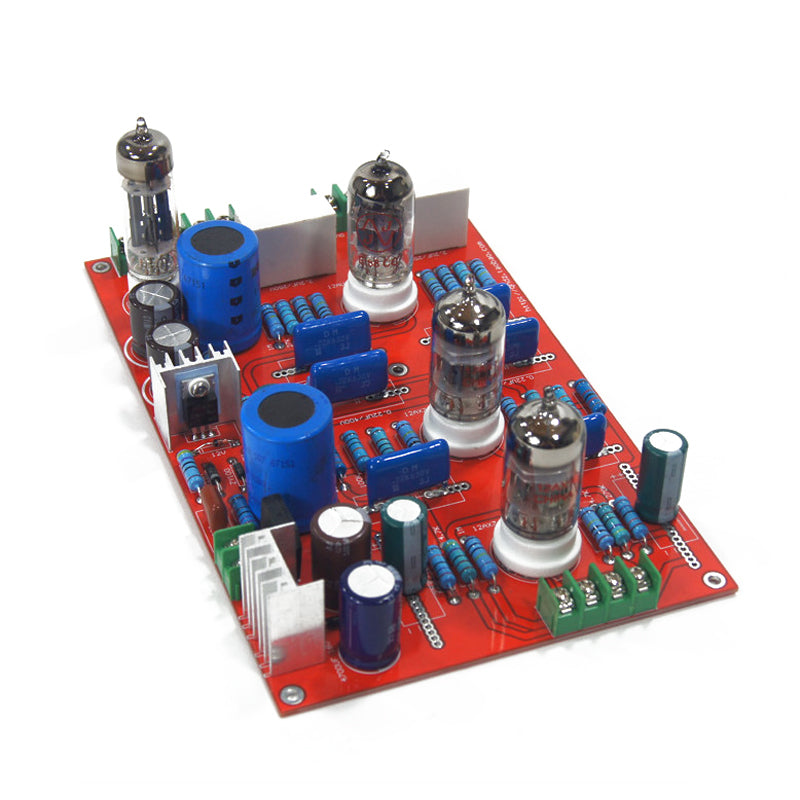

IWISTAO Tube Pre-amplifier PCBA Board Audio Marantz 7 Preamp M7 With Tubes 12AX7 12AU7 HIFI DIY
Model No: WHFT-PA007
Marantz 7 tube pre-amplifier is a legend classics unit. Thousands of HIFI audiophiles had been attracted and quested by its mellow sound, sweet nature low frequency, endless sweet and sour tube taste. It has been revised according to Marantz 7 tube preamp and successful launch finished unit, it give you big surprise due to sound quality, with not harsh and delicate treble, alto warm and sweet, soft bass without lack of strength, and give you an unexpected efforts.
Human voice with natural, delicate, smooth strings, stretch, the sound field is very atmospheric, good positioning of each musical instrument , good music imaging and superb treble transparent, elegant like as velvet, also its low-frequency is very content.
Effect Photos after Fixed into Casing
(Note: the photos just for reference, not including other components and parts, only PCBA and tubes is in packing list)
1. PCB size: 148mm * 220mm
2. Power voltage: 250V-0-250V 60MA , 0-6.3V 1A ,0-13V 2A
a) Tube 12AX7 x2
b) Tube 12AU7x 1
c) 6Z4 x 1
4. Circuit Diagram
Note: Picture part or components for reference only, due to different batches of purchase of certain components brand will change. We will take the same grade component substitution without notice.
