IWISTAO Tube Phono Amp Stage Kit M7 Turntables RIAA 12AX7 6X4 Rectifier Not Soldering No Including Tubes HIFI DIY

59 In stock

MM/MC Phono Preamplifier

To add this product to your wish list you must Sign In or Create an account

M7 Tube Phono Amplifier Kit PCB Turntables RIAA 12AX7 6x4 Tube-Rectifier Not Soldering No Including Tubes HIFI Audio DIY    Model No: WMM-MZ7(K)-NS This product is parts kit for audiophiles’ DIY. And it adopted tube rectifier, recommend to use tubes 12AX7 and 6X4, or 6N2 and 6Z4, HIFI level parts or...
$94.90
Click to refer to Shipping Rate
+
-
$94.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

M7 Tube Phono Amplifier Kit PCB Turntables RIAA 12AX7 6x4 Tube-Rectifier Not Soldering No Including Tubes HIFI Audio DIY



Model No: WMM-MZ7(K)-NS

This product is parts kit for audiophiles’ DIY. And it adopted tube rectifier, recommend to use tubes 12AX7 and 6X4, or 6N2 and 6Z4, HIFI level parts or componemts had been adopted in this kit. THIS KIT don’t include any tubes, and isn’t soldered.



If want to achieve the finished product, you need to fix other extra parts such as separated tubes, power transformer, connectors, chassis,.etc.

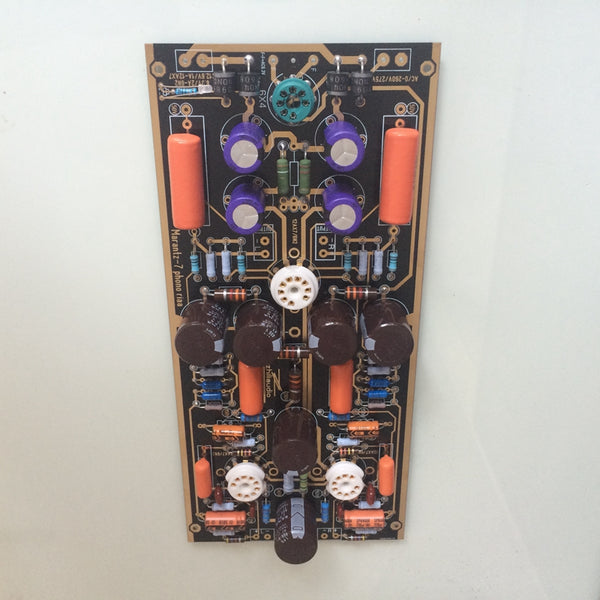

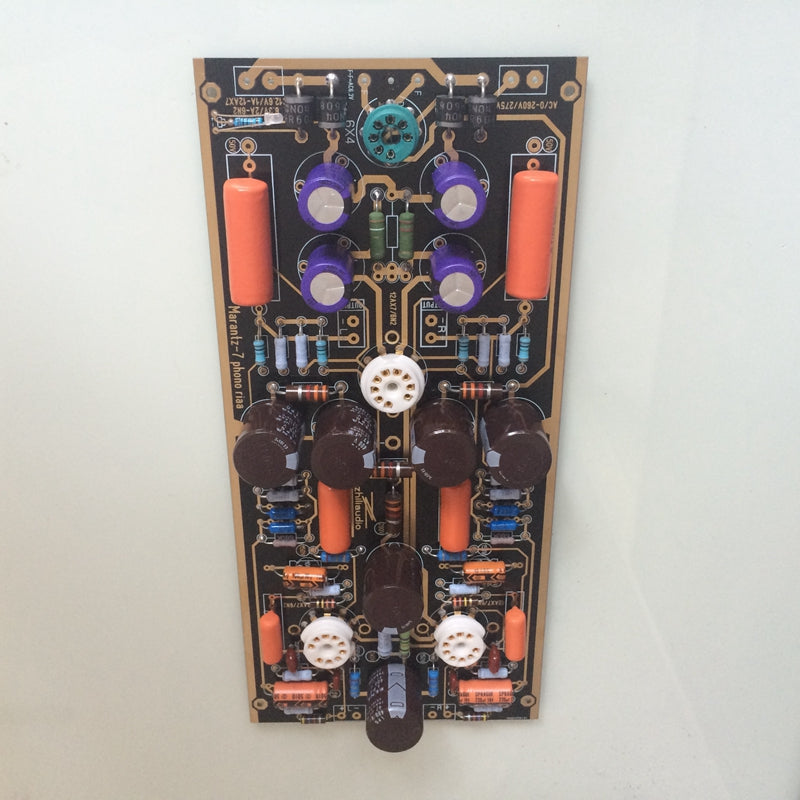

The shipping package includes the parts and components as below photo showed but they are not soldered (the photo only just reference).

WMM-MZ7(K)1



WMM-MZ7(K3)4

WMM-MZ7(K5) 5

WMM-MZ7(K6)6

WMM-MZ7(K7) 7







Effect for tube fixed and soldering



WMM-MZ7(K1)2



WMM-MZ7(K2)3









Sepecifications

1.     PCB size: 120mm x 260mm

2.     Requirements of secondary voltage of power transformer is:

a)       AC 250 to 270v group x 1 , current is greater than 30mA;

b)       AC12.6v x 1, current greater than 2A,

c)       6.3v group x 1  (rectifier as a tube)

3. Tube model requirements (THIS KIT don’t include any tubes)

a)    12AX7 x3pcs, plus rectifier tube 6X4 x 1pc;

b)    or 6N2 x 3pcs, plus rectifier 6Z4 x 1 pc (both 6.3v filament)





Circuit Diagram of the tube phono stage amplifier
