Finished PCBA Amplifier Board

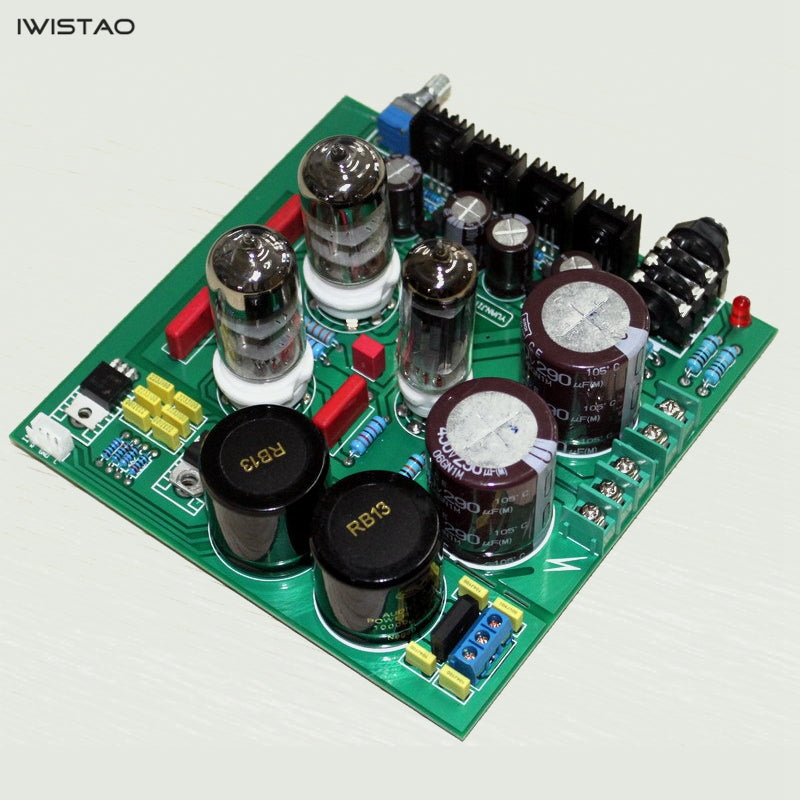

IWISTAO Tube Headphone Amplifier Class A Finished Board 6N3 and 6Z4 Rectifier Lehmann Circuit
Model No: WETVBA-LM6N3
This headphone amplifier finished board is designed to refer to Lehmann circuit which music performance is unquestionable. It adopts 6N3 tube plus cross coupling follower and the whole board works in class-A working state to set up the current of power is exceeds 40MA. The music performance of the unit is very good.
1. The preamplifier stage of the board is amplified by tube 6N3 and tube 6Z4 as a rectifier, and the power stage adopts Lehman headphone amplifier drive circuit! Using a tube for rectification, its sound is sweeter and smoother than the ordinary rectifier generally.
2. Uses original Toshiba BD139/BD140 and tube 6N3 tube and 6Z4.
3. The coupling capacitor adopts the top German imported Weimar capacitor. the electrolytic capacitor of the main signal circuit adopts brand Nichicon one. The main filter capacitor adopts 2pcs the gold word capacity NOVER10000UF/35V and the imported chemical 290UF/450V. And use LM317/LM337 regulator circuit to ensure a strong and continuous power support.
4. The resistor uses a five-ring 1% metal resistor to ensure a good signal-to-noise ratio.
5. First-class PCB quality. The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current.
6. The power amplifier board is reasonable and beautiful.
1. Transformer operating voltage requirements:
a) AC15V-0-15V (10W)
b) High voltage: AC150V-0-150V (10MA or more)
c) Filament voltage: AC6V (4A)
2. Applicable headphone impedance: 32 ohms - 600 ohms
3. Frequency response: 20HZ-20KHZ
4. PCB size: 140mm*140mm
