917 In stock

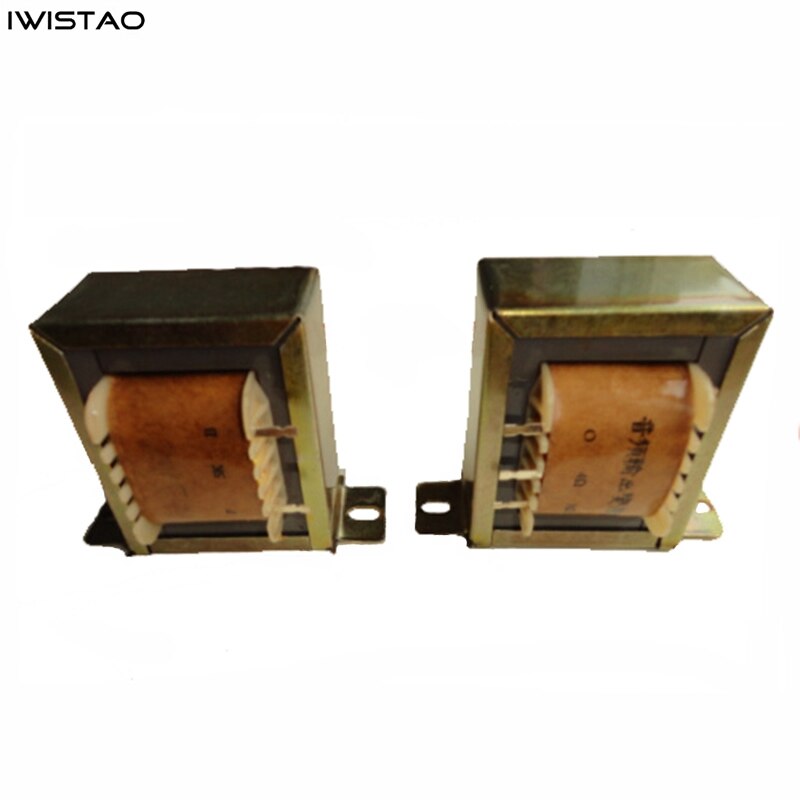

Tube Amplifier Output Transformer
IWISTAO Output Transformer Tube Amplifier Single-ended Primary Impedance 3.5k/5K 6.5W 6P1/6P6P/6P14/6V6 for Tubes Amplifier
Model No: WVTR-OT65WSE
1. Used cold-rolled non-oriented high silicon (H10/0.35EI) dedicated audio chip by Nippon Steel Company.
2. High-quality oxygen-free copper wire wrap wire, layered segments, each insulated with insulating paper, carefully wound.
3. Used advanced dipping process, so that the transformer has good insulation and moisture resistance.
4. Wiring using 20cm long leads, more convenient to use.
5. Sound transparent innocence, sweet tone warm and rich, an excellent solution clarity intensity.
6. Suitable for vacuum tube 6P1/6P6P/6P14/6V6.
1. Power: 6.5W
2. Frequency Response: 20z-30KHz (-2dB)
3. Core Specifications: EI66
5. Primary Impedance: 3.5k / 5K
6. Secondary: 0-4-8 ohms
7. Primary DC resistance: no less than 300 ohm
8. Dimension(L*W*H): 58mm*65mm*68mm
9. Installation holes diatance: 75mm
10. Weight: 0.88kg/pc
How to connect wires with tube and output
Just as an example only, you need confirm it according your tube for power amplification.
