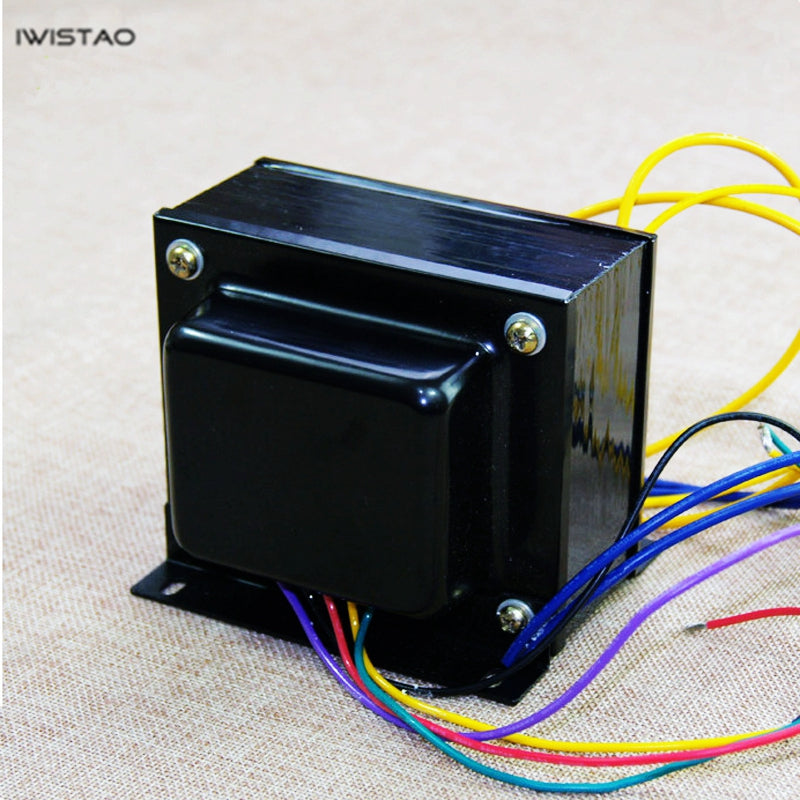

IWISTAO Tube Amplifier Output Transformer 100W Pull-Push Z11 Silicon Steel EI114*50 for KT88

20 In stock

Tube Amplifier Output Transformer

IWISTAO Tube Amplifier  20W Output Transformer Pull-Push Z11 Silicon Steel EI114*50  For Pull-push Tube Amp Power FOR KT88 Audio HIFI DIY    Model No: WVTRPP-100W   Adopt Z11 silicon annealing 0.35EI dedicated audio chips.    Features 1.    High quality thick nylon frame and high quality Japan Z11 annealed silicon steel flux H50. 2.    Effectively...
$129.90 $115.90
Save $14.00
Click to refer to Shipping Rate
+
-
$115.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

IWISTAO Tube Amplifier  20W Output Transformer Pull-Push Z11 Silicon Steel EI114*50  For Pull-push Tube Amp Power FOR KT88 Audio HIFI DIY


Model No: WVTRPP-100W



Adopt Z11 silicon annealing 0.35EI dedicated audio chips.



Features

1.    High quality thick nylon frame and high quality Japan Z11 annealed silicon steel flux H50.

2.    Effectively isolated electromagnetic interference with iron paint shell.



Product Specifications

  1. Core Size: 38MM * 50MM
  2. Winding way: 3 folder 2 fragment wound
  3. Frequency response: 30HZ -30KHZ
  4. Inductance (P1-P2): L> = 116H @ 100HZ
  5.  Primary Impedance: 5K ohm
  6. Secondary Impedance: 0-4-8 o
  7. Insulation treatment: immersion insulating paint
  8. Core material: Imported Japan Z11 0.35MM thick insulation annealed sheet stack thickness 50mm, outsourcing black Mara plastic
  9. Shielding way: side cover shield
  10. Weight: 4.6KG

WVTRPP-100W(1)lWVTRPP-100W(2)WVTRPP-100W



Wire Connection Diagram

Only for you information.

Wire Connection Diagram of UL Transformer_



NOTE:

we provide you some items and components for your DIY. If you have enough capablities for circuit-reading, electronical components knowledge, assembling, soldering and problem-solving, you can buy them to enjoy DIY. If not, please don't buy them. We only provide limit technology support in this individial items itself.
