189 In stock
Tube Amplifier Output Transformer

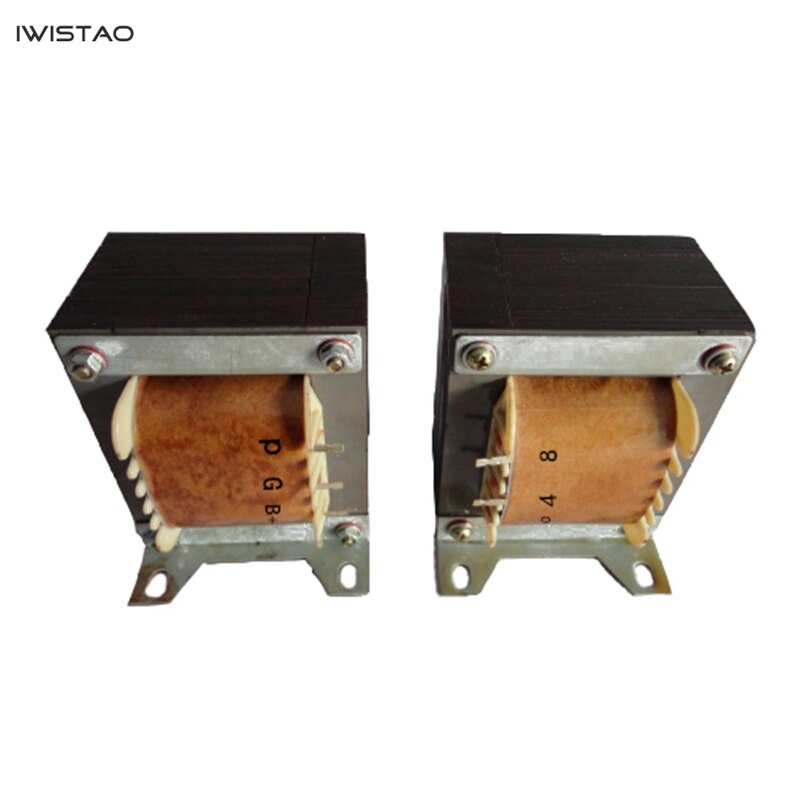

IWISTAO Tube Amplifier 30W Output Transformer EI96 Z11 Single-ended Silicon Steel PR 2.5K/3.5K for 300B 2A3 Audio HIFI DIY
Model No: WHFT-OT30W
Adopt High silicon annealing 0.35EI dedicated audio chips. High quality thick nylon frame and high quality Japan Z11 annealed silicon steel flux H50.
1. Primary impedance : 3.5K or 2.5K
2. Secondary : 0 - 4 - 8 ohms
3. Frequency: 20-30K Hz (-2dB)
4. Core (mm) width × stacked thick: 32 × 50 (EI96)
5. Applicable tubes: 2A3, 300B, EL156, KT88, FU13 (for single and two tubes)
6. Vertical installation
7. Size(L*W*H): 80mm*85mm*96mm
8. Weight: 6kg / pair
