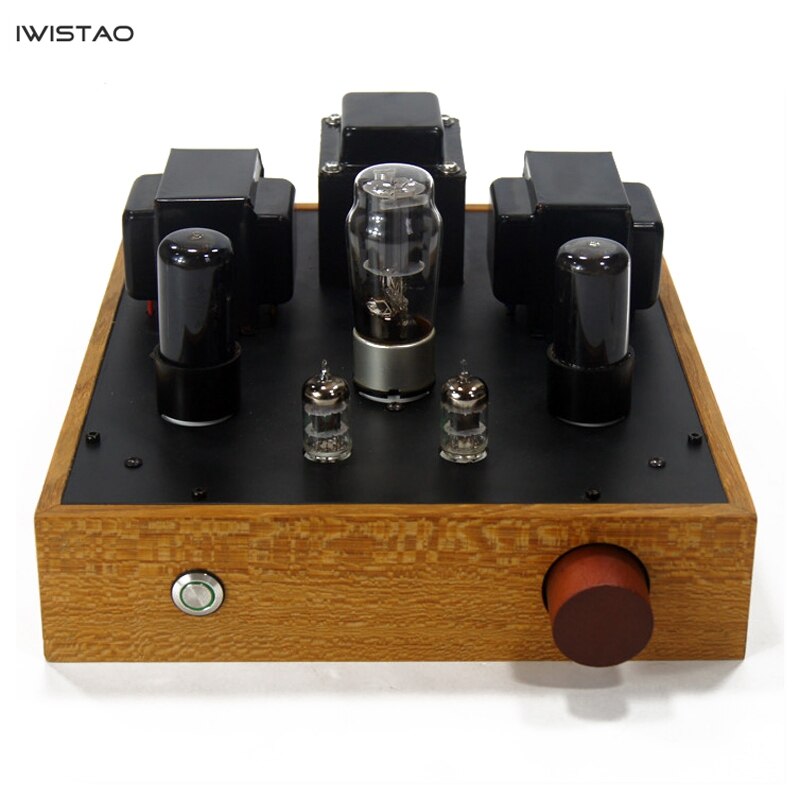

IWISTAO Tube Amplifier 2X4.8W Single-ended Class A Tube 6J1 Drive 6P6P 5Z4P Rectifier Retro-style Wood Casing

191 In stock

Single-ended tube amplifier

To add this product to your wish list you must Sign In or Create an account

IWISTAO Tube Amplifier  2X4.8W  Single-ended Class A Tube 6J1 Drive 6P6P 5Z4P Rectifier Retro-style Wood Casing    Model No: WVTA-6P6P(SW)   Tube 6p6p (or 6v6) is specifically designed and developed power output tube for the audio field, sound performance had been proved since it hit market, whenever savored carefully, nostalgic thoughts...
$209.90
Voltage
+
-
$209.90
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

IWISTAO Tube Amplifier  2X4.8W  Single-ended Class A Tube 6J1 Drive 6P6P 5Z4P Rectifier Retro-style Wood Casing



Model No: WVTA-6P6P(SW)



Tube 6p6p (or 6v6) is specifically designed and developed power output tube for the audio field, sound performance had been proved since it hit market, whenever savored carefully, nostalgic thoughts immediately felt.



Make this power amplifier is based on the classic circuit of 6p6p (6v6) power tube, and we select HIFI components and parts to create this Class A single-ended tube amplifier, sound satisfactory by users, we would like to share it with all fans!



WVTA-6P6P(SW)1lWVTA-6P6P(SW)1l1WVTA-6P6P(SW)1l2



WVTA-6P6P(SW)1l3



Inside View

WVTA-6P6P(SW)1l4







Features

  1. With all retro-style wood cabinet, not only solid and durable, but also easy to perfect match with wooden speaker

  2. Adopts tbue 6J1 to drive 6P6P (or 6V6)

  3. Power section adopts 5Z4P tube as a rectifier. C (capacitance) L (5H 0.2A chok coil) R (resistance) C multi-stage filtering, high signal-to-noise ratio.



  4. Adopt all AC filament lighting, close to the speaker with sensitivity of 90DB, can hardly hear a little AC noise.



  5. Tubes adapted new production inventory of Shanghai, Beijing, Shuguang, and their parameters have been detected and paired accordingly when assembly, which ensures the balance of the left and right parameters!

  6. Adopts BC HIFI coupling capacitors, and gold-plated speakers terminals.Using metal film resistors and imported electrolytic capacitors with an accuracy of up to 1%, coupled with our company's custom-made film TE MKP copper-foot film capacitors (the sound quality is better than WIMA).

  7. Its volume potentiometer uses Japanese ALPS 16 type potentiometer to ensure clear positioning and left-right balance high-quality 100k double volume Potentiometer.

  8. Its single-ended output transformer (5 kilohms: 4 ohms: 8 ohms) is specifically tailored oriented for this power amplifier, especially in the design of the output parameters according tuning sound method, which lead to it is a unique skill to reproduce human voice.



Specifications

1. Rated Output Power: 2 x 4.8W

2. Frequency response: 20Hz-20 KHz

3. Total Distortion: 1% ( 1 kHz)

4. Input sensitivity: 500mV-- 2000Mv

5. Input impedance: 100k Ohm

6. Output impedance: 4 or 8 Ohm

7. Signal to Noise Ratio : > 97 dB

8. Amp Size (W * D * H): 350 mm * 230mm * 20mm

9. Colors: as photos showed

10. Weight: 8kg

11. Accessories:

6J1 tube X 1

6P6P (or 6v6) tube X 2

5Z4P tube X 1

Power cord x 1



Note: This amp can match with those full-range speakers that is 3-5 inches, and sensitivity is 90dB or above perfectly! If your speakers is low sensitivity, it was suggested to buy other several high-power tube amplifiers proper.
