Tube Amplifier Output Transformer

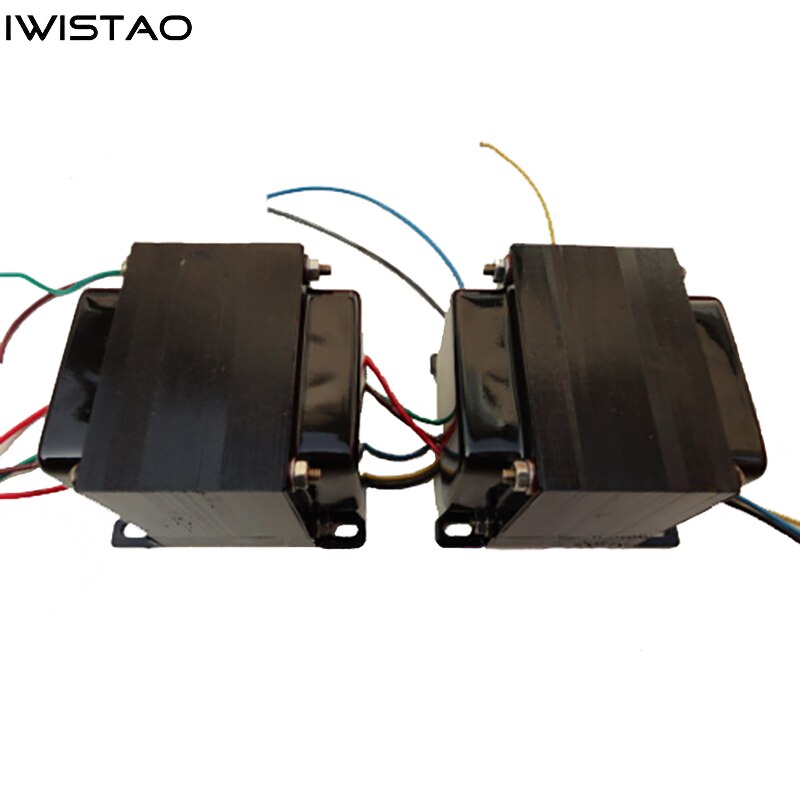

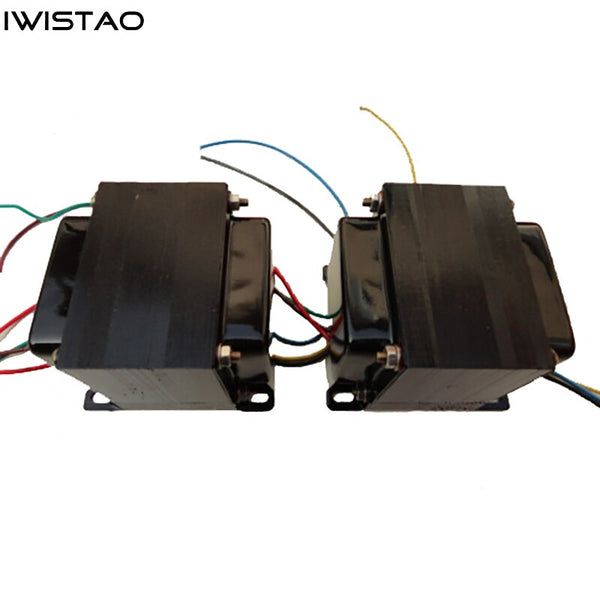

IWISTAO Tube Amplifier 18W Output Transformer EI76 Z11 Single-ended Silicon Steel PR 3.5K for 6P3P EL34 KT88 FU50 FU7 300B Audio HIFI DIY
Model No: WHFT-OTSE18W
Adopt High silicon annealing 0.35 EI dedicated audio chips.High quality thick nylon frame and high quality Japan Z11 annealed silicon steel flux H50.
1.Primary impedance : 3.5K
2.Secondary : 0 - 4 - 8 ohms
3. Frequency: 20-30K Hz (-2dB)
4. Core (mm) width × stacked thick: 25 × 50 (EI76)
5.Applicable tubes: P3P EL34 KT88 FU50 FU7 300B
6. Vertical installation
7. Size(L*W*H): 76mm*50mm*66mm
8. Weight: 4.8kg / pair
