IWISTAO Super Tweeter Base Solid Wood Brand New Original Fostex FT17H UHF Compensation 5 k~ 35 kHz for Full Range Unit

50 In stock

HIFI Speakers

To add this product to your wish list you must Sign In or Create an account

IWISTAO Super Tweeter Base Solid Wood Brand New Original Fostex FT17H UHF Compensation 5 kHz ~ 35 kHz for Full Range Unit   Model No: WHFSC-SHTFT17H   The model FT17H is an easy to use high performance horn tweeter. With its precisely engineered horn part and specially made diaphragm, it...
$289.00
Click to refer to Shipping Rate
color
Red Brawn
Original Wood
+
-
$289.00
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

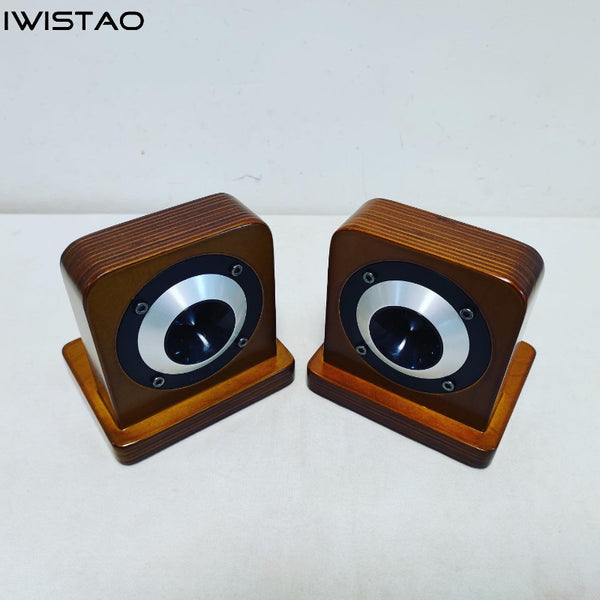

IWISTAO Super Tweeter Base Solid Wood Brand New Original Fostex FT17H UHF Compensation 5 kHz ~ 35 kHz for Full Range Unit



Model No: WHFSC-SHTFT17H



The model FT17H is an easy to use high performance horn tweeter. With its precisely engineered horn part and specially made diaphragm, it offers sharp sound and high efficiency. Its magnetic circuit is constructed with low magnetic leakage, and it can be used as a plus-one tweeter for main speaker system just with plain network. It is suited to use in combination with Fostex FE-series or FF-series full range speaker drivers. The Fostex FT17H features a frequency response that extends out to 50 kHz and has a high sensitivity, rated at 98.5 dB / 1W / 1m. The nominal impedance of the FT17H horn tweeter is 8 ohms making the horn tweeters easy to drive even with small amplifiers. The FT17H horn tweeter uses a shielded magnet. The overall weight of the FT17H tweeter is 340 g (0.75 lbs). Included with the horn tweeter are mounting screws and a datasheet.  A gasket comes affixed to the tweeter housing.



The build quality of the Fostex FT17H horn tweeter is good for the price range.  The horn super tweeter offers a crisp high frequency response that extends out well past the audible range.  Provided that a crossover point in-excess of about 10 kHz is used, the performance is very good.  The FT17H is ideal for mounting in an enclosure - front and rear firing.  The FT17H offers high cost performance and is well suited for added that last little bit of sparkle and air to high sensitivity speaker systems. From the Fostex FT17H datasheet a crossover frequency of 5 kHz or more is recommended.  We have had good results with this tweeter using a first-order crossover in the 10 to 15 kHz range.  You can use an L-Pad attenuator to match the tweeter level to your speakers.  The low cost FT17H is ideal for use as a rear mounted super tweeter.


With a pair of 2.2UF non-polar audio capacitors, use the full-range speaker in parallel, put the speaker on the top as a Ultra high frequency compensation, make your full-frequency system even better!



WHFSC-SHTFT17H(13)_2l

FT17H2



Original Wood

Red Brawn

Details

FT17H_fr



FT17H1

Specifications

Super tweeter unit: Fostex FT17H

  1. Input: 30 W (Music)
  2. Type: 16 mm horn tweeter
  3. Impedance:8 Ω
  4. Frequency Response:5 kHz ~ 35 kHz
  5. SPL: 96 dB/W (1 m)
  6. Cut-off Freqeuncy:2.6 kHz
  7. Recommended Cross-over Frequency: 5.0 kHz or higher
  8. Magnet Weight: 113. 5 g
  9. total Weight:340 9



ft17h



Tweeter base

  1. Material: solid wood
  2. Size(W*H*D): 100mm*100mm*115mm
  3. Quantities: 1 pair
  4. Weight: 2kg/pair
  5. 2.2UF non-polar audio capacitors x 2pcs

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

The photos below is for the last version

WHFSC-SHTFT17H(1)_2l

WHFSC-SHTFT17H(11)_l
