 IWISTAO Single-ended Tube Amplifier Class A 2X4.8W 6J10 Drive 6P6P Retro-style Bamboo-wood Casing Scaffolding Soldering



Model No: WVTA-6P6P(S)

Tube 6p6p (or 6v6) is specifically designed and developed power output tube for the audio field, sound performance had been proved since it hit market, whenever savored carefully, nostalgic thoughts immediately felt.



IWISTAO Single-ended Tube Amplifier Class A 2X4.8W 6J1 Drive 6P6P Retro-style Bamboo-wood Casing Scaffolding Soldering from IWISTAO HIFI AUDIO on Vimeo.



Make this power amplifier is based on the classic circuit of 6p6p (6v6) power tube, and we select HIFI components and parts to create this Class A single-ended tube amplifier, sound satisfactory by users, we would like to share it with all fans!

WVTA-6P6P(S 8X8)



WVTA-6P6P(S1 8X8)



WVTA-6P6P(S2 8X8)



\





Bottom View

WVTA-6P6P(A11l)

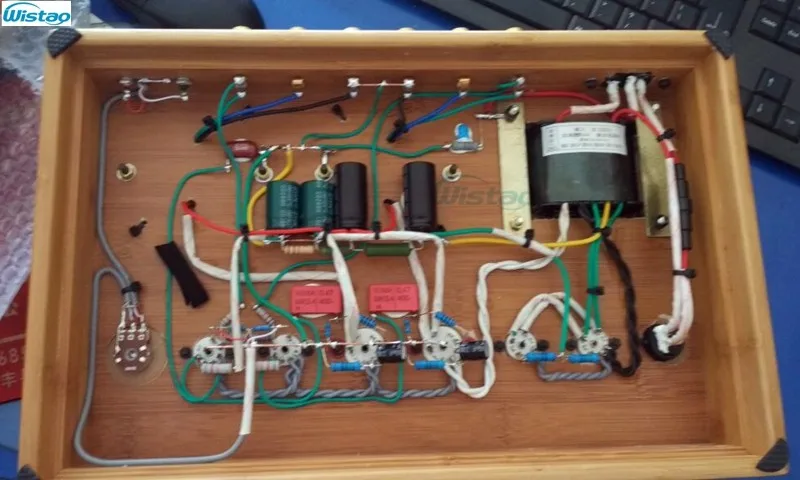

Inside View



WVTA-6P6P(31l)





Features

  1. With all retro-style bamboo-wood cabinet, not only solid and durable, but also easy to perfect match with wooden speaker.
  2. Traditional scaffolding soldering process by manual.
  3. Adopts tbue 6J1 to drive 6P6P (or 6V6)
  4. Power section adopts parallel dual 6z4 tube as rectifier.
  5. Tubes adapted new production inventory of Shanghai, Beijing, Shuguang, and their parameters have been detected and paired accordingly when assembly, which ensures the balance of the left and right parameters!
  6. Adopts BC HIFI coupling capacitors, and gold-plated speakers terminals, high-quality 100k double volume Potentiometer.
  7. Its single-ended output transformer (5 kilohms: 4 ohms: 8 ohms) is specifically tailored oriented for this power amplifier, especially in the design of the output parameters according tuning sound method, which lead to it is a unique skill to reproduce human voice



Specifications

1. Rated Output Power: 2 x 4.8W

2. Frequency response: 20Hz-20 KHz

3. Total Distortion: 1% (@ 1 kHz)

4. Input sensitivity: 500mV-- 2000Mv

5. Input impedance: 100k Ohm

6. Output impedance: 4 or 8 Ohm

7. Signal to Noise Ratio : > 89 dB

8. Amp Size (W * D * H): 350 mm * 230mm * 20mm

9. Colors: as photos showed

10. Weight: 6.1 kg

11. Working Voltage: 220V/50Hz

12. Accessories:

6J1 tube X 1
6P6P (or 6v6) tube X 2
6Z4 tube X 2
Power cord x 1



Note: This amp can match with those full-range speakers that is 3-5 inches, and sensitivity is 90dB or above perfectly! If your speakers is low sensitivity, it was suggested to buy other several high-power tube amplifiers proper.
