HIFI Transistors Power Amplifier

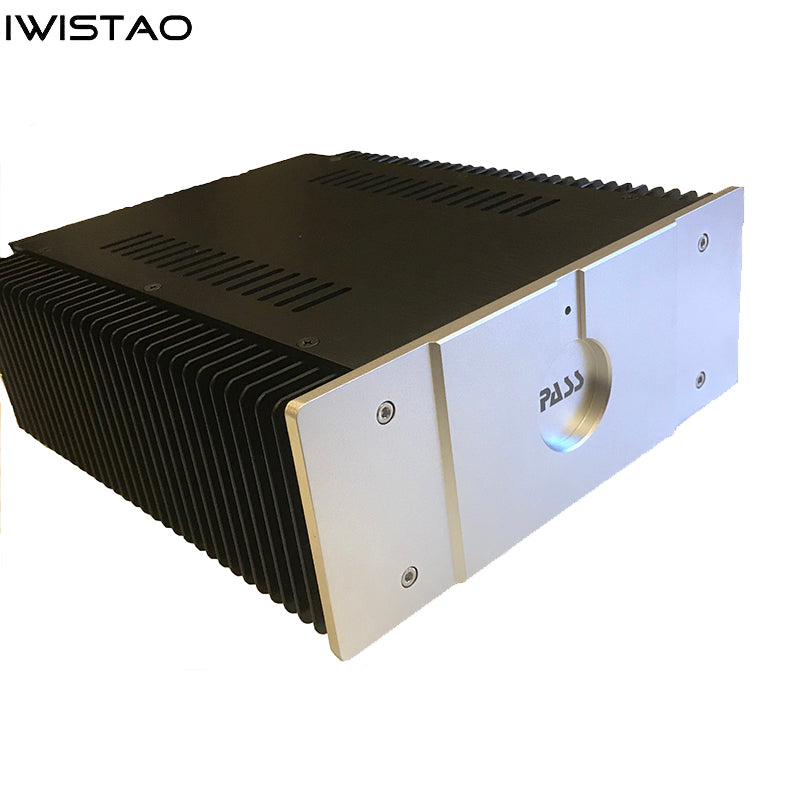

IWISTAO Single-ended DC Pure Class A Warm Sound Gold Sealed FET Finished Power Amplifier Post-stage Amp Pass ACA for Electronic Frequency Division
Model No: WHFA-PASS5WECR
The PASS ACA single-ended DC class A power amplifier with gold-sealed Field Effect Tube is designed to provide a warm and high-quality sound suitable for electronic crossover power amplifiers. Its characteristics include a black background and silent operation, and it has an output power of 5 watts which is similar to that of tube amplifiers.
This machine is a pure post-stage design and requires a pre-amplifier for optimal performance. Without a pre-amplifier, the sound may be small, and the low frequency may lack momentum.
The PASS ACA power amplifier has gained popularity since its launch, and has received positive feedback from enthusiasts for its extraordinary sound quality. It provides a soft and durable listening experience, especially when listening to vocal albums. The machine has moderate heat generation, with a quiescent current of about 1A, and can survive the summer with a radiator of about one kilogram.
1. The circuit of the entire machine is simple and clear. It adopts a single-ended Class A form with good sound quality. Although the output power is not as high as other amplifiers, its thrust can surpass the normal IC integrated circuit with a nominal value of over 50 watts.
2. The circuit board is made of 1.6mm FR-4 board.
3. The resistor is made of 0.5W DALE or carbon film, and the 4 emitter-grade resistors are Panasonic off-white 3W resistors used by PASS.
4. The two capacitors that affect the sound use SPRAGUE 82D10u 3300UF.
5. The output power tube adopts the American Harris IRF250 gold-sealed field effect tube, which has a large output current, low internal resistance, and extraordinary sound quality.
6. The transformer uses an imported Z110.35 hand-wound fever 120VA EI cattle, and the output voltage is double 20V, which is quiet and vibration-free. The temperature of full power operation is just warm.
7. The power supply part uses ON series 6A large wheel tube, and 4 pieces of 4700uf UCC capacitors.
8. The background noise is very low and can’t be heard even close to the speaker, resulting in a full black background.
9. The solid all-aluminum chassis makes full use of the entire space.
1. Output power: 6 watts.
2. Magnification: about 5 times.
3. Voltage gain: 14dB.
4. Input impedance: 10K ohm.
5. Dimensions(D*W*H): 260mm*222mm* 90mm.
6. Weight: 6kg.
7. Quantities: 1 piece
8. Accessories: power cord x 1
