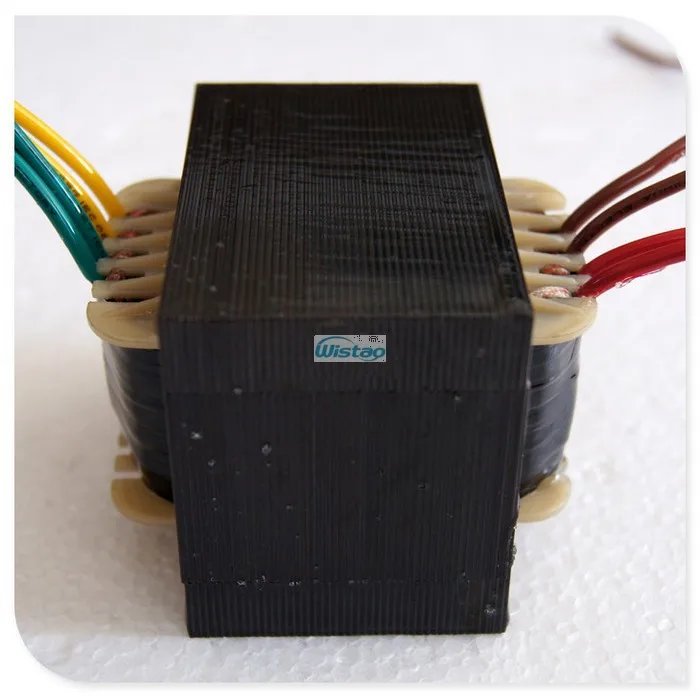

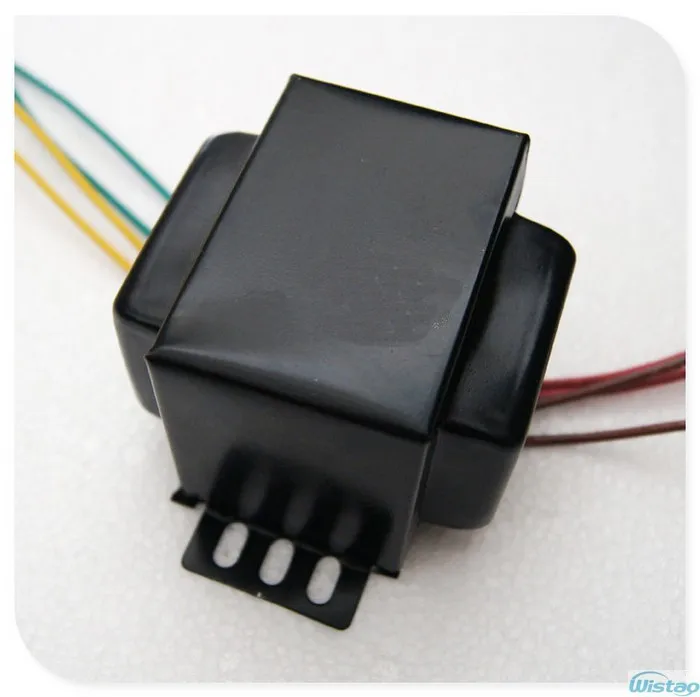

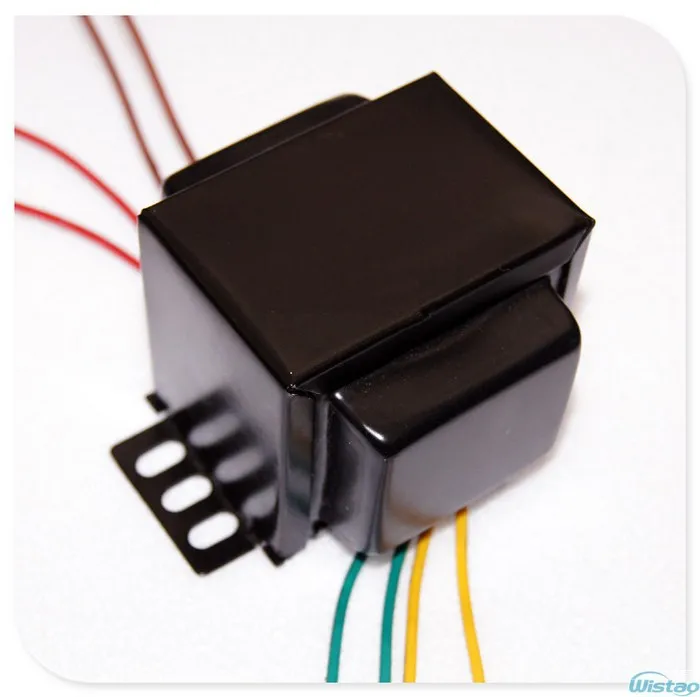

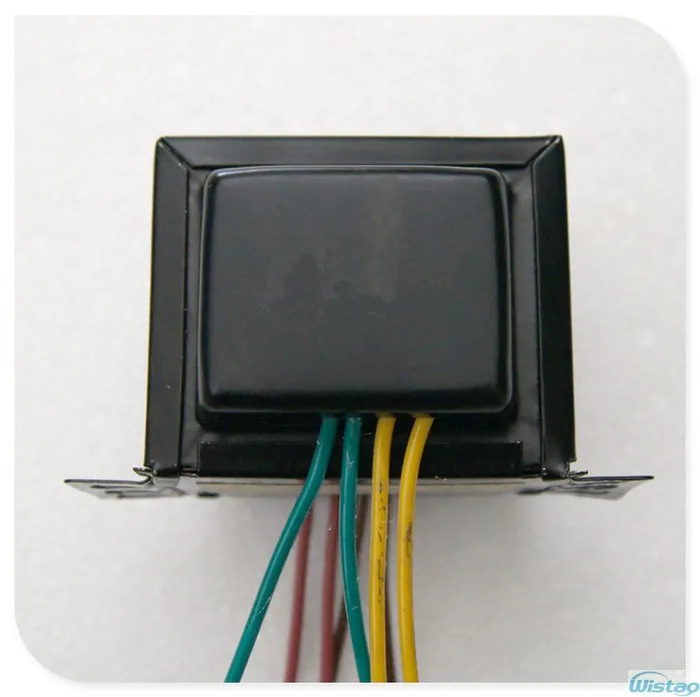

Tube Amplifier Power Transformer
IWISTAO EI Power Transformer for Tube Pre-amplifier Output voltage 230V 0.1A 6.3V 1A 13V 1.4A HIFI Audio DIY
Model No: WHFT-PA003-T
1. High quality thick nylon frame and high quality domestic annealed silicon steel flux H50.
2. Effectively isolated electromagnetic interference with iron paint shell.
1. Input voltage: AC220V/50Hz
2. Output voltage: 230V 0.1A; 6.3V 1A; 13V 1.4A (other specifications can be customized output voltage, duration is generally 3 days, please leave a message to purchase the output voltage and current for each group)
3. Frequency characteristics: low
4. Core shape: EI-type
5. Core material: Domestic new high-quality steel sheet thickness 0.5MM annealing
6. Coil material: pure copper
7. Skeleton Shape: racer
8. Moisture-proof way: Open, outsourcing Mara plastic
9. Cooling: Natural cooling
10. Structure: single-phase transformer
Width 66mm, high 55mm, stacked thick 45mm, skeleton thick 68mm;
Distance of fixed from front to back and left to right is 55mm.
12. Net weight: 1.35kg
