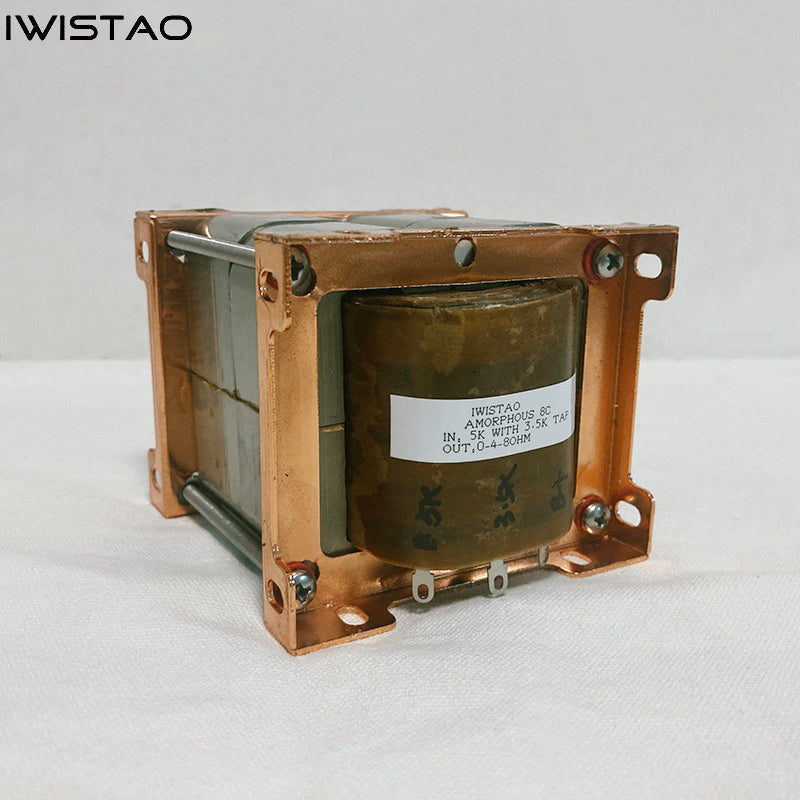

IWISTAO Output Transformer C Type Single-ended British Amorphous 8C Advanced Core Pr 5K with 3.5K Tap
83 In stock
Tube Amplifier Output Transformer
To add this product to your wish list you must Sign In or Create an account
Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).
IWISTAO Output Transformer C Type Single-ended British Amorphous 8C Advanced Core Pr 5K with 3.5K Tap Se 0-4-8 ohms
Model No: WVTR-OT355k(8C)
This single-ended output transformer uses British amorphous high-grade C-type iron core that has a unique advantage, especially when its static operating point is 80ma or below , it can give full play to the advantages of the output transformer. After actual measurement and listening, the voice is very vivid, clear, low-frequency tension is very balanced in three bands, excellent permeability and atmosphere feeling.
Using high-quality enameled wire, lamination process, CNC drying, vacuum impregnation, well-designed 8C structure, to design to a perfect coefficient.
Specially, its primary is 5K but with 3.5K tap. 3.5k is for tube 300B, and 5k is for tube 6P1 6P14 EL84 6P6P 6V6.
It is a better choice to tube amplifier audiophiles.
PS: A stereo tube amplifier need 2 pcs output transformers.
1. Power: 8W
2. Material: British amorphous 8C advanced core
3. Primary impedance: 5K ohms with 3.5k ohms (80-100ma) tap
4. Secondary impedance: 0-4-8 ohms (16 ohm output can be ordered)
5 Inductance: 16-17H
6. Bandwidth: 20HZ- 35KHZ(-1DB)
7. Size(W*H*D): 86*88*75mm
8. Weight: 1.9kg/pc
Application with the output transformer (the photos only for you information)
