Finished PCBA Amplifier Board

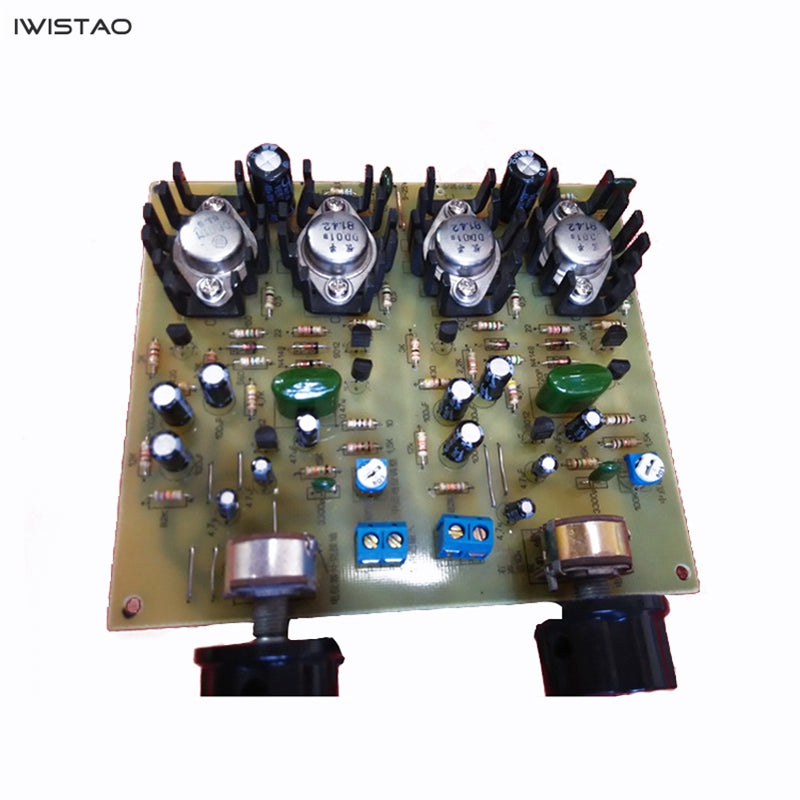

IWISTAO OTL Power Amplifier Finished Board Transistor Discrete Component 2X10W No Including Power Transformer
Model No: WHFB-SPPAB-10
This is a transistor discrete component power amplifier with OTL output. It has been used as a sound amplifier in a variety of TV sets. This circuit is stable, has wide voltage adaptability, beautiful sound quality, and large output power. The amplifier has a wide sound range and sufficient power margin. Whether listening to music or listening to both men and women, the sweet, mellow feeling is endless.
To this end, we specially made this circuit into a kit, selected all the components, and carefully designed the circuit board to ensure that each DIY can be installed, let everyone experience the magical charm of the transistor discrete component amplifier!
The power amplifier has two power amplifier transistors, one is a plastic sealing one TIP41C, and the other is a metal sealing one DD01 and a finger-type radiator in the 80s, which has a strong nostalgic complex.
Note: Two potentiometers, one for volume control and one for tone control.
Please note that the sold item doesn't include the potentiometer knobs.
