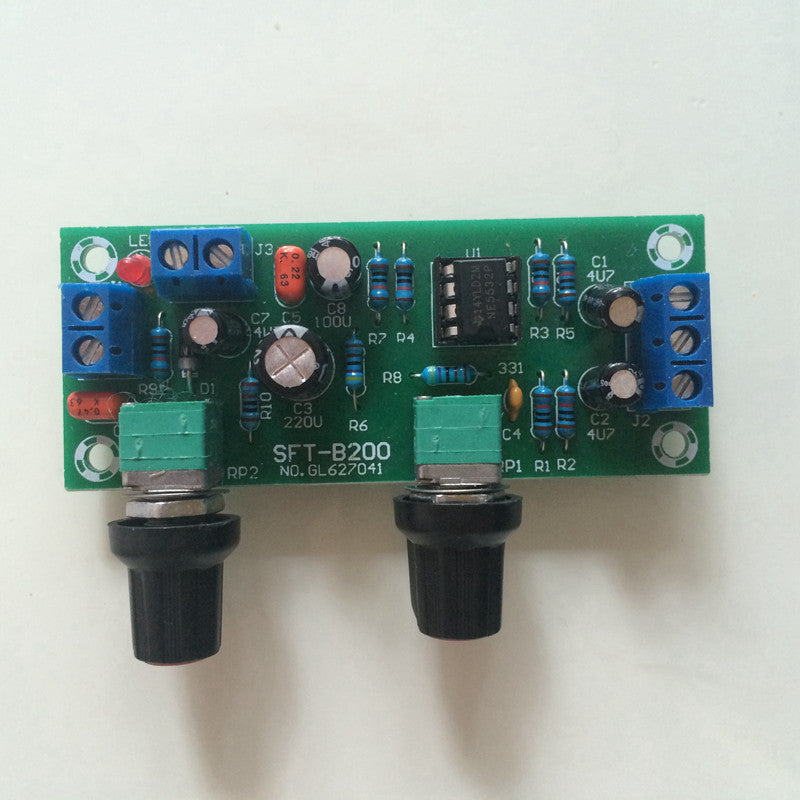

IWISTAO Low-pass Filter Finished Board Subwoofer Crossover Board Deep Bass for 2.1 System

997 In stock

HIFI Active Crossover

So-called low-pass filter is to filter out the human voice and treble part, and retain low frequency part is amplified to improve bass reproduction efforts. It will not be heard the human voice as well as high-frequency sound when playing the instrument. This finished board will work as the function....
$11.00
+
-
$11.00
Wishlist

To add this product to your wish list you must Sign In or Create an account

So-called low-pass filter is to filter out the human voice and treble part, and retain low frequency part is amplified to improve bass reproduction efforts. It will not be heard the human voice as well as high-frequency sound when playing the instrument. This finished board will work as the function. The buyer must understand this knowledge, in order to avoid the only, do not know how to use.

Special note: This board is a subwoofer preamp board, and it is not connected with the speaker directly, it must be connected to the board of power amplifier stage, then make active subwoofer to sound.

Features
1. All elements featured a new product, the choice of the original frequency-adjusting capacitor is CBB capacitance, potentiometer adjusted one is sealed type selection, input and output terminals use pure copper terminals, wiring is very convenient.
2. Adopt Op amp IC seat, you can always replace the op amp as your favorite which op amp brings different effects experience to enhance playability.
3. The design of real-time monitoring power status LED indicator.
4. This board PCB design is simple and beautiful, reasonable layout, making the board has a very high signal to noise ratio, strong anti-interference ability. Close to the speaker when no signal almost hear the noise.

Specifications
1. Power supply voltage: DC10-24V DC single power supply
2. Frequency range: 22Hz-300Hz
3. Audio Input: mono or two-channel
4. Audio output: Mono
5. PCB specifications: 78mmx32mm, Thickness: 1.6m
6. PCB material: FR-4 super-hardness glass plate
7. Finished PCB Weight: 30g
8. PCB fixing holes center to center distance: 70mmx24mm, hole diameter: 3.2mm
9. Potentiometer shaft center spacing: 32.5mm
10. Accessories
Knob x 2

Package List

1 x Low-pass Filter Finished Board
