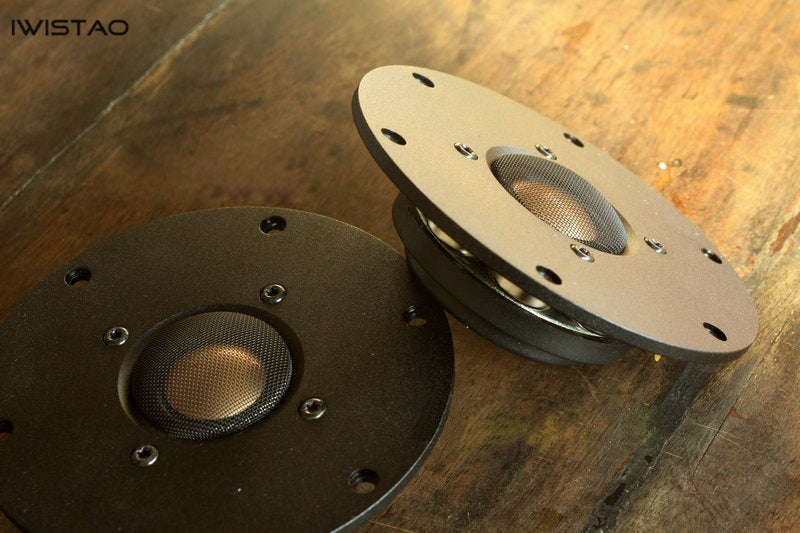

IWISTAO Silk Edge Beryllium Copper Film Tweeter Driver Unit  Neodymium Magnetic 104 /106 mm Lightweight Aluminum Alloy Panel



Model No: WHFST-CBNE104



The tone of this tweeter unit is flat, light and bright, delicate and clear, with high resolution, good high-frequency extension, super clear details, thick texture of vocals, and elasticity of violin bow strings, especially suitable for musical instruments with metallic texture , Such as saxophone, classical, symphony and other music.


WHFST-CBNE104(4) lWHFST-CBNE104(5)lWHFST-CBNE104l



Features

1. This horn diaphragm is made of copper alloy with beryllium (Be) as the main alloy element and has a thickness of 0.015mm (1.5 wires). It is much thinner than the aluminum diaphragm and titanium diaphragm. It has a large circle of natural silk membrane connected to the voice coil. Utilizing the strength and toughness of silk, under the combined effect of the two, the audio analysis ability is very strong, that is, the delicate and durable hearing with silk film, and the splendor and broadness of brass instruments.

2. Strong magnetic circuit composed of 8 rare earth neodymium magnets. There is a 0.15mm copper short-circuit ring at the T iron position, which can obviously eliminate the influence of the voice coil inductive reactance and suppress the increase of the voice coil inductive reactance with frequency. Improve high-frequency radiation and reduce distortion.

3. Cooling magnetic fluid with damping and positioning function inside the voice coil. The influence of magnetic fluid on the audio curve is very large. It not only has a cooling effect, especially the sealing performance. Good magnetic fluid plays a decisive role in smooth sound at high frequencies. It can smooth the curve and the voice coil is in the magnetic fluid. Reciprocating motion, the magnetic fluid plays the role of automatic centering, which greatly changes the internal resistance of the horn, especially the air sense of the sound, while the magnetic fluid horn sounds a sharp burr.

4. The 104-diameter frosted aluminum alloy panel made by Seiko is more solid than the general dome tweeter plastic panel and has a gasket on the back. Can directly replace other tweeters.



Specifications

1. NOMINAL IMPEDANCE: 6Ω

2. NOMINAL POWER: 30W

3. Sensitivity (1W, 1m): 93DB

4. Frequency range: 625HZ-40kHz (can be used as a super tweeter)

5. Recommended crossover point above 2.5K Hz

6. Diameter of the panel: 104mm or 106mm

7. Weight: 615g



104 Panel

WHFST-CBNE104(3)l



106 Panel

Note: The diaphragm of this beryllium copper film is very thin. Do not touch it with your hand or pinch it with something. If the diaphragm is recessed, it cannot be recovered, please pay more attention it.



Applications



WHFST-CBNE104(7)lWHFST-CBNE104(11)_l

WHFST-CBNE104(8)_l
