188 In stock
HIFI Passive Crossover
IWISTAO Independent Treble Adjustable Crossover 2.6 3 4.5K Impedance 4-6-8 ohm Speakers Unit 120W HIFI Audio DIY
Model No: WHF-INCRTW

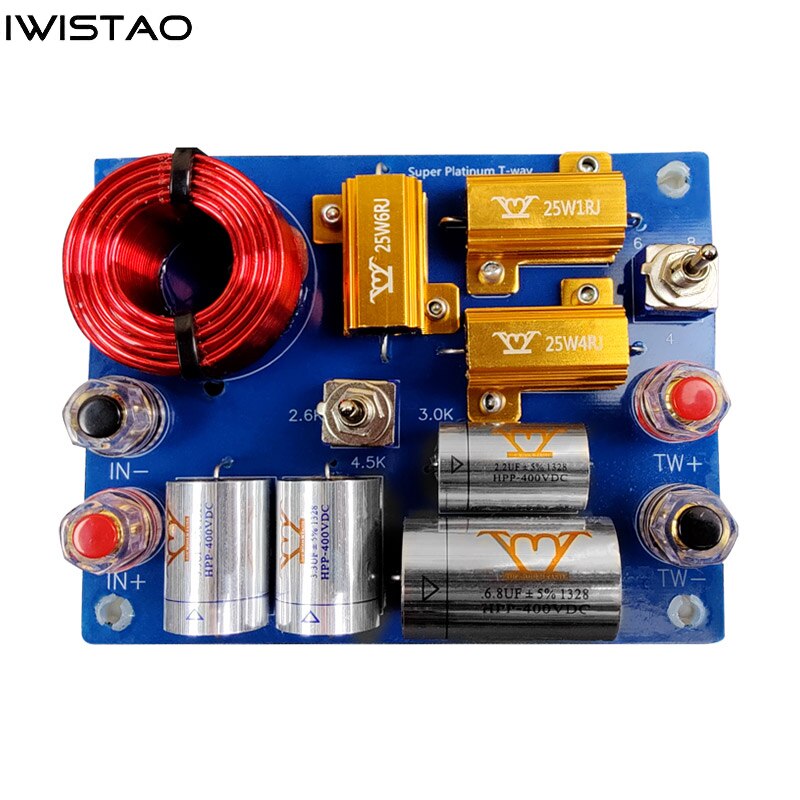

This is a HIFI independent tweeter crossover for DIY your speaker cabinet.
Its inductors mining is 6N copper wire wound with low resistance and low copper loss. Resistor adopt 25 W metalsealed noninductive resistance, which can fast heat dissipation, also high frequency capacitor all use HHP polypropylene film capacitor which is the advantage for high
frequency loss angle is smaller and response speed is faster.
It is suitable for tweeter unit.
PS: 1pc crossover for 1pc HIFI speaker cabinet.
1. Maximum Power: 120W
2. Suitable impedance of speaker unit: 4-6-8 Ω adjustable.
3. Filter characteristics: 18 dB / otc
4. Crossover point: 2.6 / 3 /4.5 KHz adjustable
5. Dimensions (L * W ): 120mm * 95mm
6. Net Weight: 0.3 KG
