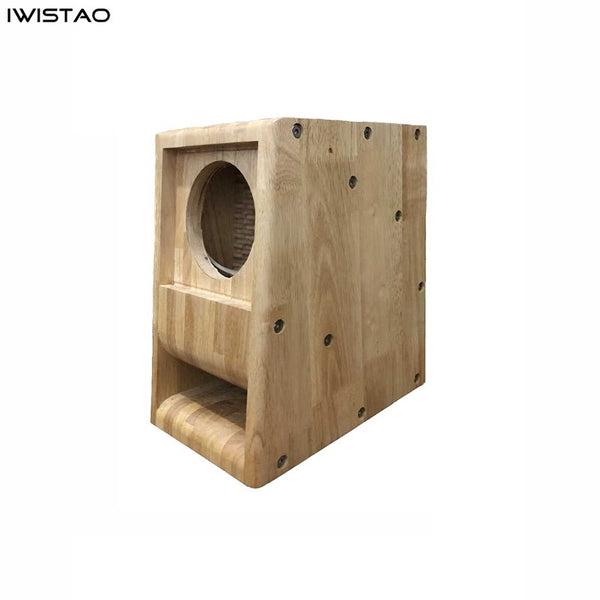

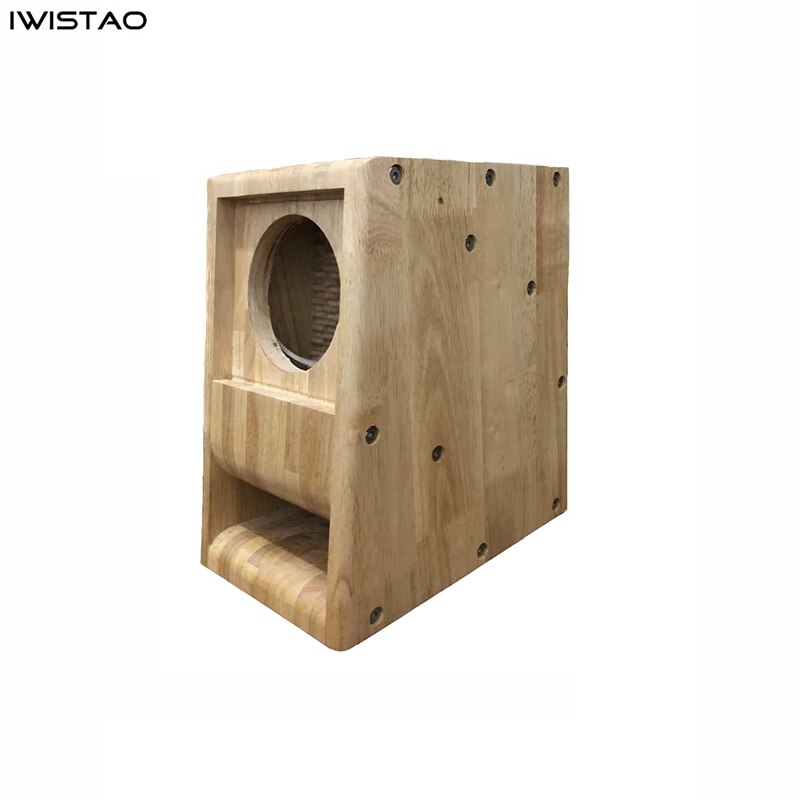

IWISTAO HIFI Speaker Empty Cabinet 5 Inches Finished Labyrinth Structure with Solid Wood for Full Range Speaker Unit
Model No: WHFSC-FR565WLC-5
Speaker cabinet adopt double back guide pipe, its return passage measured about 1.6 meters, and sound quality is relatively pure. Its panel can be replaced if you have spares.
All Material: plate is solid wood;
Back view (No including the cables)
1. The thickness of the front baffle is 15mm, which ensures that it is fixed to the panel and is firm and reduces resonance.
2. The wave body structure is adopted in the cavity to effectively prevent the sound waves from forming standing waves
3. The channel of the labyrinth speaker adopts an involute design, and the channel cross-section height is gradually increased, further amplifying the low frequency.
4. Use 19mm thick base to increase the weight and reduce the resonance of the speaker.
1. Material: solid wood.
2. 5 inches cabinet (W*H*D): 198mm*330mm*(up:240mm, bottom: 282mm), Weight: 16kg
4. Panel: 2pcs
1). According to the buyer speaker size to cut holes, buyers please leave the details for cutting-holes, otherwise as default size of the hole,
2). the default szie is 122mm as though hole
If the countersunk holes are cut, the error will be 1mm based on your drawing.
