IWISTAO HIFI Mini Tube Amp 2x3W Class A Single-ended 6J1 Preamp 6P1 Power Stage Amp 110~240V

20 In stock

Single-ended tube amplifier

To add this product to your wish list you must Sign In or Create an account

IWISTAO HIFI Mini Tube Amplifier 2x3W Class A Single-ended 6J1 Preamplifier 6P1 Power Stage Amplifiers Desktop Audio 110~240V Model No: WVTAS-6P1 This is a mini class A single-ended tube amplifier, which use tube 6J1 as a preamplifier, and tube 6P1 as a power stage. Especially, it adopted switching power supply...

$133.90

Click to refer to Shipping Rate

Wooden Panel

Silver Panel

Black Panel

Quantity:

Subtotal :$133.90

Important: Import duties, taxes and other customs related charges all are not included into shipping cost . Buyers bear all responsibility for all extra charges incurred (if any).

IWISTAO HIFI Mini Tube Amplifier 2x3W Class A Single-ended 6J1 Preamplifier 6P1 Power Stage Amplifiers Desktop Audio 110~240V

Model No: WVTAS-6P1

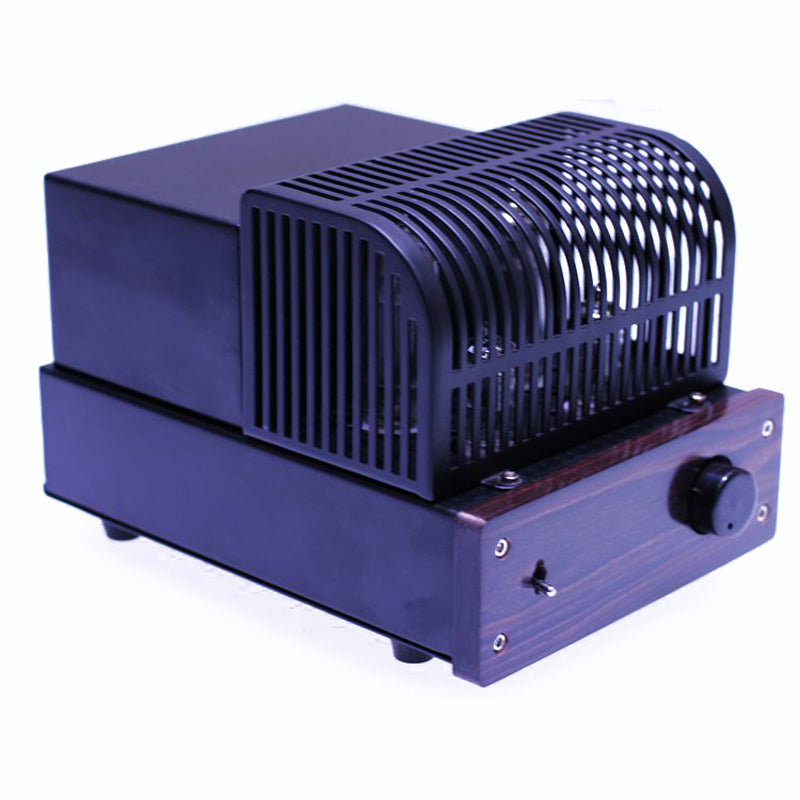

This is a mini class A single-ended tube amplifier, which use tube 6J1 as a preamplifier, and tube 6P1 as a power stage. Especially, it adopted switching power supply instead of power transformer to reduce the weight and volume of tube amplifier, also adopted boost circuitry to provide high voltage, its background noise is mostly between 0.5 mV to 1 mV, when volume potentiometer close to the minimum, and your ear touch to the speaker, and hum is not likely to be heard.

IWISTAO HIFI 6P1 Mini Tube Amplifier 2x3W Class A Single-ended plus Tone Adjustment Preamp from IWISTAO HIFI MINIMART1 on Vimeo.

And please use high quality signal audio cable to connect the amplifier, or play hifi audio sourcing like as CD, lossless signals (APE, FLCA, WVA), or connect DAC, you will get high quality performance.

Silver Panel

Black Panel

Wooden Panel

Specifications

1. Rated Power: 3WX2

2. Input voltage: 0.3mV (RMS)

3. Frequency response: 20Hz-20KHz

4. Impedance: 4 ohms / 8 ohms

5. Input impedance: 100k Ohms

6. SNR: 90dB (A)

7. Total harmonic distortion: 2% (1W)

8. Operating voltage: 110V ~ 240V

9. Size (W * D * H): 200mm X 145mm X 130mm

10. Vacuum tubes: 6J1 X 2, 6P1X2

11. Color: white/black panelblack casing

12. Weight: 3KG

13. Accessories

Power cord x 1

3.5mm to 2 RCA converter x 1
