IWISTAO 3-6.5 Inch Full Range Empty Speaker Cabinet Kits Labyrinth Structure High-density Fibreboard for Tube Amp





Model No: WHFSC-FR3T65LEC



This product is shipped with kits if you select  "xxxx--default hole" option, and require that buyers are able to polish and assemble, and have strong practical ability. Polished and assembled may be more trouble, if you don’t have the abilities of above and problem-solving, please don’t buy it, thanks!



Speaker cabinet adopt double back guide pipe, and sound quality is relatively pure. Its panel can be replaced if you have spares. This speaker cabinet kits support 3—6.5 inches full range speaker.



If you need to buy the finished product and customized holes, please select the related Kit button + Assembly Fee button + Customized Holes button, put them together into the same cart.



2. If you need cut a customized hole in the panel, please click the Customized Hole Button that you want to buy, and send us your specifications to sales@iwistao.com



All materials of the kit:

  1. The board is E1 high-density board (not medium-density board),
  2. The screw is 8.8 grade industrial blackened, and cutting from M6 thread,
  3. The lock nut is made of Q235 carbon steel (commonly known as A3 steel) with nickel plated on the surface,
  4. The panel fixing nut is made of carbon steel and colored zinc plated (inline),
  5. Panel fixing bolts are grade 8.8 blackened M5 hexagon socket head bolts.

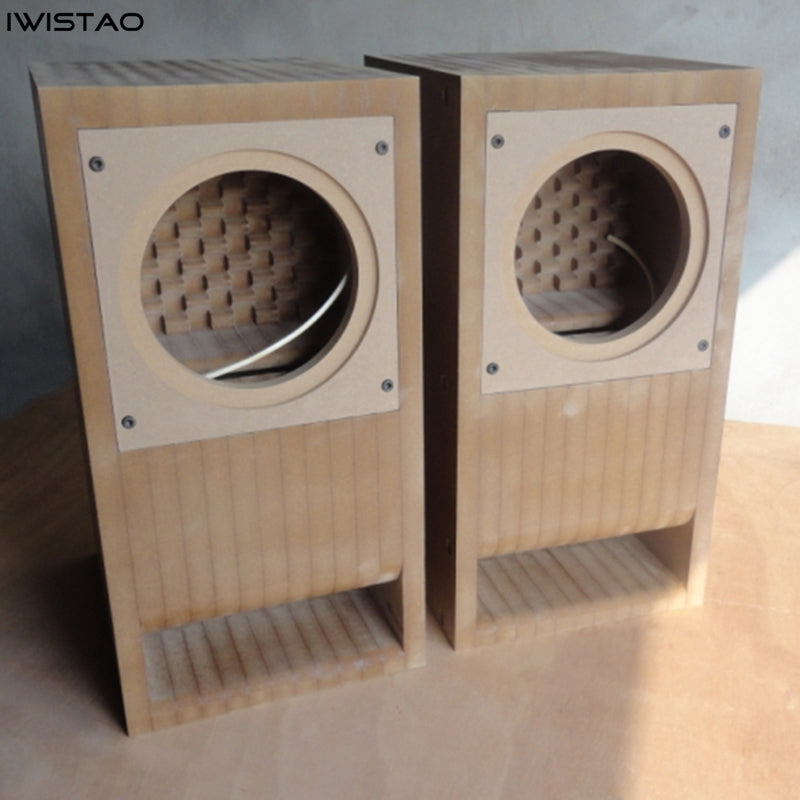

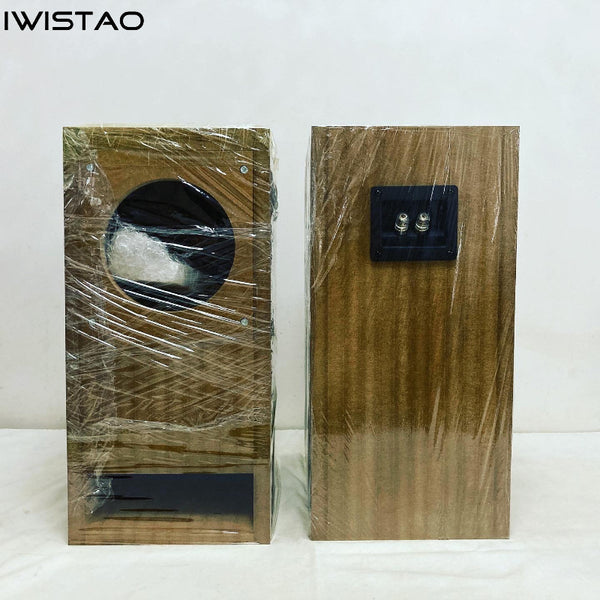

Finished Product

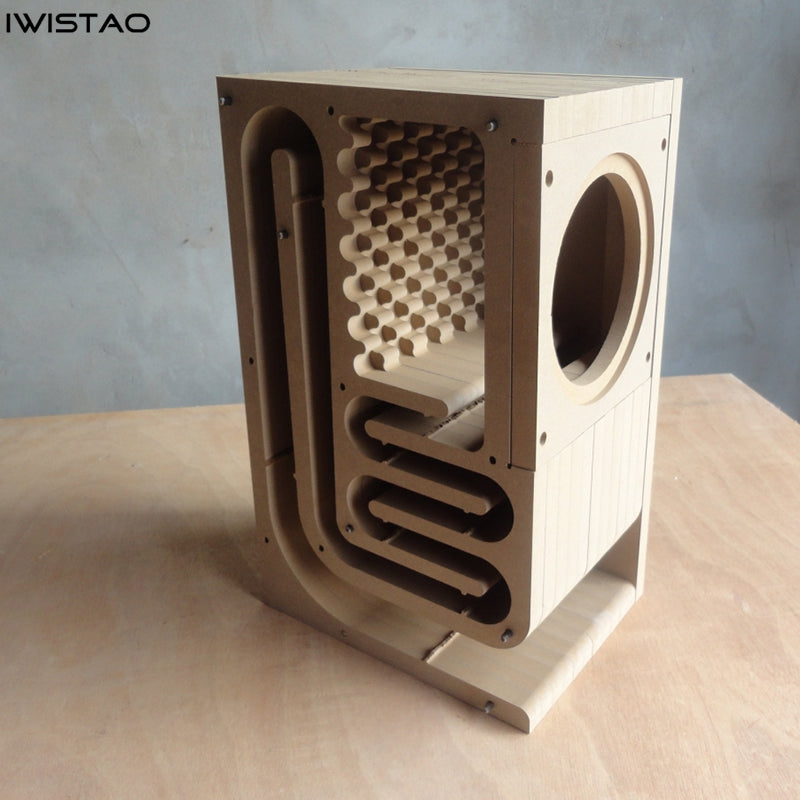

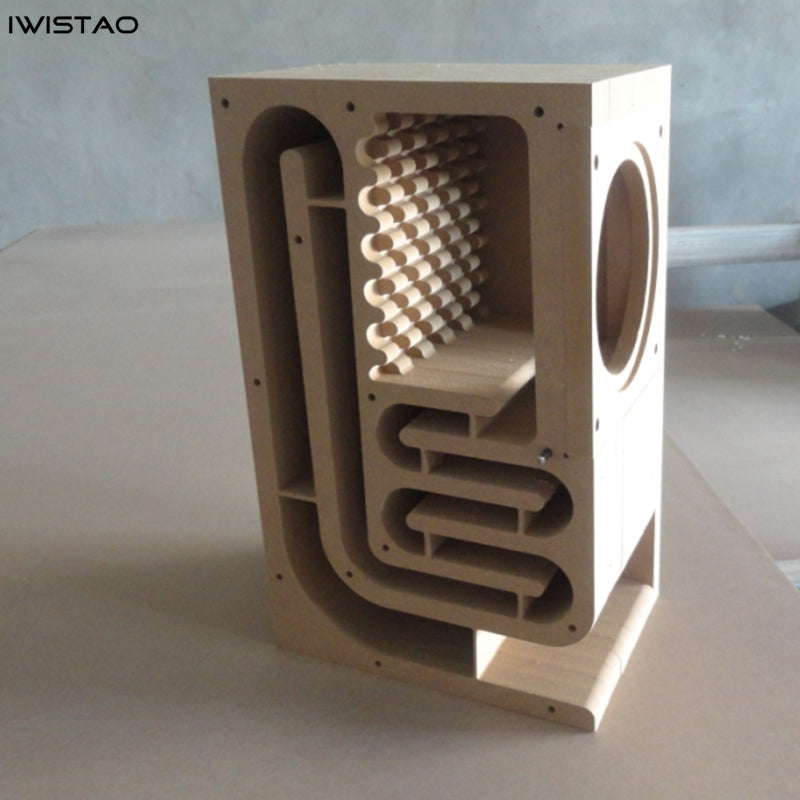

Insider Structure



Specifications

  1. Dimensions: height 450 mm, upper depth 260 mm, lower depth 280 mm, elevation angle 2.5 degrees,
  2. Width according to the size taken:
1). 3 inches=162mm,
2). 4 inches=162mm,
3). 4.5 inch=180mm,
4). 5 inch=198mm,
5). 6.5 inch=216mm,
6). 6.5 inch above =234mm
  1. The buyer provides the detailed size of the speaker unit. The default through hole as below  is drilled if the detailed size of the speaker unit aren't provided.
 1).The panels of 3 inch speaker default hole is a through hole as diameter 72mm
 2).The panels of 4 inch speaker default hole is a through hole as diameter 94mm
 3).The panels of 5 inch speaker default hole is a through hole as diameter 122mm
4). The panels of 6.5 inch speaker default hole is a through hole as diameter 144mm


Shipping list:

  1. Two panels in the box (Drill the holes according to the speaker unit size provided by the buyer or default holes)
  2. Splint x 8 to16 pieces (according to the cabinet size taken)
  3. Reinforcing rib splint x 2 pieces (intermediate strengthening effect)
  4. Side plate x 4 pieces (8 carbon steel nuts embedded)
  5. 4 side panels
  6. M6 bolts x 26 (length according to the size of the cabinet)
  7. M5*30 hexagon socket panel fixing bolt x 8
  8. 52 pcs M6 pairs of lock nuts



Assembly steps:

  1. Firstly, please check whether the delivery is complete and place them separately.



  1. Saw the inner rib (waste) from the splint sheet (using a hacksaw blade), and polish the remaining burrs (using a chisel, file or wood sandpaper).

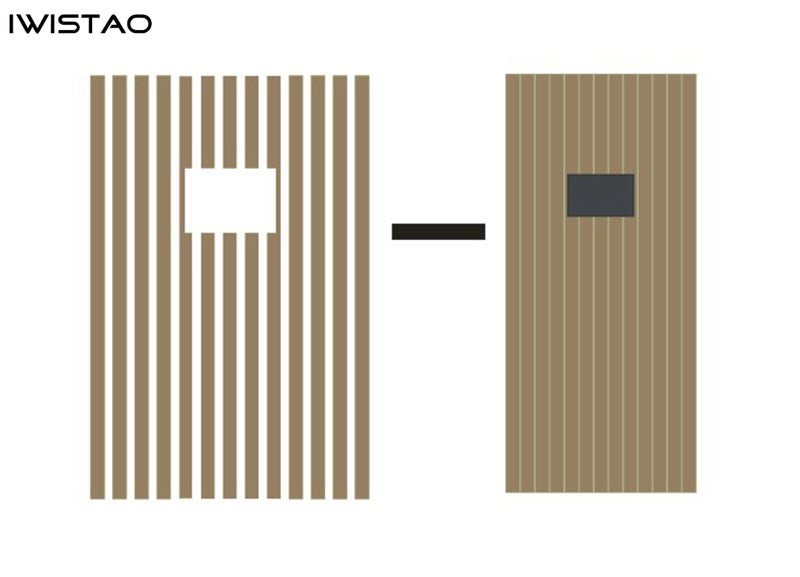

  1. Install the terminal (drill the M9 hole on the clip, drill the appropriate hole for the self-provided terminal), and prepare the welding line to be no shorter than 1.4 meters. And soldered to the terminal for use. If you install the junction box, follow the steps below to cut the junction box hole: Arrange all the splints neatly in the order of assembly, use a pencil to draw a frame of width 75mm/height 54mm (the size of the junction box of our shop) on the back of the appropriate position, and then press each piece Saw it by scribing, the diagram is as follows)



  1. Place them in floating-point staggered order (the top side plate will not be placed temporarily), then put on the bolts, and do not put on the screw first. (Place the clip plates one by one in order, straighten out the lines, and place the reinforcement plate in the middle as much as possible. Do not put the last side plate, and then insert the screw rod. The first and second screws need to be slow. Slowly align the sheet insert, and then it is easy to insert it after it is aligned)



  1. Start to assemble the lock. (There is no need to apply glue. For the solid wood side panels, apply glue on the laminated surface of the solid wood planks.)



  1. After assembling, polish the outside of the speaker.



  1. Install the panel and solder the speaker wire.


Note: The high-density surface is smooth, seamless laminated without glue, glue also has a thickness of multi-layer stack will increase a few millimeters that lead to the panel will become small, screw holes will not be reached. At the same time, please avoid moisture.

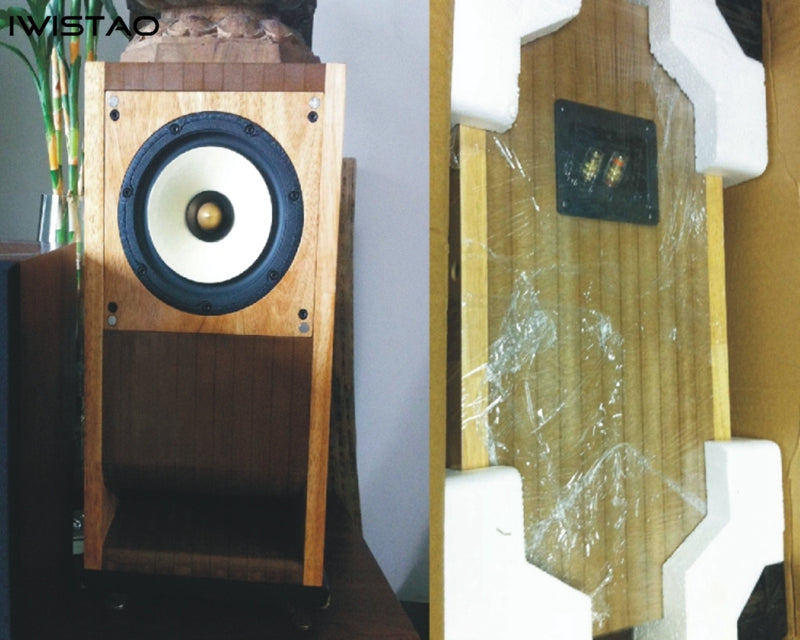

 Applications

(The photos only for your information, doesn't include any speaker unit)



-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

The information below only for your information, it is assembly step for model WHFSC-K2T4.



1. Please check if the shipments are completed, and placed separately firstly.



WHFSC-K2T4(PL)



WHFSC-K2T4(p3l)



2. Use a steel saw blade (or a saw) to cut the inner ribs (waste) from the plywood sheet down, or rip them off, then use a chisel, rasp or sanding wood it that left over burrs.

WHFSC-K2T4(pr11l)



WHFSC-K2T4(pr1l)



3. Install the connecting wire terminal (If there are not holes, please drill hole to fit terminals), prepare to soldering cables are not shorter than 55 cm, and soldering it to the terminal with spare.



WHFSC-K2T4(A18L)



4. Start assembling them with. Black hex bolts, lock nuts

WHFSC-K2T4(A4l)

5. After assembled, polish and smooth the external surface.



6. Install the panel, and soldering the cables to speaker units.

WHFSC-K2T4(A21)
