IWISTAO HIFI Empty Speaker Cabinet Finished Labyrinth Structure Oak Wood for Full Range

46 In stock

Empty Wooden Cabinets

IWISTAO HIFI Speaker Empty Cabinet Finished Labyrinth Structure with Oak Wood for 2.5—4 Inches Full Range Speaker Unit Model No: WHFSC-FR4WLC   Speaker cabinet adopt double back guide pipe, its return passage measured 1.6 meters, and sound quality is relatively pure. Its panel can be replaced if you have spares. There are...
$169.90 $69.90
Save $9.00
Click to refer to Shipping Rate
Type
+
-
$69.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

IWISTAO HIFI Speaker Empty Cabinet Finished Labyrinth Structure with Oak Wood for 2.5—4 Inches Full Range Speaker Unit

Model No: WHFSC-FR4WLC



Speaker cabinet adopt double back guide pipe, its return passage measured 1.6 meters, and sound quality is relatively pure. Its panel can be replaced if you have spares. There are 2 size cabinet, one is for 3 inched full range speaker unit, the other is for 4 inches one.

All  Material: plate is oak wook;

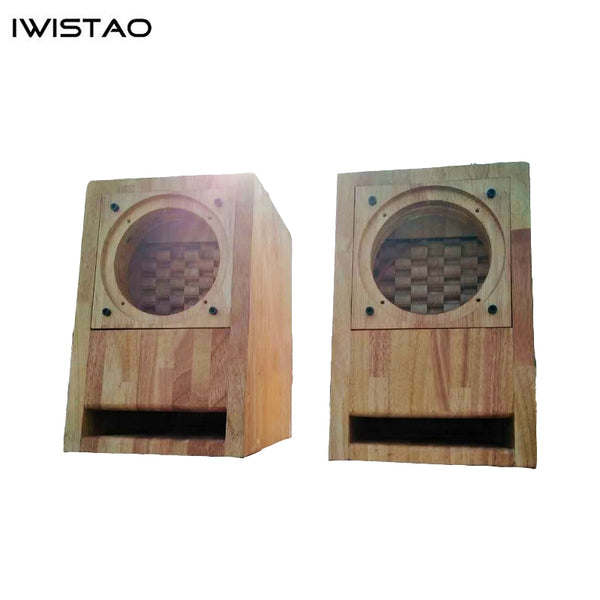

WHFSC-FR4WLC(XM)22lWHFSC-FR4WLC(XM)8l

WHFSC-FR4WLC(XM)21l

Features

1. The thickness of the front baffle is 15mm, which ensures that it is fixed to the panel and is firm and reduces resonance

2. The wave body structure is adopted in the cavity to effectively prevent the sound waves from forming standing waves

3. The channel of the labyrinth speaker adopts an involute design, and the channel cross-section height is gradually increased from 12mm to 18mm, further amplifying the low frequency.

4. Use 19mm thick base to increase the weight and reduce the resonance of the speaker.



Specifications

1. Material: oak solid wood.

2. 3 inches cabinet (W*H*D): 120mm*202mm*170mm, weight: 5.5kg

3. 4 inches cabinet (W*H*D): 162mm*260mm*212mm, Weight: 8.5kg

4. Panel: 2pcs (According to the buyer speaker parameters to cut holes, buyers please leave the details for cutting-holes, otherwise as default size of the hole)

 A. 3 inches through hole 75mm as default.

(Hole diameter range: 70~75mm, can't drill the hole diameter is out of range)

B.  4 inches through hole 100mm as default.

(Hole diameter range: 90~100mm, can't drill the hole diameter is out of range)

If the countersunk holes are cut, the error will be 1mm based on your drawing.



The photos are after installed speaker units

WHFSC-FR4WLC(XM)6lWHFSC-FR4WLC(XM)4lWHFSC-FR4WLC(XM)30
WHFSC-FR4WLC(XM)1l

Matched 4 inches full range speaker unit

HIFI 4 Inches Full Range Speaker Unit 4 Ohms 60Hz-23KHz 92dB Max Japanese AKISUI4 For Monitor Speakers Tube Amplifier DIY Audio





4 Inches HIFI Full Range Speaker Unit Rated Power 12W for Desktop Audio Book Shelf Labyrinth Speakers Tube Amplifier Circle DIY
