IWISTAO HIFI Digital Player MCU STM32F407ZET6 Decoder AK4495SEQ Play WAV FLAC APE MP3

20 In stock

HIFI Digtal Player

IWISTAO HIFI digital player MCU STM32F407ZET6 Decoder AK4495SEQ Play WAV FLAC APE MP3 Model No: WDP-AK4495SEQ   This is a HIFI digital player that uses the original MCU chip STM32F407ZET6 and the decoding chip AK4495SEQ to support playback of lossless WAV, FLAC, APE, and MP3 format audio files.    ...
$249.90 $219.90
Save $30.00
Click to refer to Shipping Rate
Type
+
-
$219.90
Wishlist

To add this product to your wish list you must Sign In or Create an account

IWISTAO HIFI digital player MCU STM32F407ZET6 Decoder AK4495SEQ Play WAV FLAC APE MP3


Model No: WDP-AK4495SEQ

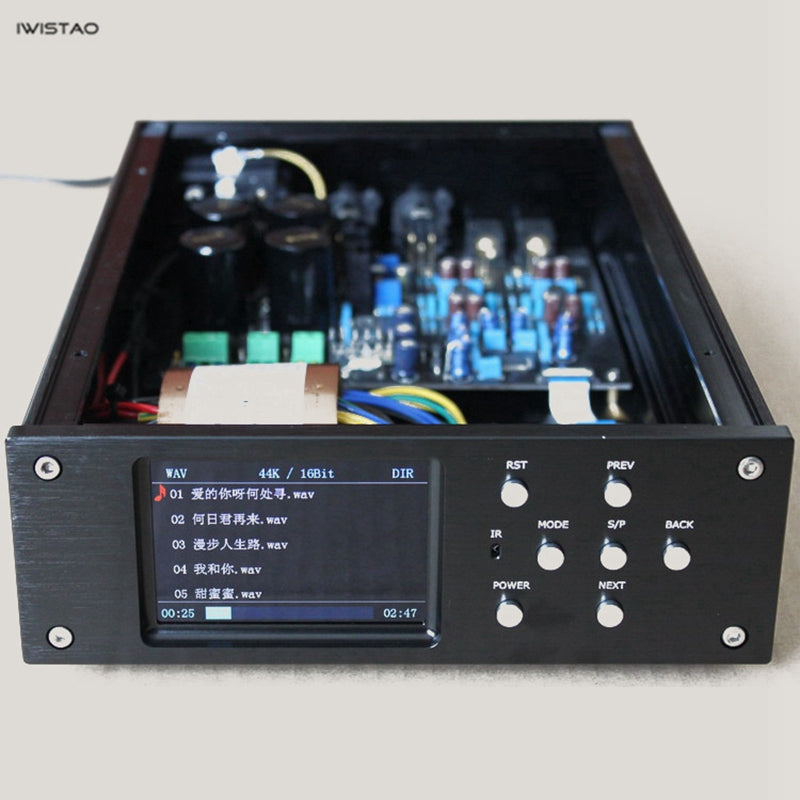

This is a HIFI digital player that uses the original MCU chip STM32F407ZET6 and the decoding chip AK4495SEQ to support playback of lossless WAV, FLAC, APE, and MP3 format audio files.


WDP-AK4495S(800X800)lWDP-AK4495S(800X800)l1WDP-AK4495S(800X800)l2WDP-AK4495S(800X800)l3WDP-AK4495S(800X800)l4



Features

1. Using original STM32F407ZET6 and AK4495SEQ

2. Main filter electrolytic capacitor adopts 4pcs  6800/35V NOVER one, and the bridge rectifier circuit is adopted to ensure strong and continuous power supporting.

3. Resistor uses high-precision chip resistor and metal film copper foot resistor to ensure a good signal-to-noise ratio of the whole machine.

4. Its PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current. First-class PCB quality.

5. LCD uses 3.5FT color LCD screen.

6. Only support one level subdirectory, maximum support 64GB memory card (memory card must be CLASS6 and above, must be HC card)

7. This unit adopts all-aluminum chassis, and the surface of the chassis is all processed by wire drawing oxidation coloring process!

8. Use R30 transformer with wrapped in copper to prevent interference.

WDP-AK4495S(800X800)5WDP-AK4495S(800X800)6



Specification

1. Working Voltage: AC220V or 110V (need be preorder)

2. Output method:
  RCA analog output;
  XLR balanced output

3. Supported formats:
  WAVE: 44K-192KHz 16Bit-24Bit;
  FLAC: 44K-96KHz 16Bit-24Bit;
  APE: 44KHz, 16Bit (version 3.97-3.99, compression ratio 3000 or less (unsupported version and compression ratio can be converted in the computer with format conversion tool, without loss of sound quality)).

4. MP3: Full support .

5. CUE: Supports association of WAVE and FLAC songs. How to use: Put CUE files and audio files in the same folder.

6. Weight: 3K

7. Size: 310mm *203mm *70mm

8. SD card:
 Standard Version: No SD card

     Advanced Version: 32G SD Card

9. Accessories
  Power cord x 1
  Remote control x 1 (excluding battery)



Applications
